Home > Computer Products > Speaker & Sound Box > Wireless Speaker > PCI Card Global TV System With Silicon---TV7130

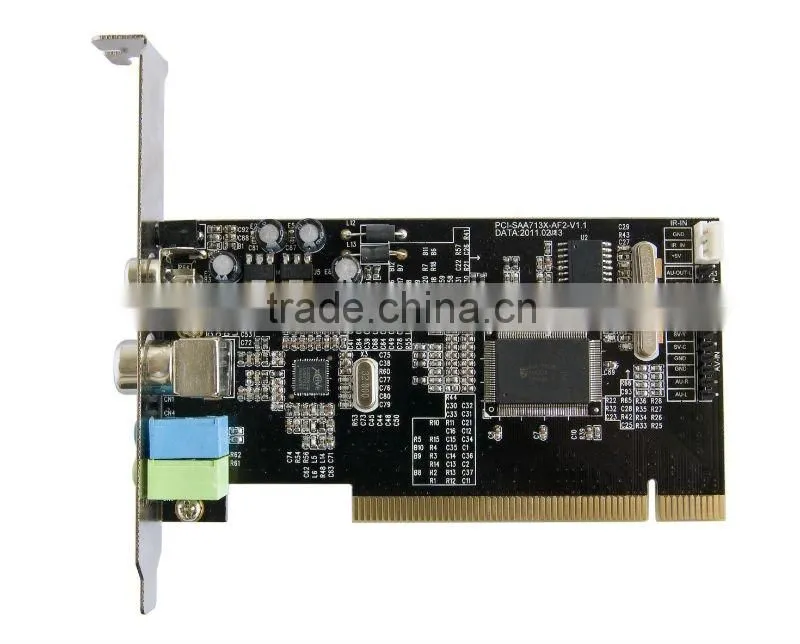

PCI Card Global TV System With Silicon---TV7130

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

TV7130

Contact Supplier Request Quote Chat Now

Newsky Tech. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number TV7130

Specifications

Support AV/S-Video input
capable of watching tv/Tape/VCD/DVD/camcorder
Infrared Remote Control
Full Channel Scan &Auto Scan

Product Name:PCI TV Tuner card --- TV7130

Features:

*Support AV/S-Video input, capable of watching video of TV/Video Tape/VCD/DVD/camcorder through PC

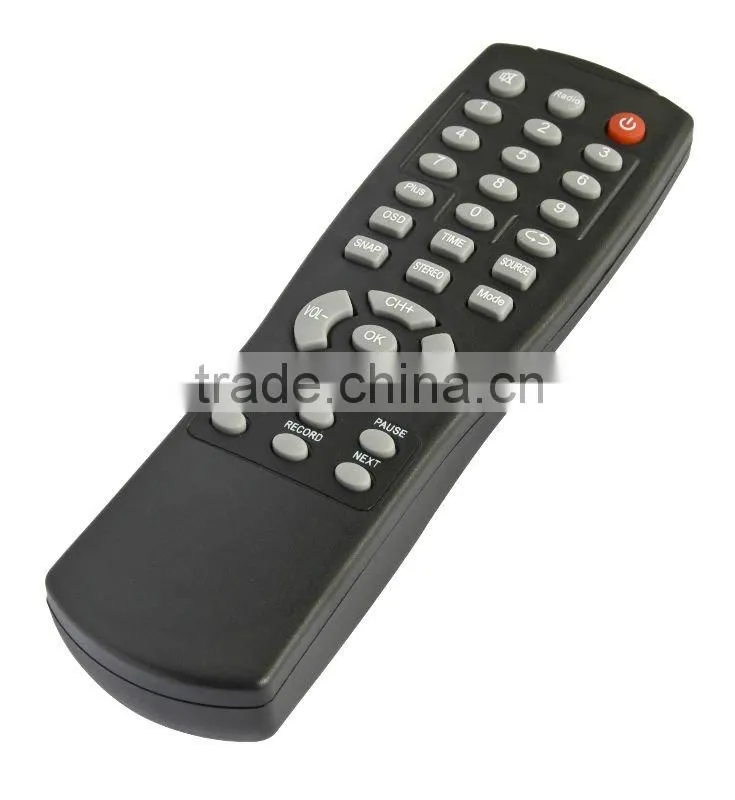

*With Infrared Remote Control to watch/record TV
*Full Channel Scan & Auto Scan
*It support Global Tv System—Silicon Tuner
*Resolution up to 720X576 for PAL, 720X480 for NTSC
*Free zoom-in/out image window or full-screen TV program
*Screen display channel & volume
*Scheduled Recordings and Time Shift functions
*Encode MPEG-1, MPEG-2, MPEG-4 file, create and burn VCD/DVD
*Support video play, image browse function
*Support Still Image Snapshots, and save to BMP, JPG files in PC
*Compatible with WINDOWS 98/SE/ME/2000/XP/Vista

Product Specification

TV7130TV Capture Card uses PHILIPS 7130 chipset. You can watch, listen to and record TV programs (up to 136 channels) on PC. The powerful attached software enables you to set and rename your favorite channels. Moreover, the remote control makes watching TV through PC more convenient. Through TV7130, you can transfer and save the video captured from VCR, camcorder, PC camera or other video sources into hard disk, and burn it to VCD/SVCD/DVD by a CD burner. TV7130supports snapshot, you can capture pictures to create your digital photo album, and share your works with your friends and family via Internet.
Performance Parameter
Physical Character Length*Width*Height
122mm×96mm×22mm
Net Weight: 130g
Total package weight: 530g
Package size: 248×184×50 (mm)

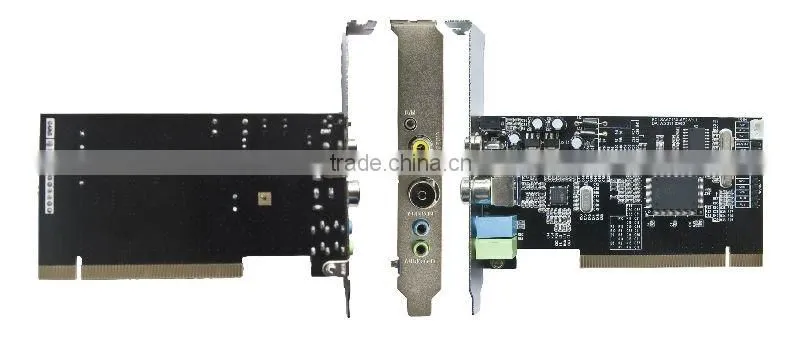

I/O Interface I interface:
*Antenna - 75Ohm (UHF /VHF) TV Antenna RF jack
*AV (Composite) 75 Ohm RCA jack
*S-Video 4-pin Mini-DIP
*AUDIO IN 3.5mm STEREO Audio input port
O interface:
AUDIO OUT 3.5mm audio cable to sound card line-in
Voltage Working
Temperature 0 to 50°C
Power
Consumption Less than 3W Reserve
Temperature -10 to +60°C
Current RF
Reception
Range PAL-DK/I System
49.75MHZ—863.25MHZ
PAL-B/G-I System
48.25MHZ—863.25MHZ
NTSC-M System:
55.25MHZ—801.25MHZ
TV System Support It support Global Tv System with Silicon Tuner

System Requirements *Main board with available PCI slot(v.2.1)
*Pentium®III500 MHz or faster (1.7G or higher recommended).
*Operation System: Windows 98/SE/ME/2000/XP/Vista
*PCI sound card or chipset
*64MB of system memory (256MB or higher recommended)
*DirectX 9.0 version or higher installed
*5400 rpm IDE hard disk (7200 rpm IDE hard disk recommended)
*16M display card or higher
*CD-ROM

Package *TV7130 TV Capture Card               1pc
*User’s Manual                         1pc
*Drive & Application CD                 1pc
*Remote Control                        1pc
*Stereo Audio Cable                     1pc
*Infrared Receiver                      1pc
*AAA Battery                          2pcs
