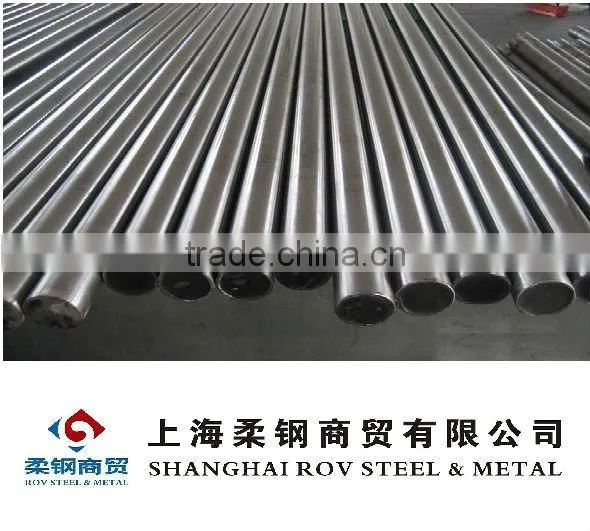

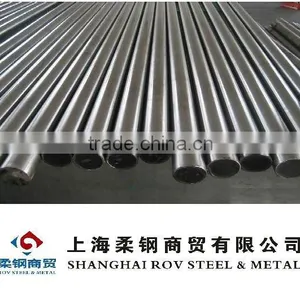

Help Center1.1545 Tool Die Steel
Related Products
Specifications
Standard :DINDimensions :Bar / plate / pipe / cable
Material :die steel
Application: Tool Steel Bar
1) carbon tool steel.
2) good hardness after hot treatment
3) preserving fine grain structure when quenching
Standard |
Chemical composition |
C |
Si |
Mn |
P |
S |
|
GB/T 1298-86 |
% |
0.95/ 1.04 |
≤ 0.35 |
≤ 0.40 |
≤ 0.035 |
≤ 0.030 |
Features :
1) carbon tool steel.
2) good hardness after hot treatment
3) preserving fine grain structure when quenching
Applications :
For making all sorts of tools, such as cross-cut hand saw, hand band saw, machinery band saw, twist drill, wire drawing die, stamping die, catch plate, grater, machinist's scraper, cold heading die, cold-trimming die, etc.
annealing |
500-600°C air cooling or furnace cooling, HB≤197 |
|
650-700°C air cooling or furnace cooling, HB≤197 |
hot treatment quench |
770-790°C oil cooling HRC : 62-64 |
|
790-810°C air cooling HRC : 62-64 |
backfire |
140-160°C 160-180°C 180-200°C 200-250°C |
HRC |
62-64 60-62 59-61 56-60 |
Related Products:1.2080,1.2436,1.2601,1.2379,1.2419,1.2108,1.2510,1.2363,1.3343,1.2344,
1.2343,1.2367,1.2713,1.2767,1.2714,1.2365,1.2885,1.2581,1.4031,1.2738,
1.2311,1.0503,1.0540,1.0535,1.1525,1.1545,1.2735,1.2764,1.4021,1.2361,
1.2316,1.4122,1.2327,1.2550,1.2782,1.2787
