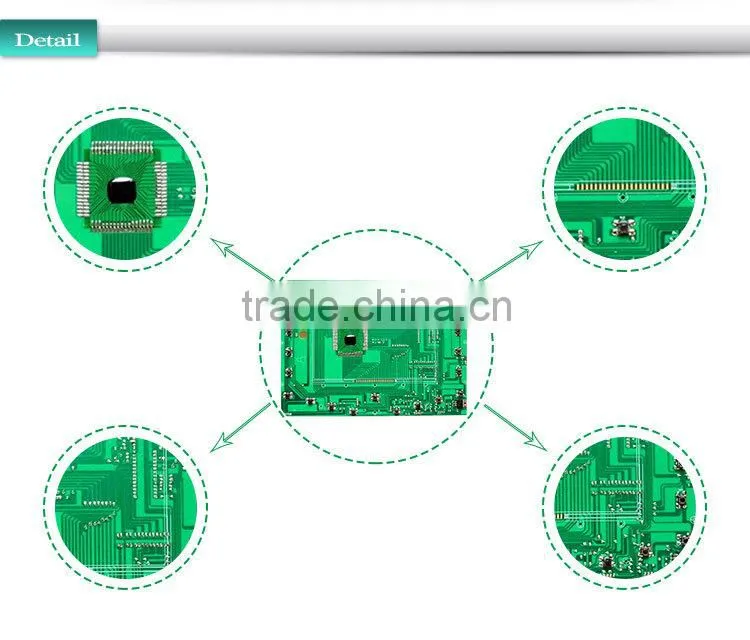

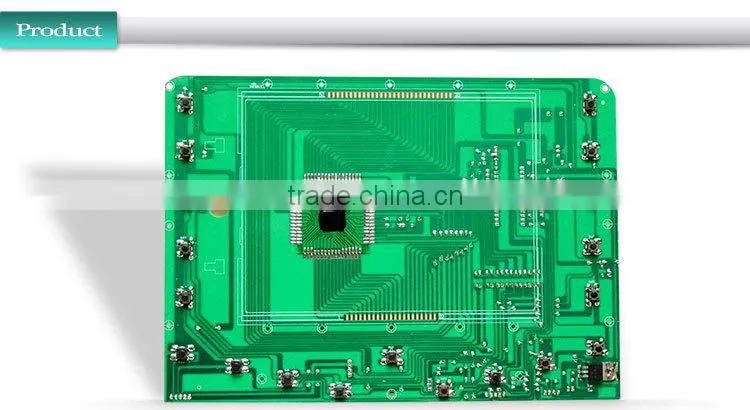

universal remote control board
- 5000000 Set / Sets per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YQ-022 | Model Number: | YQ-022WZ |
Base Material: | FR4 | Copper Thickness: | 1OZ | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.5mm | Min. Line Width: | 3mil | Min. Line Spacing: | 3mil |
Surface Finishing: | HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersio |
Product Description
power control panel:
1. Energy saving: heating efficiency can reach above 98%, under the same conditions, specific resistance type heating energy-saving 30-75%, preheating time 2/3.
2. Environmental protection: zero emission, no pollution, no noise, can significantly lower the temperature of the environment.
3. Long life: using electromagnetic heating coil continuous operating temperature is only 100 °C, service life of up to 10-15 years.

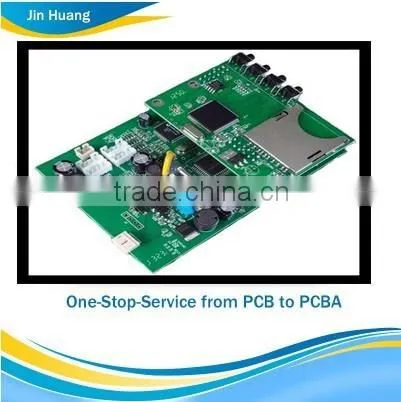

Circuit board assembly fabrication:
One-stop pcb assemblies service, We can offer 1 to 12 Layer PCB fabrication, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
Needed:
1. PCB gerber file.
2. BOM LIST FOR PCB ASSEMBLY.
3. Send us your sample pcb board or PCBA.
4. Tell us your idea.
Multi-layer PCB Specification providing you one-stop pcb assemblies service. |
1 | Layer | 1-12 layer |
2 | Material | FR-1,FR-2,FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free, |
3 | Board thickness | 0.2mm-3.5mm |
4 | Max panel size | 630mm*520mm |
5 | Min.drilled hole size | 0.5mm |
6 | Min.line width | 0.075mm(3mil) |
7 | Min.line spaceing | 0.075mm(3mil) |
8 | Surface finish/treatment | HASL/HASL lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
9 | Copper thickness | 0.5oz Min.,5.0oz Max |
10 | Solder mask color | green/black/white/red/blue/yellow |
11 | Inner packing | Vaccum packing,Plastic bag |
12 | Outer packing | standard carton paking |
13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
14 | Certificate | CE,UL,ISO9001,ISO14001,ISO/TS16949,ROHS |
15 | profiling punching | Routing,V-CUT,Beveling |
Quote requirement:
1.Gerber files of the bare PC board
2.BOM file (Components List): manufacturer’s part number, type of part, packaging type, component
locations and quantity
3.Dimensional specification for non-standard components
4.Assembly drawing
5.Final test procedures (if applicable)
6.in order to shorten the lead time, please advise us alternative parts (same specifications but
different brand name)
7.Estimated order quantity
8.If possible, please send prototype/sample board/photo to us for further reference
.We also offer:
1.Contract Manufacturing
2.Engineering Services
3.PCB Design & Assembly
4.Product Design
5.Prototyping
.applications of our products:
1.Computers and relevant products: Movable power board, U Disk, network interface, panel
computer, cameral, wire-less mouse.
2.Home appliance: smart projector/digital cameral, high-frequency board. Recorder and repeater
board, auto audio equipment main board and control board.
3.Wire-less communication: mobile board,. GPS/ direction record board, wireless telephone main
board, intercom main board.
4.LED Lighting: LED drive power, LED light panel, LED light belt.
5.We have been specializing in the production of control units for commercial equipment such as
industrial measuring and testing equipment, monitory and inspection systems, computers, home
appliance such as air conditioners,refrigerators, solar-power systems, water-heat and automotives
