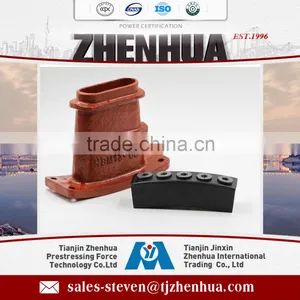

Post Tension Anchorage Head Wedges Hot Sale
US$ 0.1 - 10
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
Zhenhua
Model Number:
YJM15/1
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Post Tension Anchorage Head Wedges Concrete AnchorUS$ 0.1 - 10MOQ: 100 Sets -
Post Tension Anchorage Head Wedges Concrete ConstructionUS$ 0.1 - 10MOQ: 100 Sets
-
Post Tension Prestressed Anchorage For Steel StrandUS$ 0.1 - 10MOQ: 100 Sets
-
Pocket FormerUS$ 0.1 - 10MOQ: 100 Sets
-
Post-Tension Anchor Head And WedgesUS$ 0.1 - 10MOQ: 100 Sets
Place of Origin
Tianjin, China
Brand Name
Zhenhua
Model Number
YJM15/1
Type
Concrete Anchor
Material
Steel
Diameter
15.24mm/12.7mm
Capacity
2000MPA
Standard
ISO
Detailed Images
Size
Prestressed Force Anchorage
YJM Tensioning System is a complated, independent building measure researched, and developed by TianJin ZhenHua Prestressing Force Technology Co. Ltd. It has been widely adopted by modern construction,especially used in pre-tension or post-tension for concrete constructions and building materials.
YM Series products are composed of tensioning anchor,holding anchor,connectors.It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
Parameter of YJM15 Anchorage
|
SPC |
STRAND NO |
ANCHOR BOLSTER A×B×φC |
CORRUGATED PIPE INNER DIAMETER φD |
ANCHORAGE φE×F |
SPIRAL BAR |
ANCHOR BOLSTER |
Stressing Jack |
|||
| φG×φH×1 | CIRCLE |
INSTALL HOLE |
INSTALL HOLE |
|||||||
| YJM15-1 YJM13-1 |
1 | φ46×45 φ43×45 |
DC250Q YDC250Q |
|||||||
| YJM15-2 YJM13-2 |
2 | φ83×45 φ73×45 |
YCW100B YCW100B |
|||||||
| YJM15-3 YJM13-3 |
3 | φ135×85×66 φ130×80×63 |
φ50 φ50 |
φ87×45 φ78×45 |
φ130×φ10×50 φ130×φ10×50 |
4 4 |
φ112.5 φ110 |
M10 | YCW100B YCW100B |
|
| YJM15-4 YJM13-4 |
4 | φ136×100×66 φ136×95×68 |
φ55 φ50 |
φ93×50 φ87×48 |
φ140×φ10×50 φ136×φ10×50 |
4 4 |
φ115 φ115 |
M10 | YCW100B YCW100B |
|
| YJM15-5 YJM13-5 |
5 | φ146×120×71 φ146×120×73 |
φ55 φ50 |
φ103×50 φ97×48 |
φ152×φ10×50 φ146×φ10×50 |
4 4 |
φ126 φ126 |
M10 | YCW150B YCW100B |
|
| YJM15-6 YJM13-6 |
6 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×48 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW150B YCW100B |
|
| YJM15-7 YJM13-7 |
7 | φ164×135×80 φ155×120×77.5 |
φ70 φ60 |
φ117×50 φ107×50 |
φ170×φ12×50 φ155×φ12×50 |
4 4 |
φ140 φ135 |
M10 | YCW250B YCW150B |
|
| YJM15-8 YJM13-8 |
8 | φ176×150×85 φ167×140×81 |
φ80 φ70 |
φ127×52 φ117×50 |
φ180×φ14×50 φ167×φ12×50 |
5 4 |
φ153 φ146 |
M10 | YCW250B YCW150B |
|
| YJM15-9 YJM13-9 |
9 | φ185×150×90 φ175×150×88 |
φ80 φ70 |
φ137×52 φ127×50 |
φ180×φ14×50 φ175×φ12×50 |
5 4 |
φ162 φ154 |
M10 | YCW250B YCW150B |
|
| YJM15-10 YJM13-10 |
10 | φ210×160×97.5 φ190×175×93 |
φ90 φ80 |
φ147×52 φ137×53 |
φ190×φ14×50 φ190×φ12×50 |
5 4 |
φ188 φ166 |
M10 | YCW250B YCW150B |
|
| YJM15-11 YJM13-11 |
11 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×53 |
φ190×φ14×50 φ196×φ14×50 |
5 4 |
φ180 φ166 |
M10 | YCW350B YCW150B |
|
| YJM15-12 YJM13-12 |
12 | φ210×187×99.5 φ196×185×96 |
φ90 φ80 |
φ157×54 φ147×55 |
φ190×φ14×50 φ196×φ12×50 |
5 5 |
φ185 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-13 YJM13-13 |
13 | φ220×216×105 φ196×205×96 |
φ90 φ80 |
φ157×62 φ147×55 |
φ190×φ14×50 φ196×φ14×50 |
5 5 |
φ190 φ176 |
M10 | YCW350B YCW250B |
|
| YJM15-14 YJM13-14 |
14 | φ234×252×110 φ206×230×103 |
φ90 φ90 |
φ167×62 φ157×57 |
φ240×φ14×50 φ206×φ14×50 |
6 5 |
φ200 φ186 |
M10 | YCW350B YCW250B |
|
| YJM15-15 YJM13-15 |
15 | φ234×252×110 φ216×230×108 |
φ90 φ90 |
φ167×65 φ167×60 |
φ240×φ16×60 φ216×φ14×50 |
6 5 |
φ200 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-16 YJM13-16 |
16 | φ244×286×115 φ220×270×108 |
φ90 φ90 |
φ177×65 φ167×62 |
φ240×φ16×60 φ220×φ16×60 |
6 5 |
φ210 φ196 |
M10 | YCW400B YCW250B |
|
| YJM15-17 YJM13-17 |
17 | φ258×320×116 φ230×300×111 |
φ90 φ90 |
φ187×70 φ177×62 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ218 φ206 |
M10 | YCW500B YCW250B |
|
| YJM15-18 YJM13-18 |
18 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×70 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M10 | YCW500B YCW350B |
|
| YJM15-19 YJM13-19 |
19 | φ234×252×110 φ216×230×108 |
φ100 φ90 |
φ187×73 φ177×65 |
φ240×φ16×60 φ230×φ16×60 |
6 5 |
φ228 φ206 |
M12 | YCW500B YCW350B |
|
