Specifications
1. Chocolate moulding machine
2. Model:Q113
3. Full automatic
4. For making various shapes of chocolate
5. CE ISO
Chocolate moulding machine
Application:

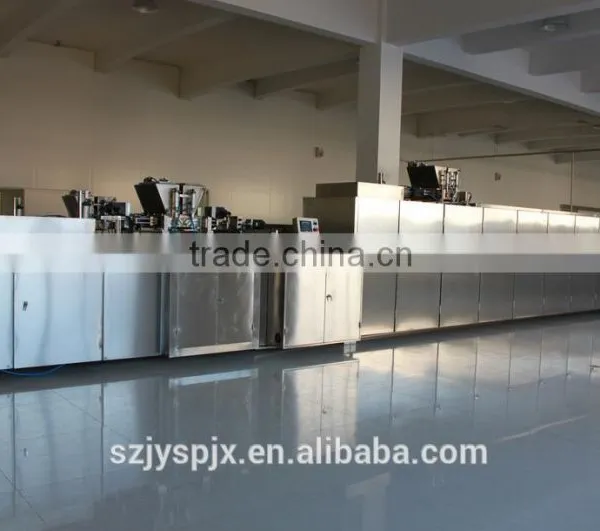

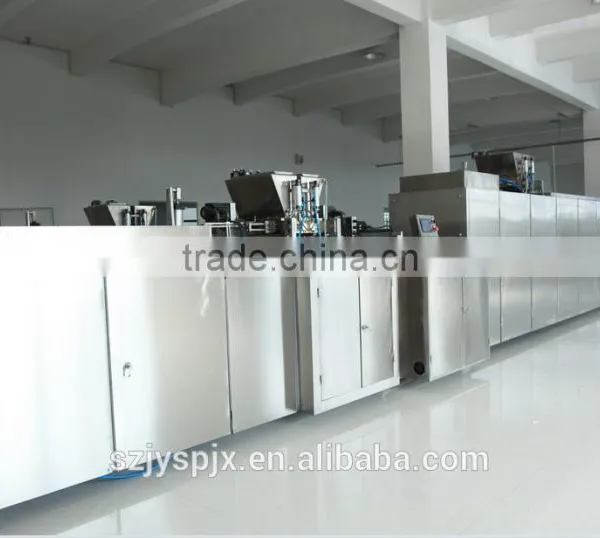

The chocolate moulding machine is for chocolate deposit forming. The whole process is fully automatic including depositing, mould plate vibrating, cooling, demoulding, conveying and plate heating. You can choose one head semi-automatic, one head, two heads or three heads moulding line for different products. The line is suitable for pure chocolate, center filled chocolate two colors chocolate, four colors chocolate, amber or agate chocolate, etc.
Technical Parameters:
Project Model |
Q110 |
Q111 |
Q112 |
Q113 |
Capacity (ton/class) |
0.5~1.5 |
0.8~2.5 |
0.8~2.5 |
0.8~2.5 |
Total power (lncluding freezer) |
9 |
21 |
23 |
28 |
Refrigeration quantity(kcal/hour) |
Don’t have |
1400 |
21000 |
21000 |
Mould plate size(mm) |
275×175×30 |
280×200×30 |
280×200×30 |
280×200×30 |
Mould plate quantity(m) |
270 |
270 |
380 |
420 |
Weight(kg) |
1000 |
4800 |
5800 |
6200 |
Outside dimensions(mm) |
3600×725×1560 |
16130×1050×1950 |
17070×1010×2350 |
18600×1200×2400 |
Details:
Introduction:
In 2003, we successfully got ISO9001-2000 certification. In May, 2006, we successfully gained the CE certificate for our chocolate manufacturing machines. Our products are sold well all over China as well as Britain, Italy, Russia, Belgium, Turkey, Spain, Israel, southeast Asia, Middle East, Australia, Malaysia, Indonesia and so on more than 50 countries and regions.
certification
THE FLOWCHART OF CHOCOLATE PROCESS
