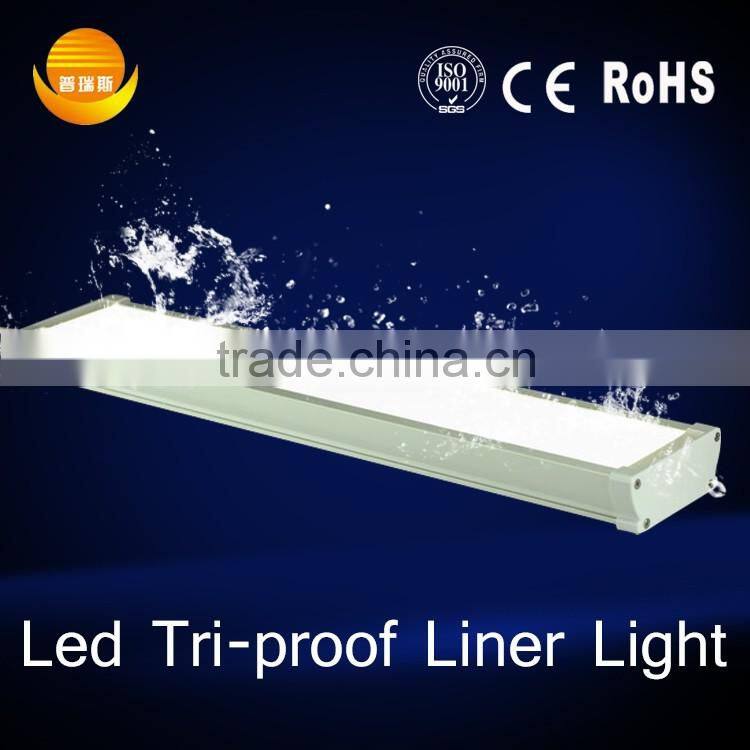

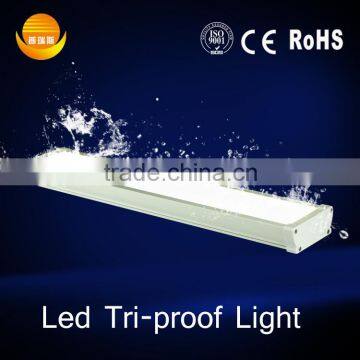

Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty

Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-1
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-2
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-3
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-4
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-5
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty thumbnail-6
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-1
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-2
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-3
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-4
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-5
Led Tri Proof Tube Light 1.2m 36w Waterproof Led Light With 3years Warranty photo-6
US$ 18.5 - 22 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Shandong Brightness Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2835
Warranty(Years) 3
Input Voltage(V) 85-265
Lamp Power(W) 36
Lamp Luminous Flux(lm) 3600
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Cool White
Working Temperature(℃) -40, 55
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP65
Certification CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name Brightness
Model Number Other, PM01L-36w
led tri proof tube light 1.2m 36w waterproof led light with 3years warranty
Product Description



Advantages:

•Wide input voltage rangeAC85-265V;

•High lumens 100LM/W, high level of dustproof and waterproof IP65.

•Streamline design, not easily stained with dust, dust free and easy maintenance

•Top-grade PVC body and stainless steel mounting clips guarantee excellent Corrosion Proof   performance.
•50% energy saving than traditional lighting.

•Best design for low LED light decay & long life time, working hours up to 50000 hours,3 years warranty.

•Strictly designed for waterproof, dust proof and corrosion proof performance

•Perfect heat dissipation and low operation temperature

•Extremely low maintenance, safety and cost aspect

•Can customized product:24V DC, infrared induction,emergency battery,according to the request custom-made, the light body without chip and driver



led tri proof tube light 1.2m 36w waterproof led light with 3years warranty



Item code



Power

Power Factor

Luminous Efficiency

Luminous

Flux

CRI

Operation Temperature

IP Rating

Life

Dimension(mm)

PM01L-36W

36W

0.96



100 lm/w

3600Lm

Ra>80

 -40℃-+55℃

IP65

50000H

1205*113*45

BC-L36 explosion

36W

0.96



100 lm/w

3600Lm

Ra>80

 -40℃-+55℃

IP65

50000H

1205*113*45

PM01L-18W

18w

0.96



100 lm/w

1800LM

Ra>80

-40℃-+55℃

IP65

50000H

607*113*45

PM01L-9w

9w

0.96



100lm/w

900lm

Ra>80

-40℃-+55℃

IP65

50000H

307*113*45



led tri proof tube light 1.2m 36w waterproof led light with 3years warrantyled tri proof tube light 1.2m 36w waterproof led light with 3years warranty



Specification

Power:

36w

Material:

PVC+PMMA

Type Of Chip:

2835 LED Chip

Brand Of Chip:

Epistar

Luminous:

3600 LM

Color Temperature:

2700~6500K

CRI:

Ra≥80

Beam Angle:

110°

Total Harmonic Distortion(THD):

<15%

PF:

>0.96

Working Life:

≥ 50000hours

Warranty:

3 years



Dimensions

Finishing Color:

White

Wire connection:

Brown;Blue

Shape:

Rectangle

Weight:

1.96 Kg

Size:

1205 x 113 x 45mm

Inner Box Size:

1pcs/inner box , 1290*135*55mm

Package Size:

Box size: 1320*290*265mm,8pcs/carton;



Work Environment

Input Voltage:

AC85-260V/50-60Hz

OperatingTemperature:

-40~+55℃



Application
Application

Used for subway station,factory,parking garage,tunnel,

basement,supermarket,restaurants,hospital,office,school, storages and other indoor public place etc.



led tri proof tube light 1.2m 36w waterproof led light with 3years warranty

led tri proof tube light 1.2m 36w waterproof led light with 3years warranty

led tri proof tube light 1.2m 36w waterproof led light with 3years warranty

1.PM01L-9w 300*113*45mm

1pc/Inner Box: 35*12*6.5cm
NW: 0.6kg     GW: 0.7kg

8pcs/Carton:330*290*265cm

 NW:4.5kg     GW:5.5kg

2.PM01L-18w 600*113*45mm

1pc/Inner Box: 65*12*6.5cm
NW: 1.1kg     GW: 1.3kg

8pcs/Carton:660*290*265cm

       NW:8.5kg       GW:10kg

3.PM01L-36w

1205*113*45mm

1pc/InnerBox:129*13.5*5.5cm
NW: 1.98kg      GW:2.23kg

8pcs/Carton:1320*290*265cm

       NW:16kg       GW:19kg



4.BC-L36W

1205*113*45mm

1pc/InnerBox:129*13.5*5.5cm
NW: 1.98kg      GW:2.23kg

8pcs/Carton:1320*290*265cm

       NW:16kg       GW:19kg
