Wanlida active electric harmonic filter
Wanlida 690V Active power filter has no need of 400V/690V transformer, our 690V Active power filter adopted traction level IGBT module which can be connected with 690V harmonic source directly.

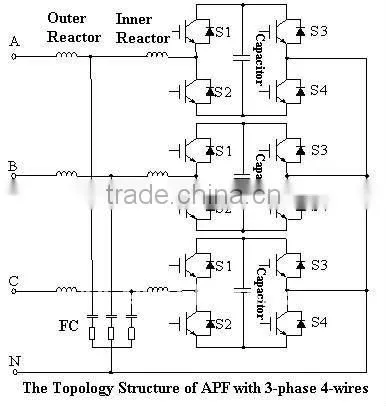

1. Topology structure
- The main topology structure is three-phase H-bridge star connection, modularized power components are easy to maintenance and replace.
- Power modules adopt force air cooling, fans are made in Germany.
- The control system adopts Spartan3adsp FPGA of Xilinx.
2. Technical Parameters
WLD-APF |
3Wires |
4Wires |
|
Rated compensation current |
100A~600A |
50A~600A |
|
|
Input |
Working voltage (V) |
400V (-20%~+15%) |
400V (-20%~+15%) |
690V (-20%~+15%) | |||
Working frequency (Hz) |
50/60 |
50/60 |
|
|
Performance Index |
Filtering ability |
THDI<3% (Rated Power) |
THDI<3% (Rated Power) |
Filtering range |
2nd ~50th |
2nd ~50th |
|
Single harmonic compensation rate adjustment |
Can set compensation current for each harmonic |
Can set compensation current for each harmonic |
|
Instantaneous response time |
<100µs |
<100µs |
|
Fully response time |
<10ms |
<10ms |
|
Active power loss |
<3% (Rated Power) |
<3% (Rated Power) |
|
Three-phase unbalance correction |
Yes |
Yes |
|
Reactive power compensation |
Yes, can set power factor |
Yes, can set power factor |
|
Overload protection |
Current limit automatically at 100% rated output |
Current limit automatically at 100% rated output |
|
Switching frequency |
20KHz |
20KHz |
|
|
Display and Operation |
Display Interface |
5.7inch colorful touch screen |
5.7inch colorful touch screen |
Display State |
Current, voltage etc power grid parameters |
Current, voltage etc power grid parameters |
|
Communications |
Modbus, RS485, TCP/IP Ethnet |
Modbus, RS485, TCP/IP Ethnet |
|
I/O dry contactor |
5 output contactors, 4 input contactors (user-defined) |
5 output contactors, 4 input contactors (user-defined) |
|
|
Environment Temperature |
Environment temperature |
-10°C~+40°C. |
-10°C~+40°C. |
Storage temperature |
-40°C~+65°C. |
-40°C~+65°C. |
|
Humidity |
<95%, no condensation |
<95%, no condensation |
|
Altitude |
Below 1000m |
Below 1000m |
|
3. Key components and technical features

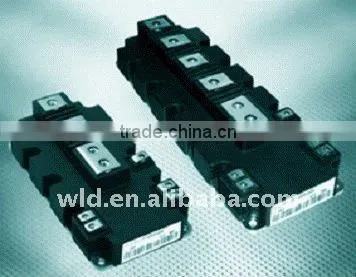

3.1 Traction level IGBT module
- Adopt international high-quality IGBT module.
- The fourth generation IGBT technology.
- Switching loss and conduction loss reduced dramatically.
- Temperature period and power period enhanced dramatically, the lifetime prolongs.
- Redundancy design of module ensures APF reliable and safety.
3.2 Power Unit
- It is the core circuits of APF, used for power conversion.
- Modularized design, all power units have same structure and electrical performances, they can be interchangeable.

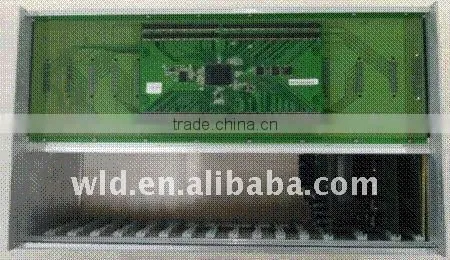

4. Fully digital control system
- Adopting Spartan3adsp FPGA chip of Xilinx.
- Calculate harmonic and reactive power in real time, and then realize dynamic track and compensation.
- The control system adopts modularized design.
