10W, 5V,AC-DC Power Module,Compact,fixed,Single Output,P-S Isolated

10W, 5V,AC-DC Power Module,Compact,fixed,Single Output,P-S Isolated thumbnail-1
10W, 5V,AC-DC Power Module,Compact,fixed,Single Output,P-S Isolated photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Zettler
Model Number:
ZP10S0300W
Contact Supplier Request Quote Chat Now
Xiamen Zettler Magnetics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Zettler
Model Number ZP10S0300W
Product Description

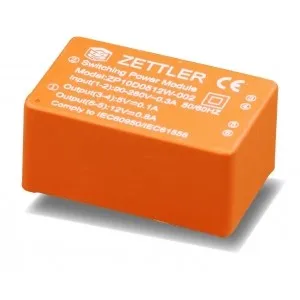

ZP10S0300W


10W regulated single output

Input range: 90-264vac 50/60Hz

Output range from 3.3V-24VDC

 Also can be customized

 Integrated EMC network,Compact Size,Conform to IEC and UL standard

High efficiency,Low temperature rise,Integrated perfect protection

Encapsulated Design Prevent dust and humidity,Low ripple and noise

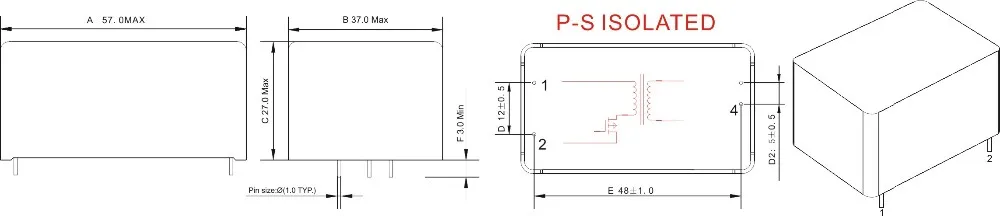

Outline Dimensions
Specification
Part number
Leakage Current
(Ma)
No load Loss
(W)
Output
Voltage
(VDC.)
Output
Current
(A)
Voltage
Accuracy
Ripple
Noise
Ambient
TEMP(℃)
Weight
ZP10S0300W
0.3mA
0.3W
3.3V
3
±3%
<50mV
<1% Vout
55
80g
ZP10S0500W
0.3mA
0.3W
5V
2
±3%
<50mV
<1% Vout
70
80g
ZP10S0600W
0.3mA
0.3W
6V
1.66
±3%
<50mV
<1% Vout
70
80g
ZP10S0700W
0.3mA
0.3W
7.5V
1.43
±3%
<50mV
<1% Vout
70
80g
ZP10S0800W
0.3mA
0.3W
8V
1.25
±3%
<50mV
<1% Vout
70
80g
ZP10S0900W
0.3mA
0.3W
9V
1.11
±3%
<50mV
<1% Vout
70
80g
ZP10S1000W
0.3mA
0.3W
10V
1
±3%
<50mV
<1% Vout
70
80g
ZP10S1200W
0.3mA
0.3W
12V
0.83
±3%
<50mV
<1% Vout
70
80g
ZP10S1500W
0.3mA
0.3W
15V
0.66
±3%
<50mV
<1% Vout
70
80g
ZP10S1800W
0.3mA
0.3W
18V
0.55
±3%
<50mV
<1% Vout
70
80g
ZP10S2400W
0.3mA
0.3W
24V
0.42
±3%
<50mV
<1% Vout
70
80g
Application

Power Management; Industrial.

Our Service

Free sample requested is available;

More than 10 years experience of converter industry;

Two Years Warranty ;

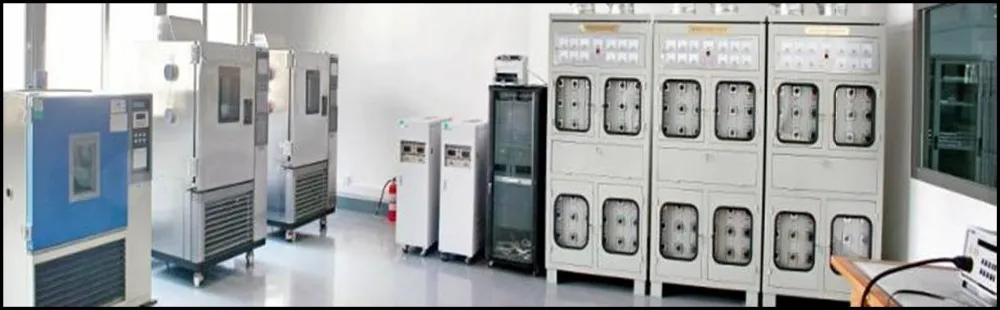

Professional R&D members, Strictly quality test,Advanced test instrument and Experienced workers ;
Customized products available (OEM, ODM).;
Fast prototype within a week;
Our Company

ZETTLER Magnetics

A diversified range of MAGNETICS products has long been an integral part of ZETTLER Group’s engineering and production competence. ZETTLER Magnetics offers a complete line of PCB and chassis-mounted Transformers, Toroids and Chokes.

Backed by automated and cost-efficient production lines, the division has the design and manufacturing capabilities to provide custom solutions that meet both high performance and attractive value expectations. Xiamen ZETTLER Magnetics production lines feature fully automated winders with “skeining” (pre-twisting) technology, precise tension controls, Auto Argon Arc welding/PLC control potting and advanced FIFO drying.

All ZETTLER Magnetics products are subject to stringent quality assurance and process controls, including ISO 9001. Our efficient logistics network is designed to ensure fast and cost-effective product delivery to customers around the world.


With a global network of operating companies established across many parts of the industrialized world, we are not only present in low cost manufacturing geographies, but also have the ability to provide customer focused solutions in local proximity to the industrial and commercial markets we serve.


The group’s worldwide leadership and its international and local teams are committed to important Core Values:

Highest design and engineering standards, uncompromising product quality, and strict quality control.

Competitive pricing – enabled by state-of-the-art production technology, cost effective manufacturing locations, production scale, and world-class supply chain management.

Highest standards in customer solutions, and highly responsive sales and distribution services.

Our Main Customer
Media;Bosch;Siemens;Emerson;Honywell;Tyco.....
