handheld access control rfid card reader writer usb long distance

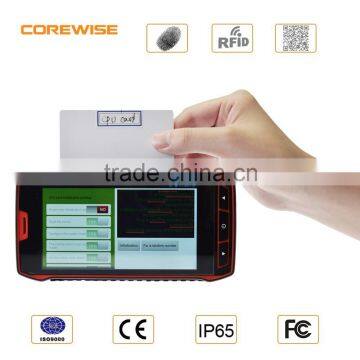

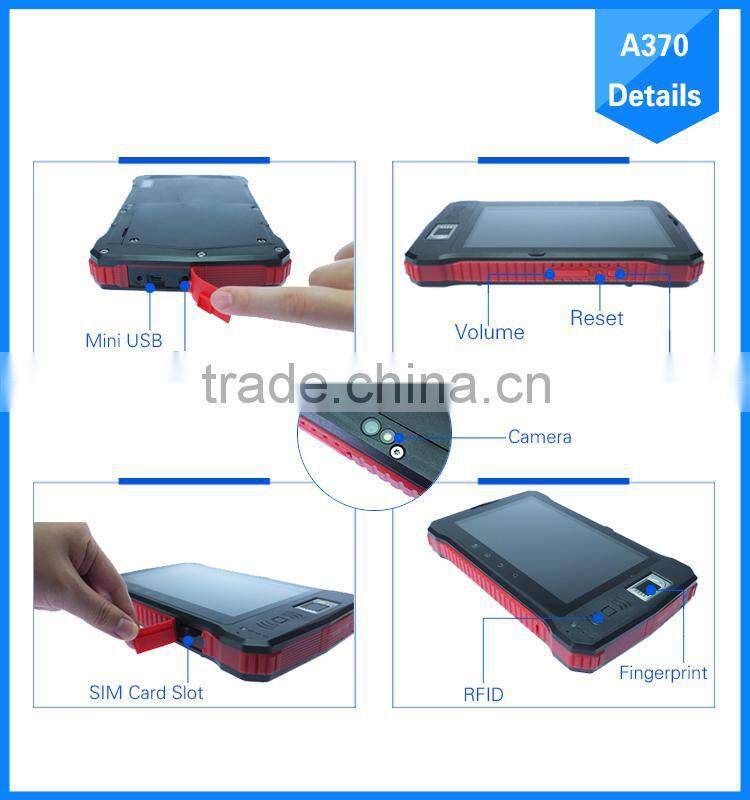

The handheld PDA A370 is mainly applied to the fields like public security,traffic police,civil affairs,bank,political science and law,taxation,industry and commerce,hotel,civil aviation,post office,securities,social security,etc. to realize the fingerprint verification,as well as RFID reading and writing and barcode scanning in food safety traceability,logistics delivery,store inventory,warehouse management,meeting ticketing,etc. It's the ideal handheld device which is widely used in indoor and outdoor environment.
(OEM/ODM)

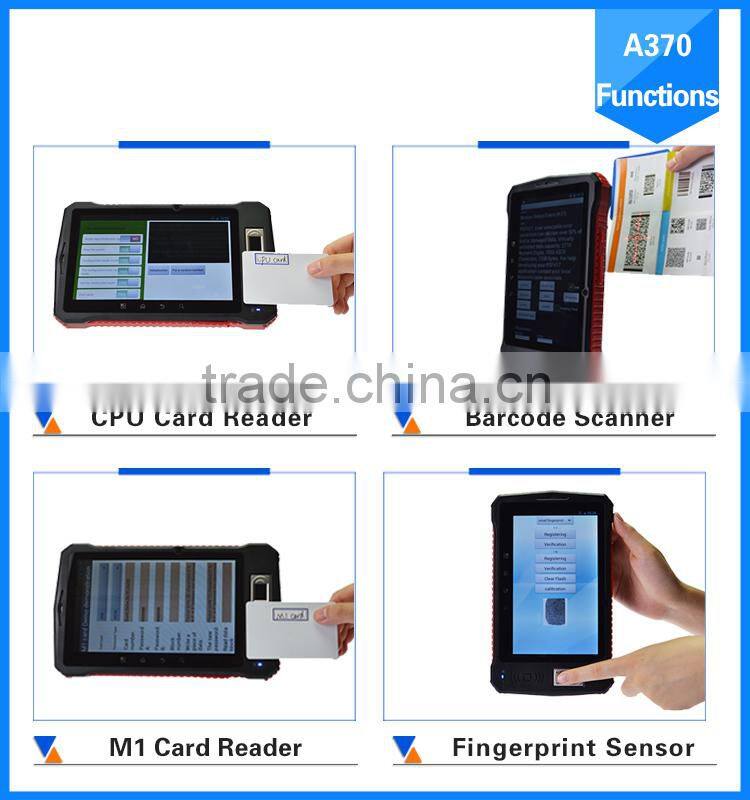

1: Industrial Android Tablet PC;
2: IP65 7" TFT Touch Screen ;
3: RFID HF/UHF Reader;(Optional)

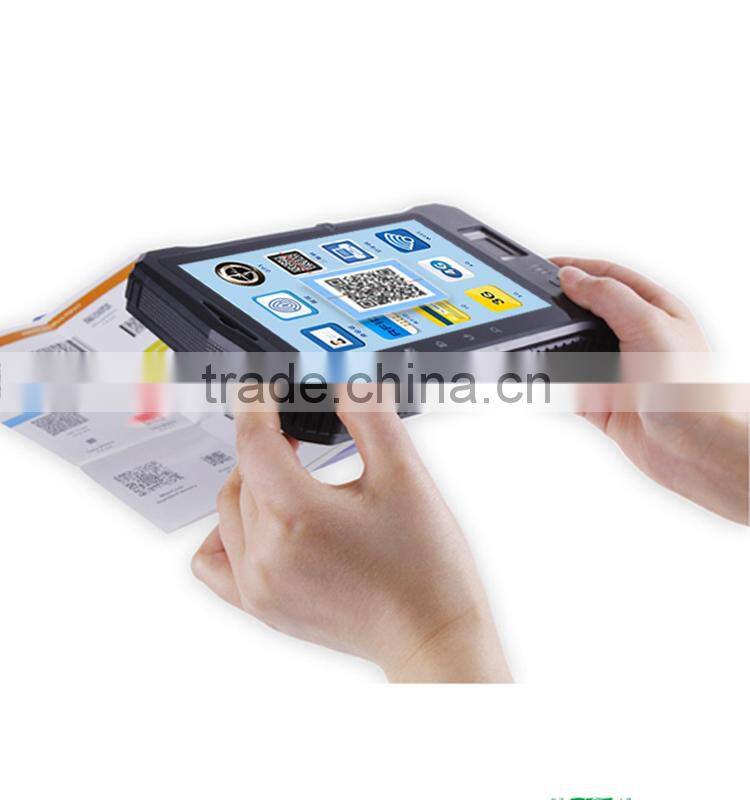

4: QR Code Scanner; (Optional)
5: Fingerprint Reader 508DPI; (Optional)--Large /Small Fingerprint Module(Default is small fingerprint)
Various combinations:
1: Single-module Combination:
Basic configuration+HF RFID;
Basic configuration+UHF RFID;
Basic configuration+Fingerprint sensor;
Basic configuration+1D/2D Barcode Scanner;
2: Dual- module Combination:
Basic configuration+Fingerprint sensor+HF RFID ;
Basic configuration+ Fingerprint sensor+UHF RFID;
Basic configuration+HF RFID+1D/2D Barcode Scanner;
Basic configuration+UHF RFID+1D/2D Barcode Scanner;
3: Tri- module Combination:
Basic configuration+Fingerprint sensor+HF RFID+1D/2D Barcode Scanner;
Basic configuration+Fingerprint sensor+UHF RFID+1D/2D Barcode Scanner;
| Design | Portable Data Collector 915MHz UHF RFID Reader 1D / 2D barcode scanner Industrial Smartphone 4G LTE Rugged Handheld PDA |
| Keys | Four |
| Dimensions | 220*132*26.5mm |
| Weight | 780g |
| OS | Android 6.0 |
| CPU | Qualcomm 8909 ,1.2G quad-core |
| Storage | 8GB ROM + 1GB RAM / 4GB ROM + 1GB RAM |
| Frequency 4G LTE | GSM: 850/900/1800/1900WCDMA:B1/B2/B5 |
| Screen | TFT LCD 7 inch, sunlight readable,resolution: 1024 x 600 |
| Touch type | Capacitive type |
| Camera | Rear 8.0M, LED, auto focus,flashlight |
| GPS | Supported, 10m |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | Integrated Bluetooth 2.1 |
Optional Function | |
| UHF RFID | 0~5 m ,ISO18000-6C supported |
| IC card | ISO/IEC 14443 A,ISO/IEC 14443 B,ISO 15693 |
| Fingerprint | Live, biometric fingerprint sensor/reader, capacitive touch screen, 508 DPI , <1s, |
| Barcode scanner | 1D: UPC/EAN,Bookland EAN,UCC Coupon Code, ISSN EAN Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39,Code 32,Code 93,Code 11,Interleaved 2of5,Discrete 2of5,Codabar ,MSI,Chinese 2of5,Matrix 2of5,Inverse 1D ,Korean 3of5,GS1 DataBar,Composite Codes 2D: PDF417,MicroPDF417,Data Matrix,Data Matrix Inverse,Maxicode,QR Code,Micro QR, QR Inverse,Aztec,Aztec Inverse,US Postnet,US Planet,US Postal,Japan Postal,Australian Postal,Netherlands KIX Code,USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
Other Parameters | |
| Storage | T-Flash/Micro SD card, up to 32 GB |
| Battery Pack | 3.7V ,8000mAh |
| Mini-USB | 10pin,support OTG,RJ45 converter,peripherals |
| Serial | UART or RS232 |
| AC/DC Adapter | DC 5V |
| Voice Call | Supported |
| Speaker | Supported |
| Earphone | Supported |
| Ruggedness | IP65 |
| Reliability | MTBF no less than 5000h |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -40℃~+70℃ |
| Working Humidity | <90%RH |
| Storage Humidity | 20% ~93%RH(40℃) |
| Atmospheric Pressure | 86Kpa~110Kpa |
Trade Terms: FOB CHINA INCOTERMS 2010 or other terms to be negotiated
Payment Terms: Confirmed sight and irrevocable L/C
Advace 100% T/T, Western Union, etc.

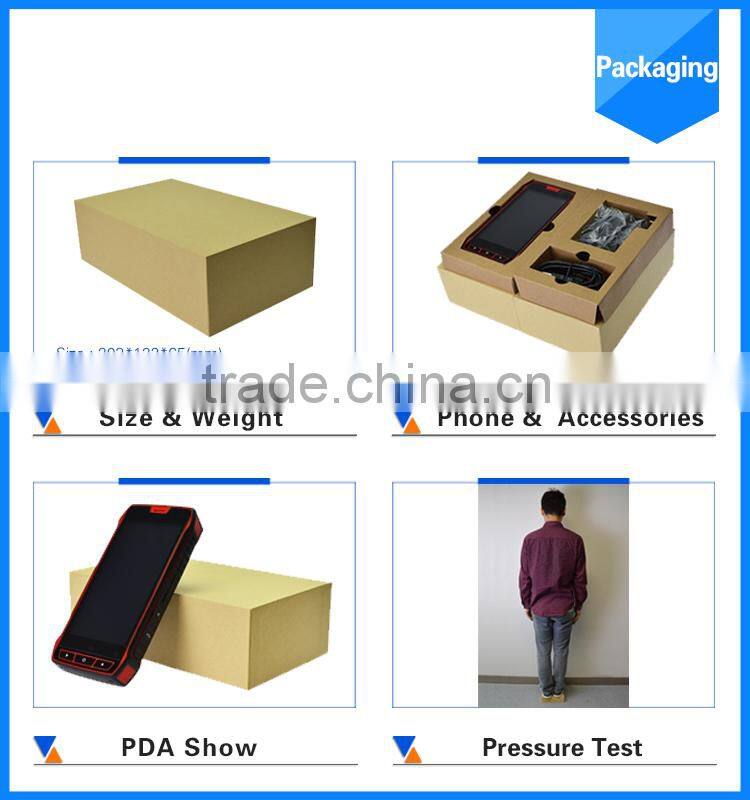

Packaging: Carton ,neutral packing, or customized packing as required
Delivery Lead Time: 1-100pcs within 7 working days upon receipt of your payment;
100-3000pcs within 35 working days upon receipt of payment.
(Shipping by DHL ,Fedex,UPS or TNT.)

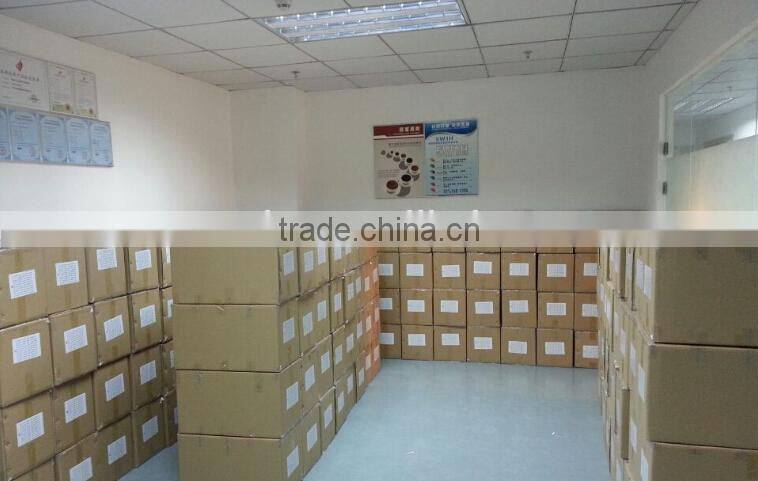

Corewise Work and Production Environment:
Our devices are semi finished product, which requests further development resorting to our SDK on basis of its hardware.
Normally the Buyer shall have technical development capability and technical support capability. Of course we will provdie online help/support if required.
We provide free SDK ,DEMO and the application development guide and development environment introduction,meanwhile,we will provide technical support in your development process.
(You are also welcome to commission this development job to us,we will charge it according to the development period)
Global agent is highly welcome!
20+ Patents, ISO9001, CE, ROHS, SGS, PC, SONCAP, CCC, IP65 certificates and credentials
Attn: | Joy Han |
Tel: | +86-025-86502981-8875 |
Fax: | +86-025-86223410 |
Phone: | +86-13851622121 |
QQ: |
|
Skype: | joyhan1 |
website: | http://corewise.en.china.cn/ |
Find Me |
We look forward to cooperating with any clients worldwide on a “win-win” basis for common development and mutual benefits.
