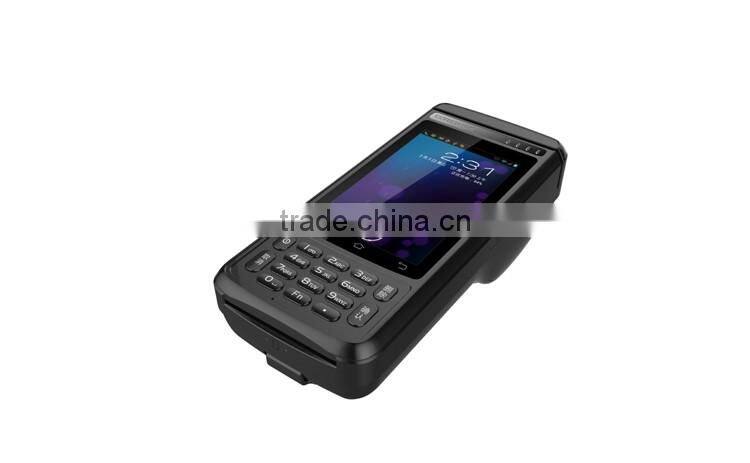

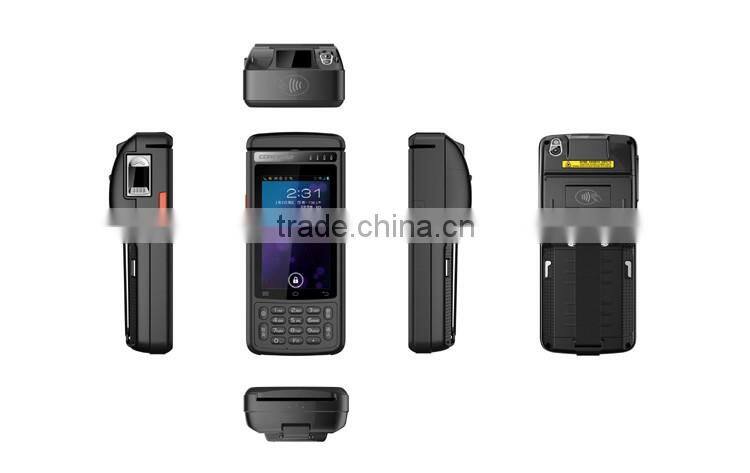

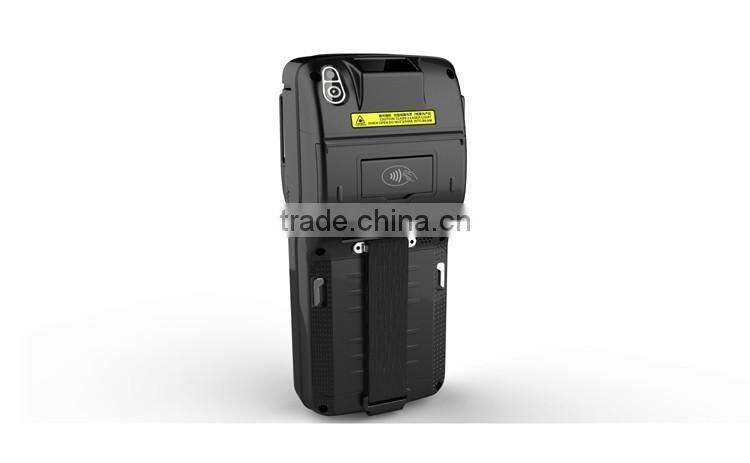

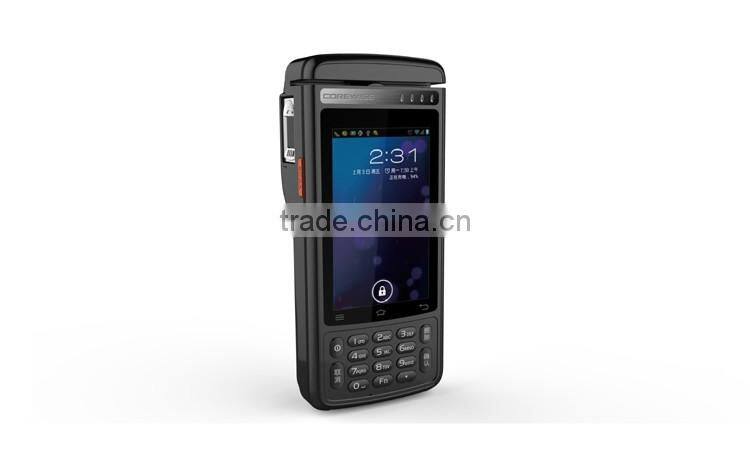

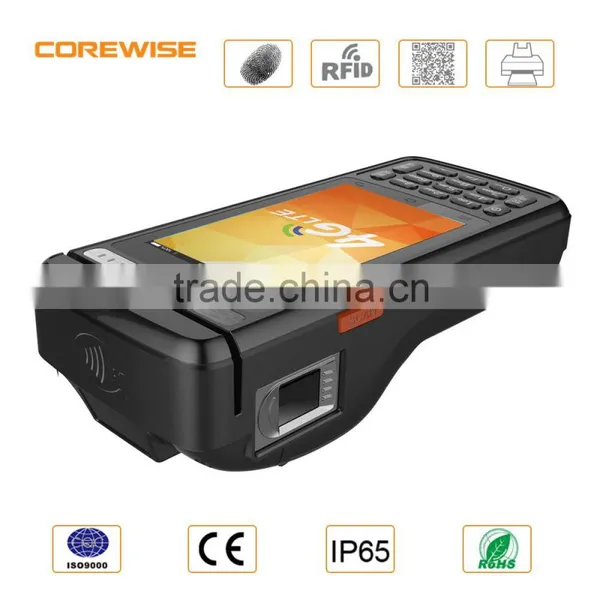

Newest 4G LTE 4" Quad core handheld touch screen pos system with thermal receipt printer
| Physical Parameter | |||
| Design | Bar phone | Keys | Seventeen |
| Dimensions (L*W*D) | 180mm*75mm*33/46mm | Weight | 420g |
| Function Parameter | |||
| Operating System | Android 5.1.1 | Display | 4 inch TFT LCD, Resolution 800*480 |
| CPU | Qualcomm 8909, 1.2Ghz, Quad Core | Panel | Capacitive touch screen |
| Memory and Extension | T-Flash/Micro SD Card, up to 32GB | Camera | Rear 5.0M Pixels, Auto Focus with Flash |
| GPS | GPS,GLONASS supported,10m | Networks | GSM: 850/900/1800/1900WCDMA:B1/B2/B5 CDMA: BC0 TDS-CDMA:B34/B39 TDD-LTE:B38/B39/B40/B41 FDD-LTE:B1/B3 |
| Bluetooth | BT4.0 LTE | ||
| WIFI | IEEE 802.11b/g/n | ||
| Memory | 1GB RAM,8GB ROM/1GB RAM ,4GB ROM | ||
| Optional Functions | |||
| Printer | 58mm,thermal printer,speed 40mm/s | Barcode Scanner |
1D Linear Scanner : UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes |
| MSR | SUPPORTED | ||
| Contactless IC Card | ISO/IEC 14443 Type A/B,ISO15693 | ||
| Contact IC Card |
Compatible with ISO 7816-3 and EMV4.2 payment standard |
2D Imager Scanner: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
|
| PSAM Card | 1 Psam card slots | ||
| Fingerprint Sensor | Capacitive Sensor, 508 DPI | ||
| Other Parameter | |||
| Battery Pack | 7.4V, 2300mAh ,MTBF no less than 10000 hours | Headphone | Supported, 3.5mm |
| Serial | UART or RS232 | Speaker | supported |
| USB | Mini USB OTG,USB 2.0 HS compatible | Voice Call | Supported |
| AC/DC Adapter | DC 9V/1.5 | ||
| User Environment | |||
| Operating Temp | -10℃ ~ 50℃ | Humidity | 5% ~ 95% (non condensing) |
| Storage Temp | -20℃ ~ 70℃ | Roller Drop Test | 500 times (1000 hits) |

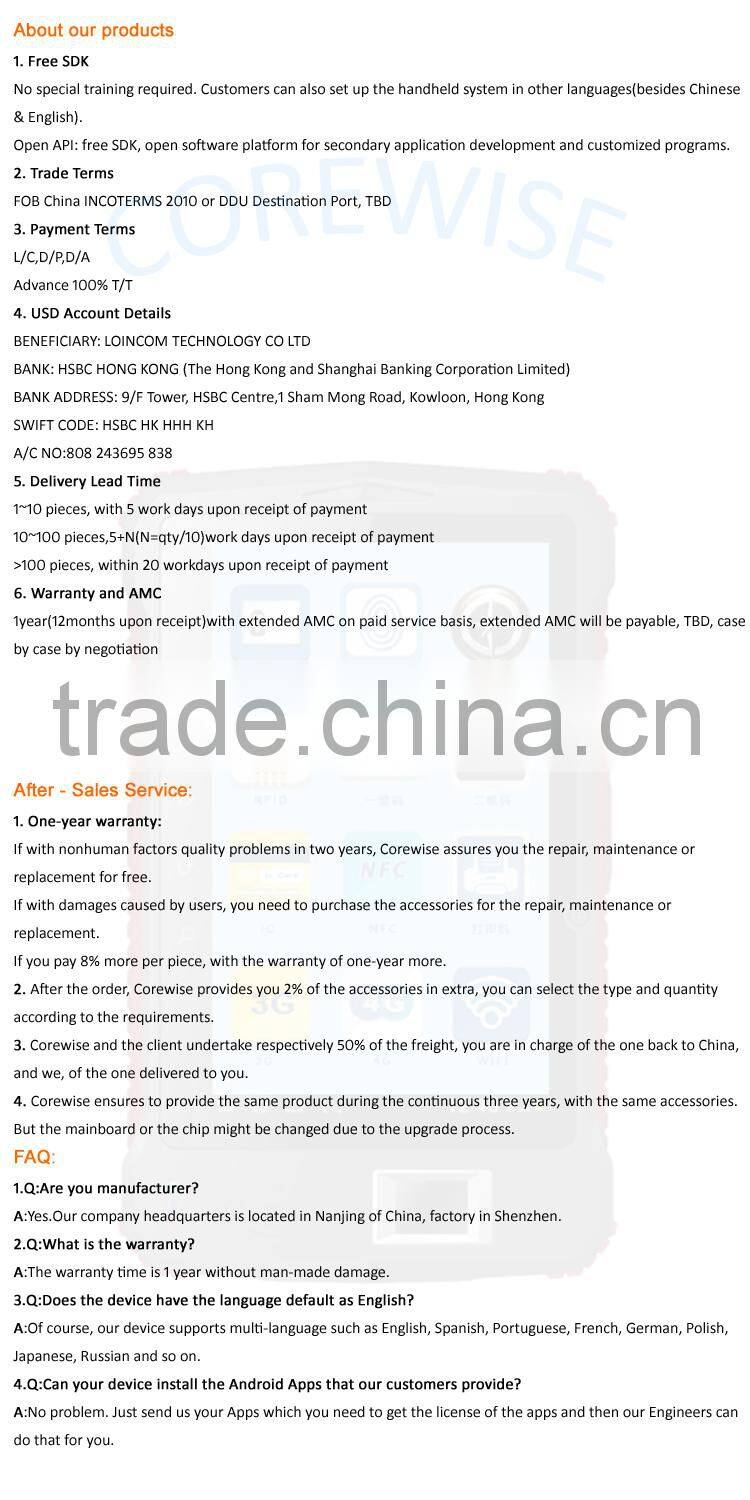

Trade Terms: FOB CHINA INCOTERMS 2010 or other terms to be negotiated
Payment Terms: Confirmed sight and irrevocable L/C
Advace 100% T/T, Western Union, etc.
Packaging: Carton ,neutral packing, or customized packing as required
Delivery Lead Time: 1-100pcs within 7 working days upon receipt of your payment;
100-3000pcs within 35 working days upon receipt of payment.
(Shipping by DHL ,Fedex,UPS or TNT.)
Corewise is a leading high-tech enterprise specialized in manufacturing various terminals around smart phones integrated with fingerprint sensors, RFID writers/readers (13.56 MHz for proximity or 840-960 MHz for long range), barcode scanners and thermal printers. These seemingly premature products are hardware ready for further developments to fit any needs using technologies of biometric fingerprint imaging/capturing, RFID & barcode scanning.
Our devices are semi-finished product, which requests further development resorting to our SDK on basis of its hardware.
Normally the Buyer shall have technical development capability and technical support capability. Of course we will provide
online help/support if required.
We provide free SDK ,DEMO and the application development guide and development environment introduction,
meanwhile,we will provide technical support in your development process.
(You are also welcome to commission this development job to us,we will charge it according to the development period)
