The first 4G LTE date collect industrial handheld android with NFC barcode scanner

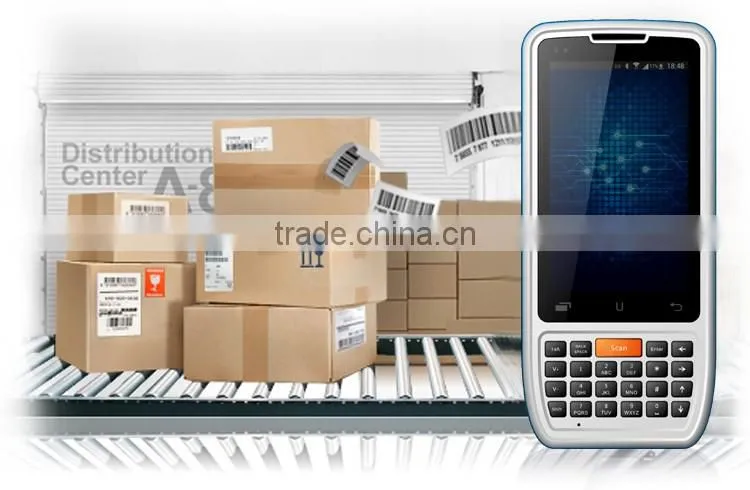

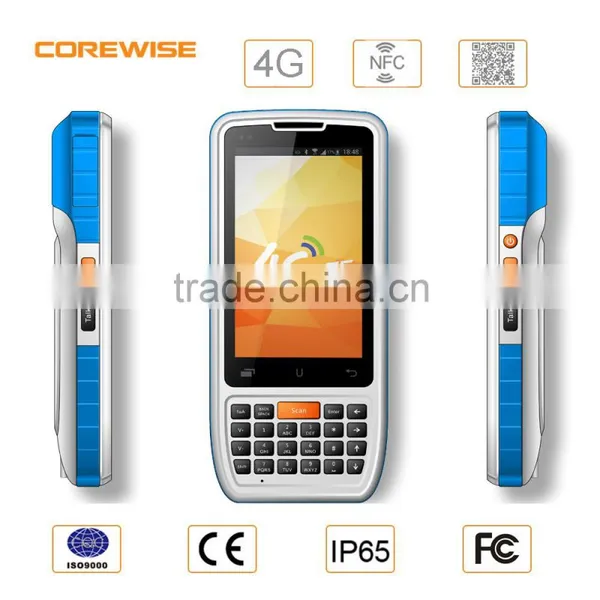

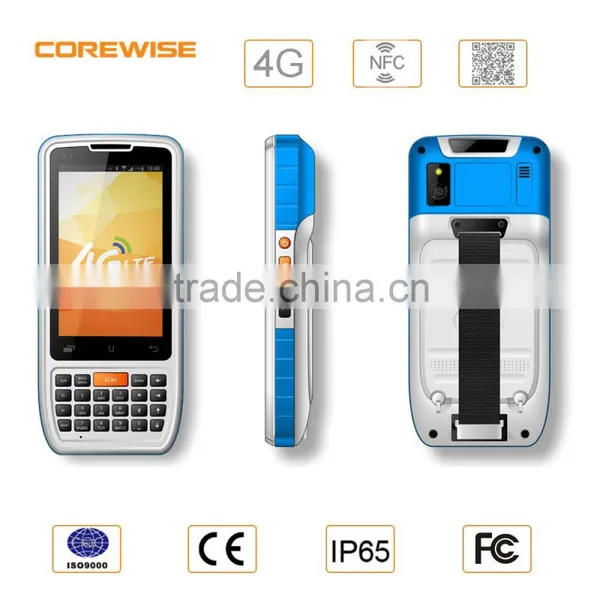

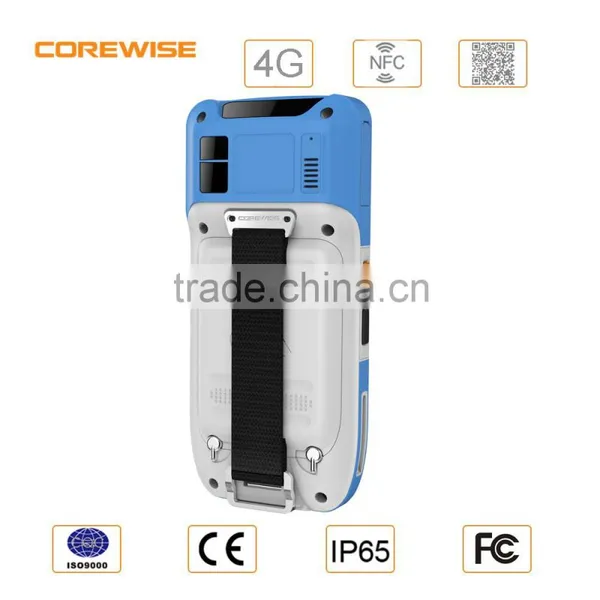

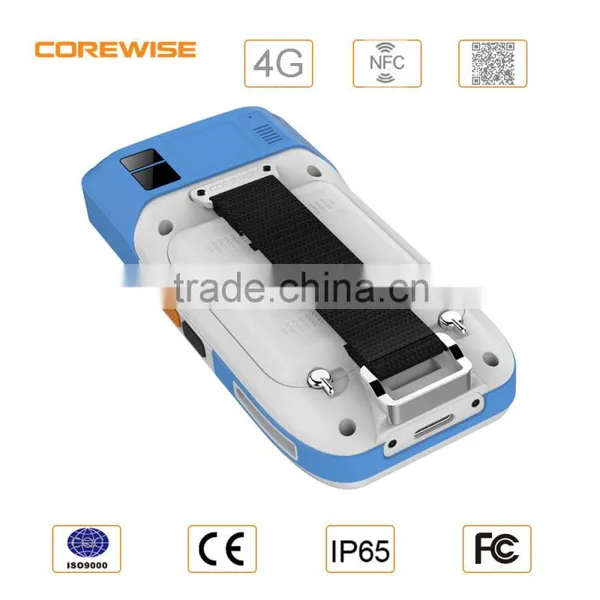

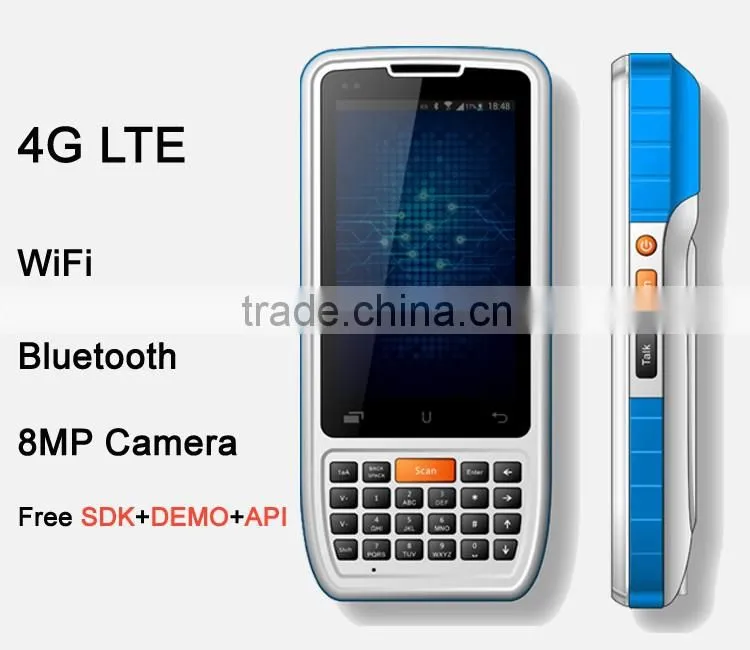

COREWISE CFON600 is an industrial PDA integrated with 1D/2D bar code scanning and NFC function, in conjunction with easy& quick scanner and smart mobile computer, to provide more convenient and efficient data collection options to users. The product also possesses functions of superior DPM, image capture, data type-in and data view, combined with 4G, WIFI, 433MHz wireless communication technology, helping mobile workforce to enhance operational efficiency.
| Physical Parameter | |||
| Design | Bar phone | Keys | twenty eight |
| Dimensions (L*W*D) | 160 mm x 70 mm x 24 mm | Weight | 350g |
| Function Parameter | |||
| Operating System | Android 6.0 | Memory | 1GB RAM,8GB ROM |
| CPU | Qualcomm 8909, 1.2Ghz, Quad Core | Camera | Rear 8.0M Pixels, Auto Focus with Flash |
| Memory and Extension | Micro SD Card, up to 32GB | Networks | GSM: 850/900/1800/1900 |
| GPS | GPS,GLONASS supported,10m | WCDMA:B1/B2/B5 | |
| Bluetooth | BT4.0 LE | CDMA: BC0 | |
| WIFI | IEEE 802.11b/g/n | TDS-CDMA:B34/B39 | |
| Display | 4 inch TFT LCD, Resolution 800*480 | FDD-LTE:B1/B3 | |
| Panel | Capacitive touch screen | TD-LTE:B38/B39/B40/B41 | |
| Optional Functions | |||
| NFC | Optional | ||
| Barcode Scanner | |||
| 1D Linear Scanner : | 1D Linear Scanner : UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes |
2D Imager Scanner: | 2D Imager Scanner: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
| Other Parameter | |||
| Battery Pack | 3.7V, 4000mAh | Headphone | Supported, 3.5mm |
| USB | Mini- USB 10pin | Speaker | Supported |
| Voice Call | Supported | Charging interface | DC 5.5V 1.2A |
| Reliability | MTBF no less than 5000 hours | ||
| User Environment | |||
| Operating Temp | -20℃~+70℃ | Working humidity | <90%RH |
| Storage Temp | -40℃~+70℃ | Storage humidity | 20% ~93%RH(40℃) |
| The atmospheric pressure | 86Kpa~110Kpa | Drop Grade | IP65 |
Trade Terms: FOB CHINA INCOTERMS 2010 or other terms to be negotiated
Payment Terms: Confirmed sight and irrevocable L/C
Advace 100% T/T, Western Union, etc.
Packaging: Carton ,neutral packing, or customized packing as required
Delivery Lead Time: 1-100pcs within 7 working days upon receipt of your payment;
100-3000pcs within 35 working days upon receipt of payment.
(Shipping by DHL ,Fedex,UPS or TNT.)
Corewise is a leading high-tech enterprise specialized in manufacturing various terminals around smart phones integrated with fingerprint sensors, RFID writers/readers (13.56 MHz for proximity or 840-960 MHz for long range), barcode scanners and thermal printers. These seemingly premature products are hardware ready for further developments to fit any needs using technologies of biometric fingerprint imaging/capturing, RFID & barcode scanning.
Our devices are semi-finished product, which requests further development resorting to our SDK on basis of its hardware.
Normally the Buyer shall have technical development capability and technical support capability. Of course we will provide
online help/support if required.
We provide free SDK ,DEMO and the application development guide and development environment introduction,
meanwhile,we will provide technical support in your development process.
(You are also welcome to commission this development job to us,we will charge it according to the development period)
