Home > Products > Nitrogen Generator > Industrial Nitrogen Production Plant

Industrial Nitrogen Production Plant

Name: Industrial Nitrogen Production Plant
Brand: SUNNY YOUNG
Availability: InStock

FOB Price

US$ 2,000 - 20,000 / Set

1 Set(Min. Order)

Port tianjin china
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Beijing, China
Brand Name	SUNNY YOUNG	Model Number	SYNG-70
Usage	Nitrogen	Production Rate	100%
Voltage	220V/380V/440V	Power(W)	0.1KW
Weight	1100KGS	Dimension(LWH)	155014001500mm
Certification	ISO9001	Warranty	18 Months
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

wooden case

Product Description

Industrial nitrogen production plant

PSA Nitrogen generators have become the preferred source of producing on-site Nitrogen gas. Nitrogen plants based on Pressure Swing Adsorption (PSA) technology are very reliable and give many years of trouble free operation.
Drilling operation where the pressure in the wellbore and bottomhole is less than the formation, allowing for production during drilling as well as protection of the formation.Â Nitrogen is commonly used because of combustion issues, and to far lesser extent, corrosion issues.

Quick Details

Details of SunnyYoung nitrogen production plant

Condition: New

Place of Origin: Beijing China (Mainland)

Brand Name:Sunny Young

Model: SYNG-70

Nitrogen Production Rate: 70 Nm3/h

Voltage: 220V

Power(W): 0.1KW

Certification: ISO9001

Warranty: 18months

After-sales Service Provided: Overseas service center available

Type: Skid-mounted

Dew point: -45ºC - -60ºC

purity: 99.99%

Working Principles

nitrogen production plant
PSA nitrogen technology utilizes two towers which are filled with carbon molecular sieve (CMS). Compressed air enters the bottom of one tower. While the smaller oxygen molecules are adsorbed by the CMS, the larger nitrogen molecules pass through the sieve and are stored. Once the CMS of the working tower is saturated with oxygen, the regeneration of the CMS in the tower starts to work by depressurizing, and while another tower is switched to start the process over again.

Advantages

* Most reliable technology

* More advanced and more economical air separation modules. extremely low power consumption

* Simple engineering design, Less components = lower maintenance cost

* Automated Operation.

* Turn-key solution and pre-commissioned.

* Skid mounted design, easy installation.

* Durable Molecular Sieve and Steel Structures ensures longer life

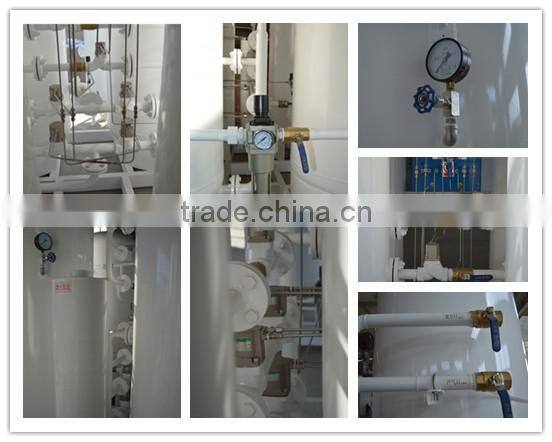

Details

Company Information

SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions. We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. SUNNY YOUNG is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us. SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.

COMPANY BUSINESS:

PSA On-site nitrogen production plant

General purpose nitrogen production plant

High puritynitrogen production plant

Membrane N2generators

Nitrogen Purification Equipment

PSA O2 generators

Industrial oxygen generators

Medical oxygen generators

Membrane O2 generators

Spare parts&Cosumables of N2/ O2 generators

Equipment selection and matching, technician training, installation and commissioning.

Packaging & Shipping

Our Team

SY® PSA nitrogen production plant
Capacity (Nm³/h)	Purity(%)	Model
5	95	SYNL-5
	99	SYNP-5
	99.5	SYNG-5
	99.9	SYNH-5
	99.99	SYNZ-5
	99.999	SYNHZ-5
10	95	SYNL-10
	99	SYNP-10
	99.5	SYNG-10
	99.9	SYNH-10
	99.99	SYNZ-10
	99.999	SYNHZ-10
20	95	SYNL-20
	99	SYNP-20
	99.5	SYNG-20
	99.9	SYNH-20
	99.99	SYNZ-20
	99.999	SYNHZ-20
30	95	SYNL-30
	99	SYNP-30
	99.5	SYNG-30
	99.9	SYNH-30
	99.99	SYNZ-30
	99.999	SYNHZ-30
50	95	SYNL-50
	99	SYNP-50
	99.5	SYNG-50
	99.9	SYNH-50
	99.99	SYNZ-50
	99.999	SYNHZ-50
100	95	SYNL-100
	99	SYNP-100
	99.5	SYNG-100
	99.9	SYNH-100
	99.99	SYNZ-100
	99.999	SYNHZ-100
200	95	SYNL-200
	99	SYNP-200
	99.5	SYNG-200
	99.9	SYNH-200
	99.99	SYNZ-200
	99.999	SYNHZ-200
300	95	SYNL-300
	99	SYNP-300
	99.5	SYNG-300
	99.9	SYNH-300
	99.99	SYNZ-300
	99.999	SYNHZ-300
500	95	SYNL-500
	99	SYNP-500
	99.5	SYNG-500
	99.9	SYNH-500
	99.99	SYNZ-500
	99.999	SYNHZ-500
1000	95	SYNL-1000
	99	SYNP-1000
	99.5	SYNG-51000
	99.9	SYNH-1000
	99.99	SYNZ-1000
SY® Membrane nitrogen production plant
Capacity (Nm³/h)	Purity(%)	Model
10	99	SYME-10
50	99	SYME-50
100	99	SYME-100
500	99	SYME-500
1000	99	SYME-1000
2000	99	SYME-2000

If you need the price nitrogen production plant, pls give the answer of below question:

1) N2 flow rate: _____Nm3/hr

2) N2 purity: _____%

3) N2 discharge pressure: _____Bar

4) Voltages and Frequency : ______V/PH/HZ

5) Application:
