Capstan Type Sprinkling Machine
- 100 Set / Sets per Month
- Tianjin
- T/T Credit Card PayPal
- Hose Reel Irrigation Machine JP75-300
- Farm Irrigation System for Center Pivot on Sale
- Center Pivot irrigation system with competitive price from Chinese manufacturer
- Agriculture Center pivot sprinkler irrigation system
- Irrigation System Type and Agriculture Usage Sprinkling Irrigation Machine
- Irrigation System Type and Agriculture Usage center pivot
Product Details
Type: | Irrigation System |
Packaging Details
wooden case
Product Description

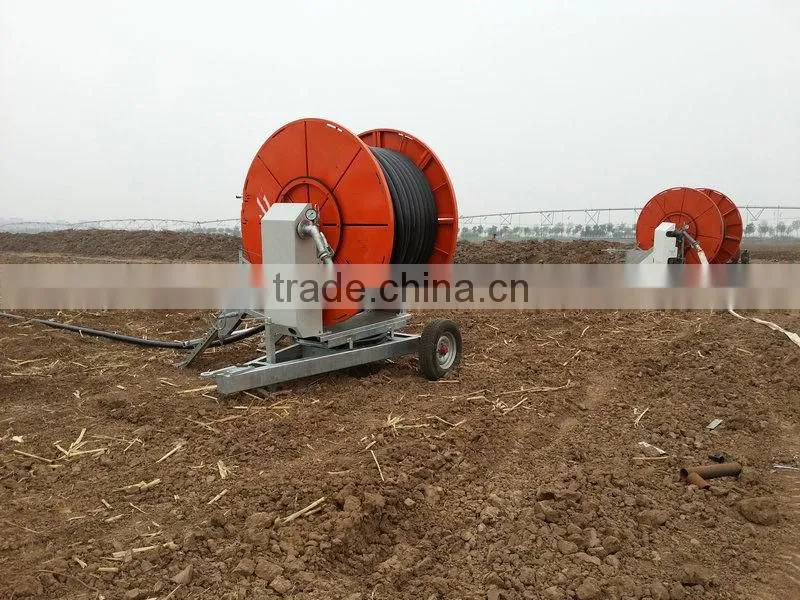

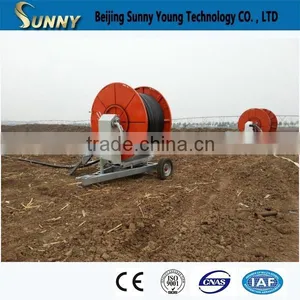

capstan type sprinkling machine

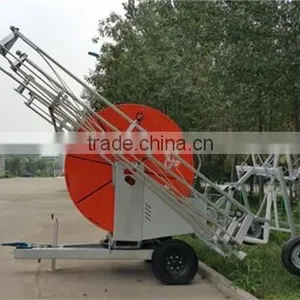

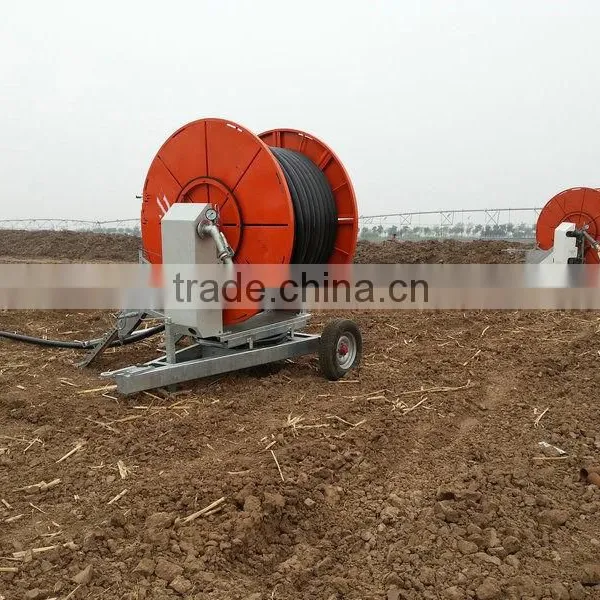

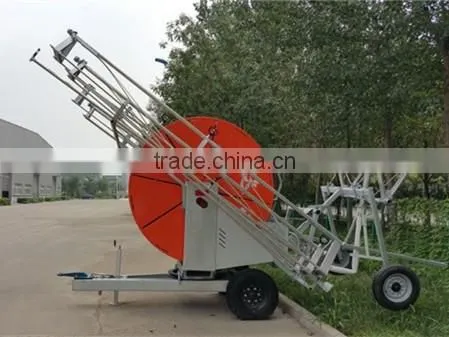

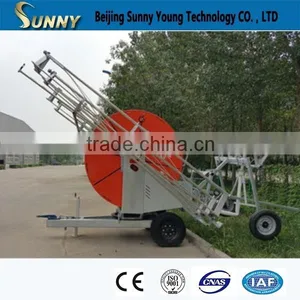

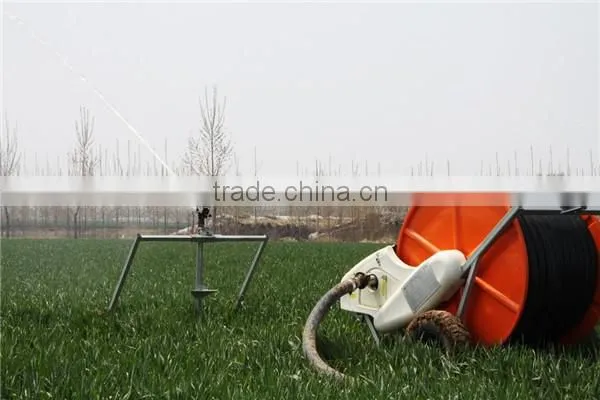

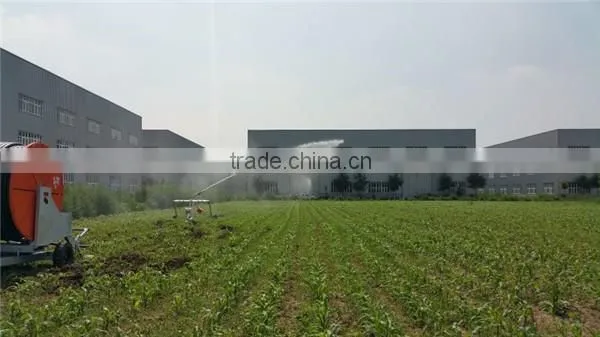

JP series capstan type sprinkling machine is a sprinkling device that winds the traction PE pipe around the capstan, and drives the water turbine to rotate with the sprinkling pressure water. Then it drives the capstan to rotate via the transmission device, and pulls the sprinkler wagon to move and spray freely. It has advantages such as convenient to move, simple operation, labor-saving and time-saving, irrigation with high precision, good water-saving effect, strong adaptability and so on, which can effectively provide crops the water needed and increase the yield.

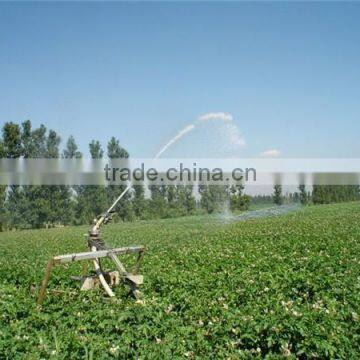

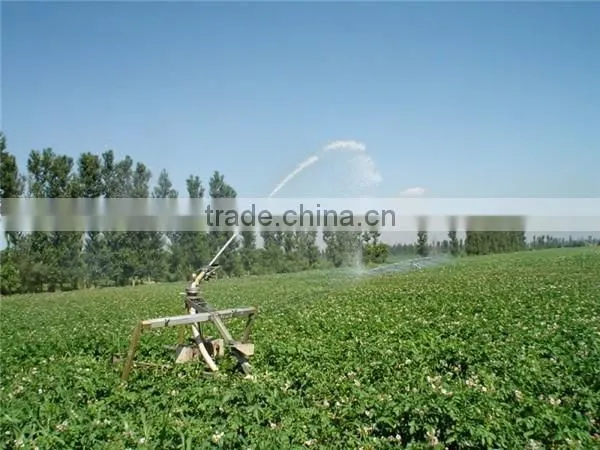

JP series capstan type sprinkling machine can not only irrigate large areas of farmland, but also can control the water flow according to the size of the amount of the water sprayed, to meet the different requirements of users on sprinkling water amount. It is the optimal choice of water-saving irrigation on farmland. At the same time, it also applies to the power plant, port, sports field, urban green areas and other areas that require dust free sprinkling operations.
1. The central branch of sprinkler irrigation is by far the highest degree of automatic sprinkler irrigation equipment, can save a lot of labor.
2. The center shaft type sprinkler unit inlet is located in center of the lower portion of the support, as the center of the support is fixed, so water supply system is very simple.
3. The guidance and synchronization control system is only related to the fixed center support, reliable operation, simple management.
4. After the completion of a water cycle (rotation), the unit stays in the starting position, to prepare for the next irrigation.
5. It can timely and accurately control the amount of irrigation, convenient management, irrigation water utilization.
6. The central branch of sprinkler irrigation function to improve the efficiency of chemical fertilizer and pesticide use.
7. The irrigation operation flexibility, is conducive to the preparation of practical use of electric power plan.
Item | Description | Design Value | |
1 | Model | JP50-200 | |
2 | Type | capstan type sprinkling machine | |
3 | Total weight | 2100kg | |

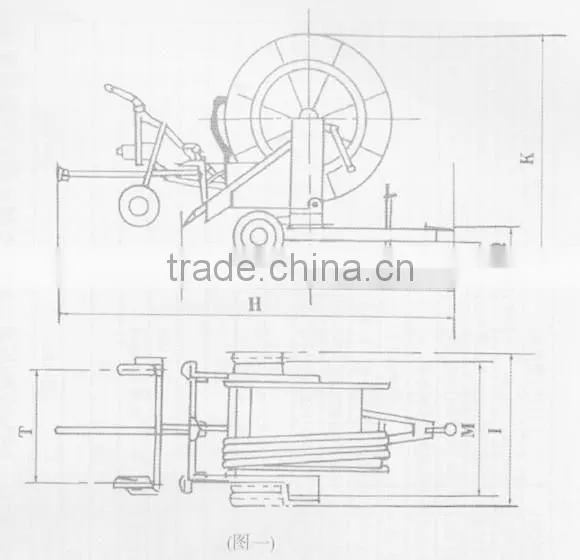

4 | Dimension | 3500*2000*3100mm | |
5 | Effective spraying length | 200m | |
6 | Effective spraying width | 25~30m | |

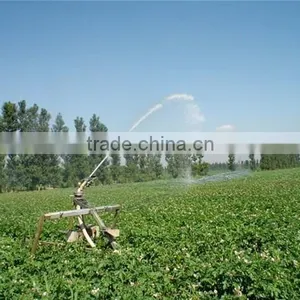

7 | Sprinkler and nozzle | Model | NelsonD3000 |
Diameter | 3.6~7.5mm | ||
Flow rate | 4.3~72 m3/h | ||
Pressure | 0.35~1 MPa | ||
Effective range of spray nozzle | 27~43m | ||
8 | Water pipe | Type | PE |
Out-diameter | 50mm | ||
Length | 200m | ||
9 | Sprinkler Irrigation Uniformity | ≥85% | |
10 | Irrigation deepth | 6~10 mm/h |

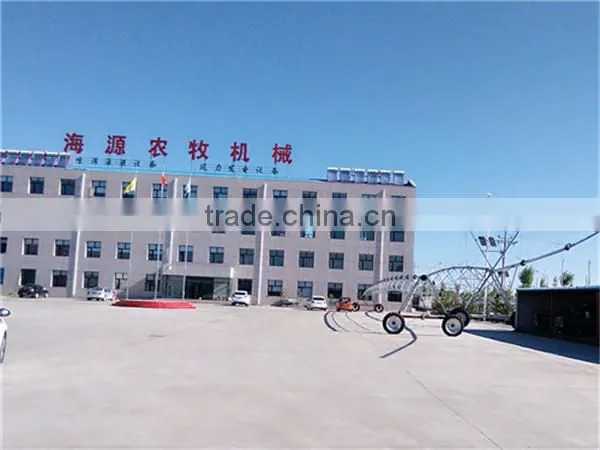

Our factory is located at Guyuan economic development zone in Hebei province of China, faced to Xilin Gol League in Inner Mongolia, it covers 100mu of lands. And its total assets amounted to more than RMB 86.7million yuan. The main products developed by itself has included as follows:
Water-saving Agriculture Usage and Irrigation System Type Farm Machines
Electric Center Pivot Irrigation System Sprinkler of Banwang DZP series.
It has been already approved by the Ministry of Agriculture of the People`s Republic of China, awarded with Certificate of product promotion issues by the government, and it`s also enjoying subsides policy for National agricultural machinery purchase.
Electric Lateral Move Irrigation System Sprinkler of Banwang DPP full-auto series.
It has been already gained national patent certificate, and being a leading position in the market at home and abroad.

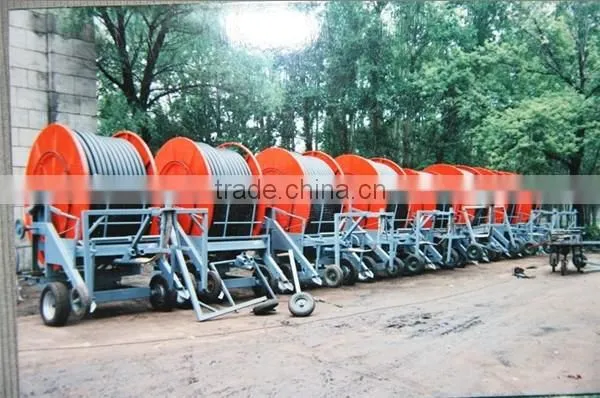

capstan type sprinkling machine of Banwang brand.
We have been produced these very high quality products in many years with high quality.
Hybrid Wind-Hydro-Solar Power Generation Equipment. The company independent developed this equipment by using Solar Photovoltaic Generation Equipment and Wind Generation Equipment.The model and specification is 300W-50kW.The advantage of this generation equipment is not to use battery to save energy,but providing energy through inverter directly to farm irrigation, industrial and agricultural production,household electricity, residential lighting and national light project,etc.
After more than 10 years of development, our products has been sold all around the world such as Mongolia, Italy, Russia, Germany with good reputation. We always adhere to the idea of “quality, service, integrity and innovation”to service our custom. Welcome to visit our company and find a cooperation chance with each other.
Pls feel free to contact with me ,if you have any need to know about capstan type sprinkling machine , thanks
Company Profile
SUNNY YOUNG Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems etc, and are widely used in industries of petroleum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, food, medical treatment, grain, etc. With years research in air separation technology and rich solution experiences in various industries, SUNNY YOUNG sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
We have an experienced professional team always ready to be at your service. The sales engineers carefully analyze your specified requirements and offer suitable solutions for you. The after-sale service system guarantees swift response to your problems within 24 hours and their resolutions in the shortest time. Sunny Young is responsible for after-sales services to nitrogen/oxygen generators and other related equipment offered by us.
SUNNY YOUNG is dedicated to supplying with our customers with more reliable, more economical and more convenient air separation solutions and professional service.
