Specifications
1) Laser power: 10/20/30/ optional2) Max working area:70*70/110*110/220*220/300*300mm optional
3) OEM

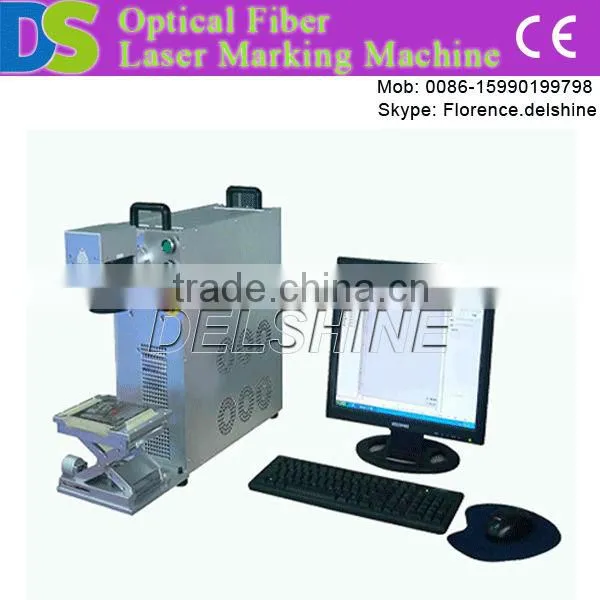

Portable fiber laser marking machine
Application:
Fiber laser marking machine is widely used in integrated circuit chips, computer accessories, industrial bearings, watches, microelectronics and communications products, sanitary ware, glasses, aerospace components, a variety of automotive parts, home appliances, hardware tools, wire and cable, food packaging, jewelry and many other fields, such as graphics and text markup.
Specifications:
Laser repetition rate |
1080nm |
Laser power |
10W/20W/30W optional |
Laser repetition frequency |
20KHz~100KHz |
Marking area |
70*70/110*110/220*220/300*300mm optional |
Marking speed |
Max15000mm/s |
Repeat accuracy |
0.002mm |
Location precision |
0.002mm |
Marking depth |
0.01-0.5mm(According to the material and decision |
Min.line width |
0.5 mm |
Cooling system |
force-air cooling |
Power supply |
2φ 220V 50Hz 1.0KW |
Weight |
15KG |
Features:
1) This machine is compact and portable. At any time convenient to move and adapt to a variety of processing environments.
2) The one-piece chassis stability better. Full Metal Jacket stability and anti-interference ability.
3) Energy conservation and environmental protection.The machine forced air cooling, electro-optical conversion efficiency as high as 28%. Machine power 1.0KW
4) Marking speed. The machine uses the German imports high-speed galvanometer with IPG lasers. Marking speed up to 15000mm / s. Exquisite perfection.
