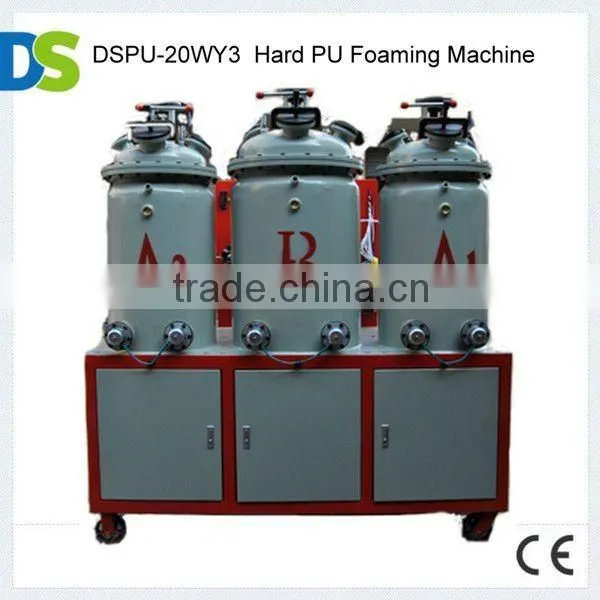

Hard PU Foaming machine
- 20 Set / Sets per Month
- Shanghai
- T/T
- Side Entry Mixing Equipment
- Small Jacketed Glass Reactor Double Layer Reaction Systems for Laboratory
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Type: | Other, PU foam machine |
Brand Name: | D&S | Model Number: | PU20W-Y1-Y2-Y3 | Voltage: | 380V |
Power(W): | 10-25KW | Dimension(L*W*H): | 2300x1200x2300mm | Weight: | more than 1 tons |
Certification: | BV | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1) 3 tanks2) High precision
3) Hard foam, half-hard foam
4) Good English communication
Name:Hard PU foaming
1.Purpose:
Be used for producing hard foam, half-hard foam, self-skinning, mini polyurethane products, such as bobber of instrument, heat preservation cap and toys. It also can be used for testing formula in junior college and science research institute.
2.Application:
Car Making; science sesearch;garments; light Industry; shoes making; textile
3.Parameter:
Serial No. |
Item |
Model | ||
PU20W-Y1 | PU20W-Y2 | PU20W-Y3 | ||
1 |
Mixture Ratio ( unchangeable) | A:B=1:1 | A:B=1:1 | A:B=1:1 |
2 |
Total Output(g/min) | 2-6 | 4-12 | 10-35 |
3 |
Capacity of Can A(L) | 65 | 65 | 65 |
4 |
Capacity of Can B(L) | 65 | 65 | 65 |
5 |
Speed of Agitator (R/m) | 4000-5000 | 4000-5000 | 4000-5000 |
6 |
Total Power(KW) | 8.5 | 8.5 | 9 |
7 |
Product Weight(g) | 3-35 | 6-70 | 15-200 |
8 |
Dimension(mm): L x W x H | 1500×1170×2060 | 1500×1170×2060 | 1500×1170×2060 |
9 |
Weight(kg) | 800 | 800 | 800 |
