Specifications
sponge foam make machine1.Ingenious mixing head;
2.Precise metering unit;
3.Well temperature conditioning.

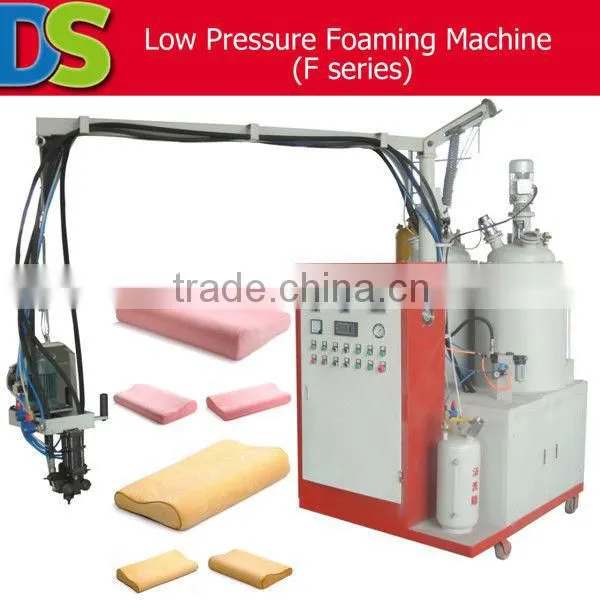

Low Pressure Foaming Machine (F series) Low Pressure Sponge Foam Make Machine (F series)
Relation products from these machines
Machne Components and Features
Mix Head
Mixing by agitator for better mixing performance
New-designed pouring valve for precision dosing
Auto-cleaning function
Color additive avaiable
Individual equipped controller for mix head
Metering Unit
High precision, low speed positive displacement gear pump
Variable output adjusted by VFD
Shaft seal with coupling and DOP
Components Storage and Temperature Conditioning
Jacketed tanks with visual level tube
Digital pressure gauge for control and visualization of pressure with max. alarm value
Electrical resistance heater for temperature conditioning
Low speed agitator for temprature conditioning
Chiller for option
Electrical Control System
Fully controlled by SCM (Single Chip Microcomputer)
OP7 operator panel for simple and user friendly setting of machine parameter, status showing pouring time, tempreature control and cleaning control, etc.
Alarm function with acoustic warming
Machine Parameter
Model |
Output (1:1) g/s |
Tank L |
Power KW |
|
Min. |
Max. |
|||
BL(F)-1 |
3.3 |
13.3 |
60 |
6 |
BL(F)-5 |
16.6 |
66.6 |
80 |
8 |
BL(F)-15 |
50 |
250 |
120 |
9 |
BL(F)-35 |
100 |
600 |
120 |
12 |
BL(F)-60 |
250 |
1000 |
200 |
13 |
BL(F)-120 |
666.6 |
2000 |
200 |
15 |
Machine Processing
Machine Package
Warranty and After-Sale Service of Machines
1. One year warranty.
2.The on-site installation and testing service can be supplied via paid service .
