Specifications

Multifunctional car emergency culter hammer with seat belt cutter
-Flash warning
-Phone Charger
-Belt Cutter
-TUV

Multifunctional car emergency culter hammer with seat belt cutter

Working principle:

This product adopts the principle of three-phase alternating generator to crank for power which after commutating and filtering to charge its inner 80mAh/3.6v NI-MH chargeable battery. The electricity in the battery can be used for lighting and charging mobile phone.





Functions :



1.Cranking for power to charge its inner 80 mAh / 3.6v NI-MH chargeable battery which reserve electricity also.

2.Cranking for power to charge mobilephone through a connector and wire.

3. One LED lighting.

4. Flashing alert.

5. Breaking the glass in urgent condition.

6. Cutting the strap in emergency.

7. Sticking to iron object.



Features :



1.It adopts three-phase brushless generator to generate power with high-efficiency , low noise.

2.Convenient to use by cranking , without changing battery.

3.Complete self-assistance functions.

4.Controlled by electronic switch , long lifespan.

5.Novel, fashion and exquisite

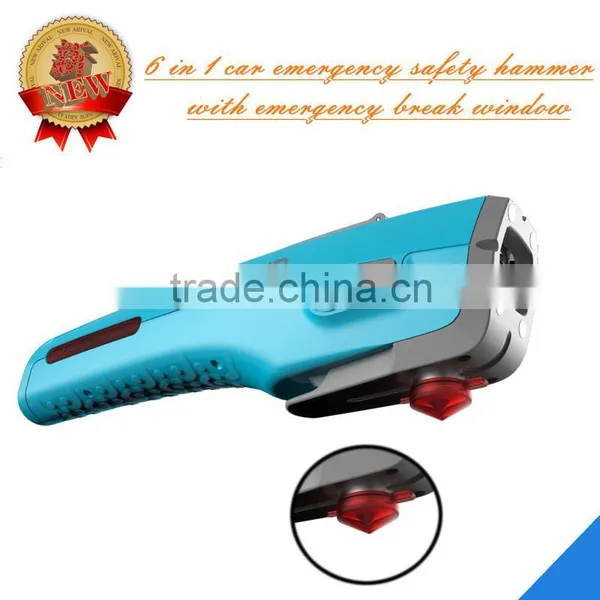

Product Pictures:



Main Technical Parameters:



Item	Parameter	Unit
Max. brightness of 1 LED light	60000	Mcd
Max. luminous flux of 1 LED light	3.5	Lm
Lighting time after 1 minute cranking
1 LED light	40	minute
4 Φ3LED flash	60	minute
Lighting time after being charged fully
1 LED light	5	hour
4 Φ3LEDs flash	12	hour
Flash frequency	2	HZ
Voltage Output	5	v
Max. current output	500	MA
Max. power output	2.5	W
Lifespan
LED lifetime	50000	hour
Switch lifetime	100000	times
Plastic parts lifetime	5	year
The whole unit lifetime	5	year
It provides 3~8 minutes’ talking time to mobile phone by cranking 3 minutes



Operation Method :

1. Lighting: Unlock the handle, hold the unit by one hand, crank the handle by the other at the speed of 4 circles per second for about one minute, press the switch, the light will be on, press again, the light will be off .



2. Flashing: Press the flash switch once, 4 red LEDs flash, press again, they will be off.



3.Charging for mobilephone: Take off the DC cover, insert one end of the connecting wire into the DC socket and the other end into the mobilephone. Hold the unit with one hand and crank the handle with the other at the speed of 4 circles per second. When the mobilephone give indication, it means charging.



Emergency treatment:



1. Hammer : Take off the hammer cover, hold the product and strike at the object you want to break.
2. Cutting knife: Hold the product to cut the strap with cutting knife.



Cautions:



1. Don’t point at eyes directly so as not to hurt the eyes.



2. Put it at the place that children can’t catch in case of hurting them.



3. Try to crank it evenly (keep rotating steadily). Cranking too slowly may reduce the current and so prolong the charging time. Cranking too violently may damage the driving system.



4. Pay attention to the holding gesture when cranking which can protect your finger and nail from hurting.



5. In order to assure the life of the battery, you should crank no more than 3 minutes continuously on the condition that it can light, and crank less than 10 minutes continuously when it can’t light.



6. In order to prolong the lifespan of the battery, you should crank it for at least one minute once a month.



7. This product may not fully charge a mobilphone.



8. Use the wire that our company specified to charge the specified brand of mobilephone, otherwise it might damage the phone or battery.



9. Put it at the place where you can reach easily so as to use in an emergency.
