Help CenterNon Gas Juice Can Filling Machine
Related Products
Specifications
Juice Can Filling Machine1. Tinned, Alu. pop top cans
2. Non-gas drinks, such as fruit juice
3. Washing, filling, sealing
Application of Juice Can Filling Machine
This production line is used for washing, filling, and sealing of pop-pop cans made of tinplate or Aluminum, such as fruit juice, non-carbonated drink etc.
The main technical specifications of juice can filling machine
Model |
QSG washing machine |
GFP-12.16.24.32 |
FXZ-1 |
Production capacity |
3000 |
1500-8500 |
2400 |
Bottle/can type(mm) |
D40-80 |
D40-90 H50-340 |
D50-67 H90-200 |
Power (kw) |
0.55 |
1.1 |
0.75 |
Overall dimension(mm) |
1900*530*1100 |
810*1050*2050 |
930*700*1850 |
Weight (kg) |
480 |
500 |
500 |
The feature of juice can filling machine.
1.Unique design
1). Can change different bottles in few minutes.
2). The most important device is the pneumatic piston, which is unique designed, accurate calculated, easy to dismantle and clean.
3).The best character is the machine can fill low viscosity liquid too.
4). The piston stroke is controlled by handwheel, which can adjust the filling quantity constantly in large scale. And then ensure the same filling of every head.
5) Customer can choose the proper filling head according to the needed.
2. Unique filling style
1) The filling quantity is calculated by volume, very accurately.
2) The filling head can be down to the bottle bottom to filling if the liquid easy to foam.
3) There is an antidrip device in the filling mouth, which can be sure no pulling silk and dropping leak when filling.
4) The machine integrates the machinery, electricity and pneumatic, supported by PLC, can realize different filling job.
3. Accurate filling
1) The error is ±1%, can reduce the waste, and then improve economic returns.
2) Equipped with the fine tuning can adjust the little error timely.
3) The world well-known control appliances ensure there is no breakdown when working.
4) With accounting function, no bottle no filling.
Why our company is your correct choice in China?
1. Small profits and quick returns is our business policy, so the juice can filling machine is worth every cent .
2. We focus on advanced supply chain management, which can ensure the raw materials are with good quality and competitive price.
3. OEM is accepted.
4. We can update the production status for our customer once per week, our target is to let our customer receive goods on time.
How to use juice can filling machine?
Please refer to the User Manual to know how to set up and use this machine.
Also after buy the machine, we will send the video that show how to use this machine step by step on request.
After-sale service
1. 1 year quality warranty and supply spare parts at low cost for life span after sale. We keep the original
drawings of spare parts, so it can match with the rest part of machine.
2. 24 hours/365 days online technical service.
3. Training offered

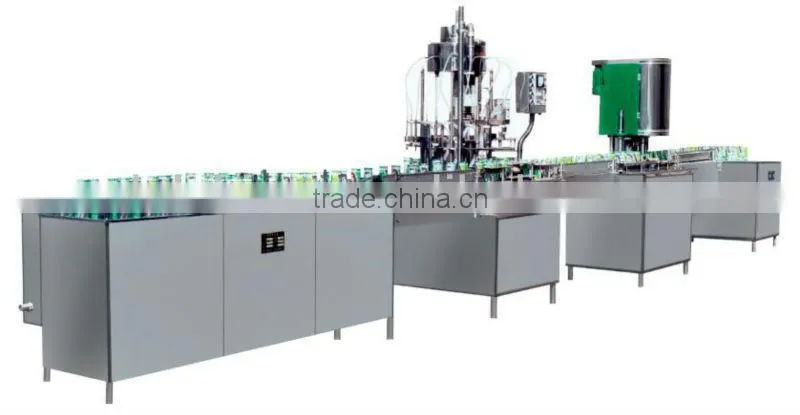

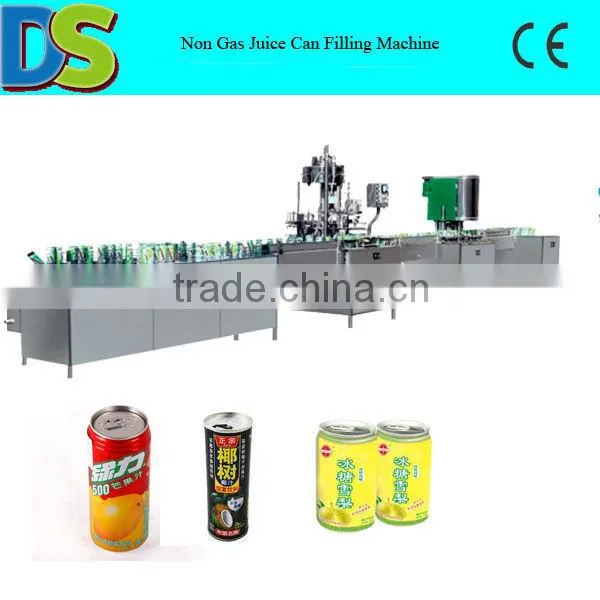

Picture shows of juice can filling machine.
