Specifications
Drop in anchorMaterial:brass, steel
Size: M4-M20
Finish:Self color

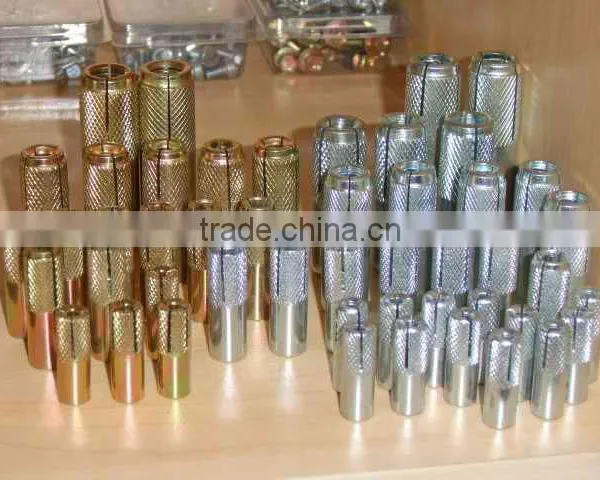

Brass drop in anchor self color various colors
| Order Code | Anchor Size(A) | Anchor Dia(B) | Anchor Length | Thread Length(D) | Bolt Thread Fit Length | Pull Out Load(kgs) |
| 08001 | M6 | 8.0 | 25 | 9 | 8 | 980 |
| 08002 | M8 | 10.0 | 30 | 12 | 10 | 1500 |
| 08003 | M10 | 12.0 | 35 | 14 | 12 | 2100 |
| 08004 | M12 | 15.0 | 40 | 20 | 16 | 3200 |
| 08005 | M16 | 20.0 | 45 | 24 | 20 | 4300 |
