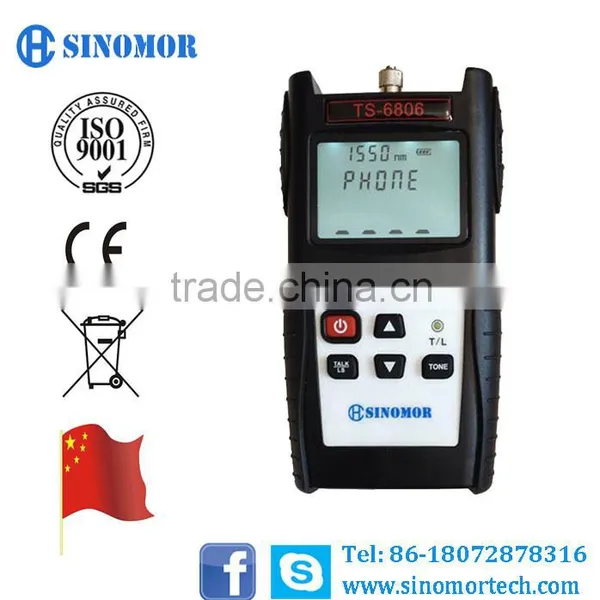

TS6806 Optical Fiber Talk Set

Specifications

1. Optical Fiber Talk Set
2. Full-duplex digital communication
3 .High quality conversation
4.120km transmission distance

TS6806 series optical fiber talk set is an updated version of TS6800 series talk set. It keeps all function of TS6800 series talk set, but it is greatly improve in transmission distance and battery life.

The updated distance of TS6806 series optical fiber talk set is around 120km and battery life is around 30 hours under communicating status, 50hours as light source. When working as light source, the output power of  TS6806 series optical fiber talk set is adjustable. The adjustable step is 1dB.

Features

• Optical Fiber Talk Set
• Two parties communicate via a single fiber
• Full-duplex digital communication
• High quality conversation
• 120km transmission distance
• 30 hours working hours as talk set
• Low background noise
• Low power indication
• Light source function
• Power supply via USB port


Specifications

Model	TS6806
Central Wavelength (nm)	1310/1550±20
Emitter	FP-LD
Optical Connector	FC/PC
Transmission Distance (km)	120
Dynamic Range (dB)	45
Output Power Range	-5~-15
Adjustable Step (dBm)	01
Modulation (Hz)	270,330,1k,2k
Output Stability (dB,30mins@20°C)	≤±0.05
Battery (v)	AA (3pcs)
Operating Time (h)	30 hours as talk set and 50 hours as light source
Operating Temperature (°C)	-10 ~ +60
Storage Temperature (°C)	-25 ~ +70
Dimension (mm)	161x90x44
Weight (g)	225

 Standard Accessories

1)    Main Unit

2)    Earphone

3)    Cleaning Stick

4)    Battery

5)    Power Adapter

6)    Carrying Bag

7)    Manual



Ordering Information

TS6806-C-PA

1)  C=Connector

     C1=standard FC connector

     C2= interchangeable FC/SC/ST connector



2)  PA=Power Adapter

     PA1= USA power adapter

     PA2= EU power adapter

1. Standard warranty is 18 months.

2. Extended warranty is available with reasonable and addtional cost.

1. Optical Fiber Talk Set +cleaning stick+earphone+manual+carrying pouch+carton box.
