1. High Precision Optical Power Meter2. Wide measurement range
3. Up to 240 working hours
4. Best selling one

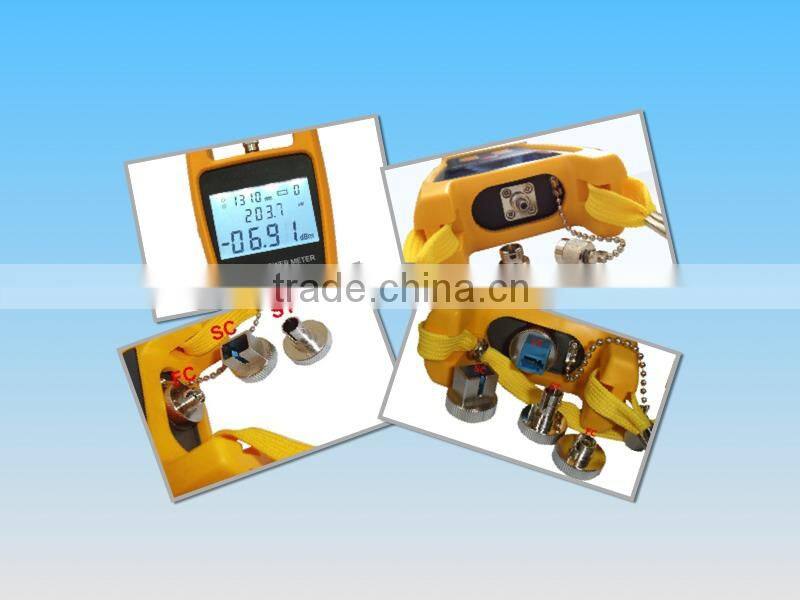

PM6102 High Precision Optical Power Meter with wide measurement range is the best selling
power meter in all the power meters.
In basic function, it is totally same to PM6100 series High Precision Optical Power Meter .
In size, it is a bit larger.The larger size ensures that it has larger LCD screen, longer battery life than
PM6100 series High Precision Optical Power Meter.
With the strong function,high quality but low cost, PM6102 High Precision Optical Power Meter
with wide measurement range is the top one selling in all meters.
Features
- High Precision Optical Power Meter with wide measurement range
- Max 6 calibration wavelength
- Up to 240 working hours
- 10 minutes auto-off function
- User Self-calibrating function
- REF function
- Controllable backlight
Specification
Model | PM6102T | PM6102C |
Wavelength (nm) | 800~1700 | |
Detector | InGaAs | |
Measurement Range (dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% | |
Calibrated Wavelength (nm) | 850/1300/1310/1490/1550/1625 or 850/980/1300/1310/1490/1550 | |
Resolution (dB) | 0.01 | |
Optical Connector | Interchangeable FC/SC/ST | |
Battery | AA (3pcs) | |
Operating Time (h) | 240 | |
Working Temperature (°C) | -10 ~ +60 | |
Storage Temperature (°C) | -25 ~ +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension (mm) | 175x82x33 | |
Weight (g) | 310 | |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Optional Accessories
1) FC/SC/ST connector
2) FC/SC/ST/LC connector
Ordering Information
PM6102 M-D-C-W | |||
Measurement Range (M) | Detector (D) | Connector (C) | Wavelength (W) |
M1: -70~+6dB(for Telecom) M2:-50~+26dBm (for CATV)
| D1:InGAsA D2:Ge D3:Si | C1: interchangeable FC/SC/ST C3: Interchangeable FC/SC/ST/LC
| W1:850/1300/1310/1490/1550/1625nm W2:850/980/1300/1310/1490/1550nm W3: others (Max 6 calibration wavelength)
|
1. Standard warranty is 18 months.
2. Extended warranty is also available with addtional and reasonable cost.
3. Custom-made products are also provided based on your specific requirements.
