Specifications
1. Optical Meter2. Automatic wavelength identification & switching
3. Automatic modulation identification

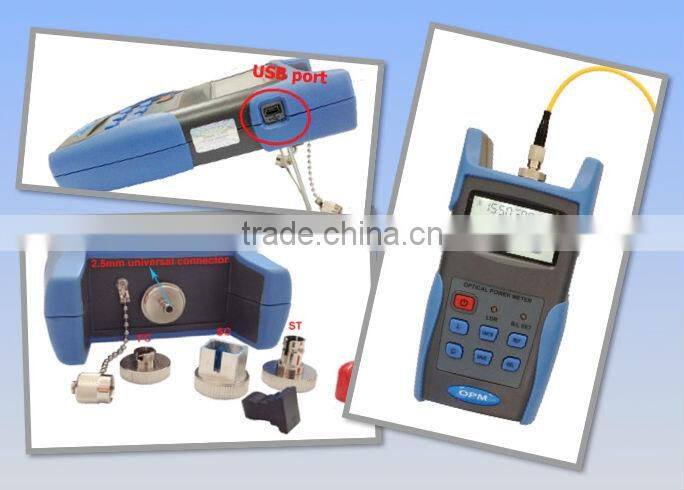

PM6106 series Optical Meter not only keeps all the function of PM6102 series Optical Meter ,but also aldevelops new intelligent function.
Combined with LS6206 series handheld intelligent light source, it can automatically detect the wavelength
and frequency from LS6206 handheld intelligent light source, then switch wavelength and frequency accordingly.
PM6106 series optical meter’s internal memory can save up to 1000 records,customers could upload, edit and
print the test result at any time.
The backlight design of PM6106 series Optical Meter is special. It has 2 types of backlight.
One is to adjust the backlight manually; another is to change automatically with the environment.
With the AC port, PM6106 series Optical Meter can also powered by AC power adapter and work long time.
Features
- Optical Meter
- Automatic wavelength identification and switching (combine with LS6206 OLS)
- Automatic frequency identification (combine with LS6206 OLS)
- Intelligent backlight control
- Up to 1000 test records storage via USB port
- User self-calibrating function
- Low battery indication
- 10 minutes auto-off function
- Up to 200 hours working hours
- External AC adapter to provide power
Specifications
Model | PM6106T | PM6106C | |
Calibration Wavelength (nm) | 850/1300/1310/1490/1550/1625 | ||
Detector | InGaAs | ||
Connector | Interchangeable FC/SC/ST | ||
Measurement Range (dBm) | -70~+10 | -50~+30 | |
Uncertainty (dB) | ±0.15(3.5%) | ||
Display resolution (dB) | 0.01 | ||
Frequency ID (Hz) | 270,330,1K,2K | ||
Wave ID (nm) | 850/1300/1310/1490/1550/1625 | ||
Data Records | 1000 | ||
Communication Port | USB | ||
Battery | AA (3pcs) | ||
Power Adapter (V) | 8.4 | ||
Battery Operating time (h) | 200 (without backlight) | ||
Operation Temperature (°C) | -10~+60 | ||
Storage Temperature (°C) | -25~+70 | ||
Dimension (mm) | 175*90*44.5 | ||
Weight (g) | 235(including batteries) | ||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) CD
7) Power Adapter
8) USB cable
Ordering Information
PM6106 M-D-C-W-PA | ||||
Measurement Range (M) | Detector (D) | Connector (C) | Wavelength (W) | Power Adapter (PA)
|
M1: -70~+6dB(for Telecom) M2:-50~+26dBm (for CATV)
| D1:InGAsA D2:Ge D3:Si | C1: interchangeable FC/SC/ST C3: Interchangeable FC/SC/ST/LC
| W1:850/1300/1310/1490/1550/1625nm W2:850/980/1300/1310/1490/1550nm W3: others (Max 6 calibration wavelength) | PA1: USA PA2: EU
|
1. Standard warranty is 18 months.
2. Extended warranty is also available with addtional and reasonable cost.
3. Custom-made products are also provided based on your specific requirements.
