Help CenterFS-50T Optical Fiber Fusion Splicer
Related Products
Specifications
1. optical fiber fusion splicer2. High precision fusion splicing machine
3. 8s splicing,28 heating
4. 5.6" TFT touch screen
FS-50T Series optical fiber fusion splicer adopts high-speed image processing technology and special precision-positioning technology, which automatically finish the whole process of fiber fusion in 8 seconds, TFT LCD
monitor clearly displays all splicing steps of fiber fusion.
FS-50T Series optical fiber fusion splicer is widely used for SM and MM Quartz Fiber with diameter 80-150μm,
coating layer diameter 0.1-1.0mm and bare fiber length 16mm more or less.
Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications.
FS-50T Series optical fiber fusion splicer supports Chinese, Japanese, Germany, Spanish, Russian, Korea, Portuguese,French, Italian, Turkish, English etc.
Features
- Optical fiber fusion splicer
- The rugged construction plus improved reliability by resisting shock, dust, and rain
- 5.6 inch TFT color LCD monitor with anti-reflective coating
- Advanced core to core fiber profile alignment system (PAS)
- ARC Calibration FREE system
- Included ARC Calibration sub-menu supports manual ARC Calibration
- X/Y axes was displayed simultaneously or separately or both X and Y were displayed simultaneously, Magnification up to 300 times
- 8 seconds splicing time, 28 seconds Heat-Shrinking
- Real-time display of battery capacity
- Built-in high capacity battery, support 220 cycles (splicing /tube heating), to meet one day work
- Up to 4000 times long Electrode Lifetime
- The new wind-cover design enhances the ability to prevent the dust & wind, Max. wind velocity of 15m/s
- Two Splicing modes: auto, manual
- Built-in super high-brightness LED supply convenience for night work
- Auto calculate splicing loss based dual camera cladding axis alignment data
- Small bulk and lightweight, only 2.8kg include battery
- 4000 results Storage
- 2.0 USB data interface &VGA
- Carrying Case can also act as working table to splice the fiber
- One button operation to finish results download or software update
- Close shield to splice automatically; close heater lid to heat automatically
- One year warranty ( extended TWO years or THREE years warranty is available for special order)
Specification
Model |
FS-50T |
Fiber Types |
Single Mode (ITU-TG.652), Multimode (ITU-TG.651), Dispersion Shifted (ITU-TG.653), Non-Zero Dispersion Shifted (ITU-TG.655) and the SMF including ITU-TG657 fibers |
Average Splicing Loss |
0.02dB with G.652 and G.657, 0.01dB with G.651 and 0.04 dB with G.653 and G.655 |
Splicing Time |
8s |
Heating Time |
28s |
Return Loss |
60dB or greater |
Fiber Coating |
100μm to 1000μm |
Fiber Cladding |
80μm to 150μm |
Fiber Cleave Length |
8~16mm(coating diameter<250μm ), 16mm(coating diameter 250~1000μm ) |
Program |
10 units factory setting SM program, 10 units factory setting MM program, 30 units user setting SM program, 30 units user setting MM program |
Align Mode |
Advanced profile alignment system (PAS) |
Storage |
4000 results |
Data Transmission |
USB port & VGA |
Heater |
Built-in tube heater, AUTO Heat Mode |
Heat-Shrinkable Tube |
40mm, 60mm and a series of micro Heat-shrinkable Tubing |
Screen Display |
Two CMOS cameras, 5.6 inch 640*480 TFT LCD, core of the fiber is clearly visible |
Lighting |
Built-in super High-brightness LED supply convenience for night work |
Magnifications |
300X for single X or Y view, 300X for X and Y view (left/right), 150X for X and Y view (up/down) |
Work mode |
Auto/Manual |
|
General Information
| |
Power Supply |
Alternating Current: 100-240 50Hz/60Hz 30W,Direct current: 13.5V/4.5A Built in11.1V Li-ion battery charger and AC adaptor |
Battery Life |
Support 220 cycles (splicing and tube heating) on one charge (3.5 hours) at least |
Battery Lifetime |
Cycle life up to 300~500 times, replaceable |
Tension Test |
2N |
Electrode Lifetime |
>4000 times, replaceable |
Operating Temperature |
-25 °C~50 °C |
Storage Temperature |
-40 °C~80 °C |
Relative Humidity |
0 to 95%(non-condensing) |
Work Altitude |
0~5000 meters above sea level |
Instrument Weight |
2.3kg(no battery) with AC/DC adapter,2.8 kg(including battery) |
Dimension |
160mm*150mm*140mm |
G.W/N.W |
10.0/9.0kg |
Package (L*W*H) |
620mm*420mm*360mm |
Standard Accessories

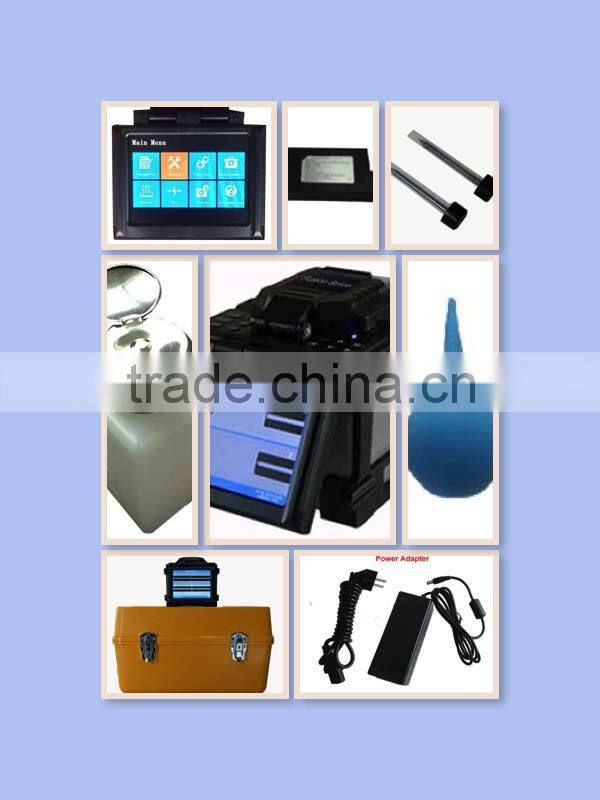

1) Optical fiber fusion splicer
2) High precision cleaver
3) Power adapter
4) Battery pack
5) Blow blush
6) Cooling tray
7) Monitor coating
8) USB flash disk
9) Fiber stripper
10) Battery charger cable
11) Spare electrodes
12) V-groove cleaning
13) CD
14) Alcohol dispenser
15) Monitor cover
16) Carrying case
17) Manual
1. Standard warranty is 12 months.
2. Extended warranty is also available with additional cost.
