BRI3300 SM 1310/1550nm Return Loss And Insertion Loss Tester

BRI3300 SM 1310/1550nm Return Loss And Insertion Loss Tester thumbnail-1
BRI3300 SM 1310/1550nm Return Loss And Insertion Loss Tester photo-1
US$ 1 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sinomor
Model Number:
BRI3300
Contact Supplier Request Quote Chat Now
Hangzhou Sinomor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Sinomor
Model Number BRI3300

Specifications

1. SM 1310/1550nm Return loss and insertion loss tester
2. Return loss and insertion loss display together


Product Description

BRI3300 Series MM 850/1300nm Return Loss And Insertion Loss Tester are widely used to test the insertion loss and return loss of the fiber cables, fiber optical active components and fiber optical passive components.

BRI3300 Series MM 850/1300nm  Return Loss/Insertion Loss Tester is essential and ideal tool for the test, research, development, construction and maintenance of the manufacturers, research institutions and network service providers and carriers.

BRI3300 SM 1310/1550nm Return Loss And Insertion Loss TesterBRI3300 SM 1310/1550nm Return Loss And Insertion Loss Tester

     Features

  1. SM 1310/1550nm  Return Loss And Insertion Loss Tester
  2. Accurately analysis and test of the wide dynamic range and weak signal

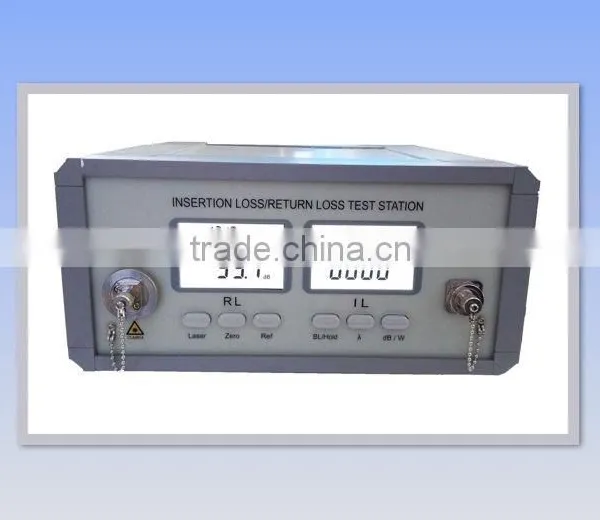

  3. Return loss and insertion loss respectively show on the 2 large LCD screen
  4. The wavelength of optical power meter switch together with light source’s

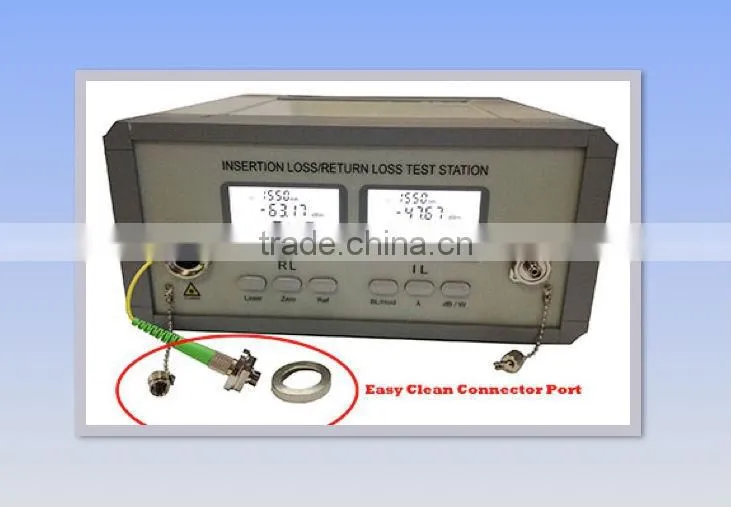

  5. The removable design of light source’s port is easy to clean
  6. Automatically data storage via USB port
  7. Multi-type connector FC/SC/ST, 2.5mm &1.25mm ferrules for OPM port
  8. Universal AC Power Supply from 90-260V

Specification

Model

BRI3300S

BRI3300M

Return Loss Test

Operating Wavelength (nm)

1310/1550

850/1300

Output Power (dBm)

≥-3

≥-7

Output Stability (dB, 1h@25°C)

±0.03

±0.05

Accuracy (dB)

±0.3(0~65dB)

±0.4(0~55dB)

Applicable Fiber

SM

MM

Optical Interface

FC/APC

Resolution (dBm)

0.01



Measurement Range (dBm)

0~75

Insertion Loss Test

Wavelength Range (nm)

800~1700

Calibration Wavelength (nm)

850/1300/1310/1550

Detector

InGaAs (φ2.0mm)

Measurement Range (dBm)

-80 ~+3

Uncertainty

±5%(-65~+35dB)

Accuracy

0.25dB

Displayed Resolution

Logarithm:0.001dB, Linearity: 0.001nw/µW/mW

Test Mode

Linearity/Non-Linearity

Connector

FC/SC/ST/φ2.5mm/φ1.25mm ferrules

General Information

Communication Port

USB 2.0 or RS232

Power (V)

AC 90~260

Operating Temperature (°C)

0~+40

Storage Temperature (°C)

-25~+70

Humidity

0~85%

Dimension (mm)

260x265x140

Weight (kg)

3.15





























Standard Accessories

   Model

BRI3300S

BRI3300S

1

Main unit

Main unit

2

Manual

Manual

3

Power Cable

Power Cable

4

Connector

Connector

5

Mother Patch-cord (FC/APC-FC/APC)

Mother Patch-cord (FC/APC-FC/APC)

6

Mother Patch-cord (FC/APC-FC/PC)

Mother Patch-cord (FC/APC-FC/PC)

7

Fuse

Fuse

8

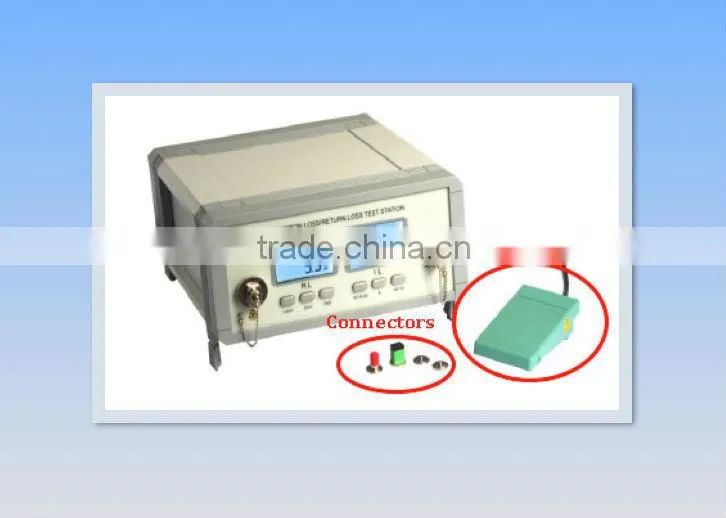

Foot Pedal

Foot Pedal

9

Cleaning Stick

Cleaning Stick

10

CD

CD

11

USB cable

USB cable

12



Matching Gel

13



Scrambler

Ordering Information



                                                                               BRI3300-M-CP-MP-PA



Model

(M)

Communication Port

(CP)

Mother Patch-cord

(MP)

Power Adapter

(PA)

M0: BRI3300S SM

M1: BRI3300M MM 50um

M2:BRI3300M MM 62.5um



CP1: with USB port

CP2: with RS232 port



MP1A: FC/APC-FC/APC

MP2A: FC/APC-SC/APC

MP3: FC/APC-FC/PC

MP4: FC/APC-SC/PC

MP5: FC/APC-ST/PC

MP6: others

PA1: USA PowerAdapter

PA2: EU Power Adapter



Our Services

1. Sandard warranty is 18 months.

2. Extended warranty is also available with additional cost.
