Specifications
1. Return loss and insertion loss test station2. Return loss and insertion loss display together
3. High dynamic range
BRI3300 Series Return Loss And Insertion Loss Test Station are widely used to test the insertion loss and return loss of the fiber cables, fiber optical active components and fiber optical passive components.
BRI3300 Series Return Loss/Insertion Loss Test Station is essential and ideal tool for the test, research, development, construction and maintenance of the manufacturers, research institutions and network service providers and carriers.
Features
- Return Loss And Insertion Loss Test Station
- Accurately analysis and test of the wide dynamic range and weak signal
- Return loss and insertion loss respectively show on the 2 large LCD screen
- The wavelength of optical power meter switch together with light source’s

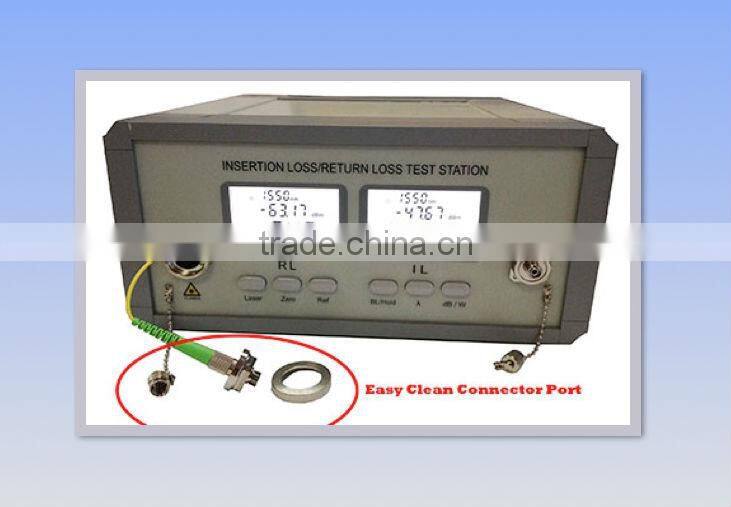

- The removable design of light source’s port is easy to clean
- Automatically data storage via USB port
- Multi-type connector FC/SC/ST, 2.5mm &1.25mm ferrules for OPM port
- Universal AC Power Supply from 90-260V
Specification
Model | BRI3300S | BRI3300M |
Return Loss Test | ||
Operating Wavelength (nm) | 1310/1550 | 850/1300 |
Output Power (dBm) | ≥-3 | ≥-7 |
Output Stability (dB, 1h@25°C) | ±0.03 | ±0.05 |
Accuracy (dB) | ±0.3(0~65dB) | ±0.4(0~55dB) |
Applicable Fiber | SM | MM |
Optical Interface | FC/APC | |
Resolution (dBm) | 0.01
| |
Measurement Range (dBm) | 0~75 | |
Insertion Loss Test | ||
Wavelength Range (nm) | 800~1700 | |
Calibration Wavelength (nm) | 850/1300/1310/1550 | |
Detector | InGaAs (φ2.0mm) | |
Measurement Range (dBm) | -80 ~+3 | |
Uncertainty | ±5%(-65~+35dB) | |
Accuracy | 0.25dB | |
Displayed Resolution | Logarithm:0.001dB, Linearity: 0.001nw/µW/mW | |
Test Mode | Linearity/Non-Linearity | |
Connector | FC/SC/ST/φ2.5mm/φ1.25mm ferrules | |
General Information | ||
Communication Port | USB 2.0 or RS232 | |
Power (V) | AC 90~260 | |
Operating Temperature (°C) | 0~+40 | |
Storage Temperature (°C) | -25~+70 | |
Humidity | 0~85% | |
Dimension (mm) | 260x265x140 | |
Weight (kg) | 3.15 | |
Standard Accessories
Model | BRI3300S | BRI3300S |
1 | Main unit | Main unit |
2 | Manual | Manual |
3 | Power Cable | Power Cable |
4 | Connector | Connector |
5 | Mother Patch-cord (FC/APC-FC/APC) | Mother Patch-cord (FC/APC-FC/APC) |
6 | Mother Patch-cord (FC/APC-FC/PC) | Mother Patch-cord (FC/APC-FC/PC) |
7 | Fuse | Fuse |

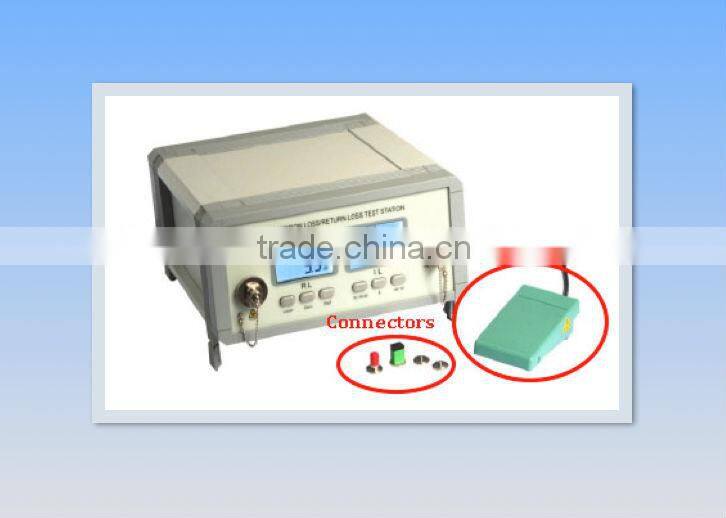

8 | Foot Pedal | Foot Pedal |
9 | Cleaning Stick | Cleaning Stick |
10 | CD | CD |
11 | USB cable | USB cable |
12 |
| Matching Gel |
13 |
| Scrambler |
Ordering Information
BRI3300-M-CP-MP-P
| |||
Model (M) | Communication Port (CP) | Mother Patch-cord (MP) | Power Adapter (PA) |
M0: BRI3300S SM M1: BRI3300M MM 50um M2:BRI3300M MM 62.5um
| CP1: with USB port CP2: with RS232 port
| MP1A: FC/APC-FC/APC MP2A: FC/APC-SC/APC MP3: FC/APC-FC/PC MP4: FC/APC-SC/PC MP5: FC/APC-ST/PC MP6: others | PA1: USA PowerAdapter PA2: EU Power Adapter
|
1. Sandard warranty is 18 months.
2. Extended warranty is also available with additional cost.
