Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Diagnostic Tool > EUS-2000 Electronic Unit Injector and Pump Tester Device
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other
Certification:
CE
Applicable Models:
Delphi E3 dual-solenoid EUI, Siemens Piezo for Audi EUI, Cummins ISX/QSX, Scania 12L EUI, and other single solenoid EUI/EUPs(Detroit, Cummins, Caterpillar, DDC92, Iveco Cursor, Volvo, Scania, Audi, VW Seat, Skoda, Land Rover, John Deer, DDC/MTU S2000, Mercedes Benz, Mack,RenaultDAF, Deutz 2015, Deutz 1013,
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronic Unit Injectors (EUI) Electronic Unit Pumps (EUP) Fuel Injection EquipmentNegotiableMOQ: 1 Piece -
Electronic Unit Injector and Electrnic Unit Pump Repairing Tester CamboxNegotiableMOQ: 1 Piece
-
EUS-2000 Electronic Unit Injector and Pump Tester Device for Detroit CatNegotiableMOQ: 1 Piece
-
UIS UPS Electronic Unit Injector and Pump Cambox Tester EUS-2000NegotiableMOQ: 1 Piece
-
UIS UPS Cambox Tester for Single Solenoid and Dual Solenoid InjectorNegotiableMOQ: 1 Piece
Type
Other
Certification
CE
Applicable Models
Delphi E3 dual-solenoid EUI, Siemens Piezo for Audi EUI, Cummins ISX/QSX, Scania 12L EUI, and other single solenoid EUI/EUPs(Detroit, Cummins, Caterpillar, DDC92, Iveco Cursor, Volvo, Scania, Audi, VW Seat, Skoda, Land Rover, John Deer, DDC/MTU S2000, Mercedes Benz, Mack,RenaultDAF, Deutz 2015, Deutz 1013,
Brand Name
injectronix
Model Number
EUS-2000
EUS-2000 Repair Test Kits for EUP and EUI
Test an EUI or an EUP on a conventional pump test bench. Offer adapter kits for most EUIs and EUPs on the world market.

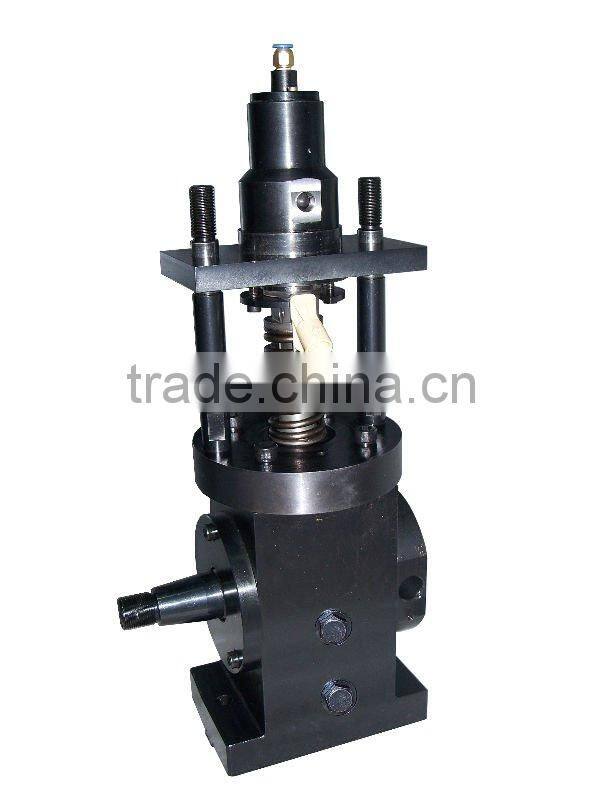

The EUS-2000 repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP). The tester consists of a mechanical cam box (CB-1000) with customer specified EUI/EUP adapter kits and a modular designed electronic controller (EU-2000). The CB-1000 cam box is driven by a standard high pressure fuel injection pump test bench. The EU-2000 controller is modular designed to fit customer’s applications for testing various EUI.s/EUPs.

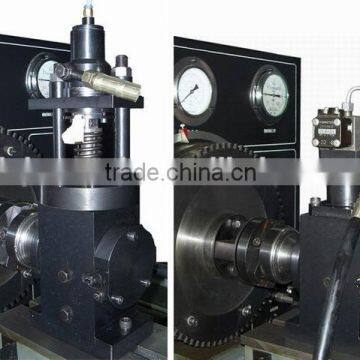

Testing an EUI Testing an EUP
The tester is capable to test EUI/EUP products for following brands of manufacturers.

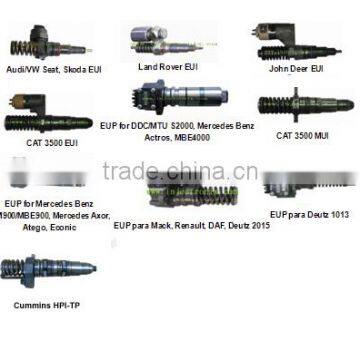

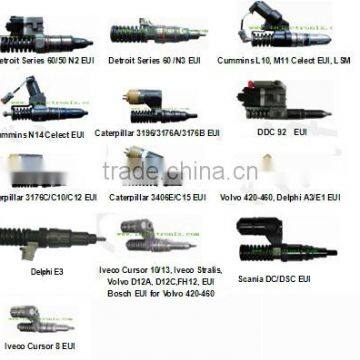

EUI/EUP Applications
Design Features
- One cambox for all major EUI/EUP models with corresponding adapters and camshafts
- Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench
- EU-2000 Controller, modular design
- Base system. Single solenoid EUI/EUP module, for
- Most of single EUI/EUP on the market
- Cummins CELECT EUI, (L10/M11/N14)
- Most of single EUI/EUP on the market
- Option. Dual-solenoid module for Delphi E3 EUI
- Option. Piezo EUI module for VW Piezo EUI
- Option. Response time measurement module
- Option. Cummins ISX EUI metering and timing control module
- Customer may upgrade EU-2000 by adding a few more optional modules themselves
- Adjustable Beginning of Injection (BOI) in crank angle degrees
- Adjustable injection period (PW) in crank angle degrees
- Base system. Single solenoid EUI/EUP module, for
- Engine standard cam lobe designs:
- Four levels of cam lifts
- Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams

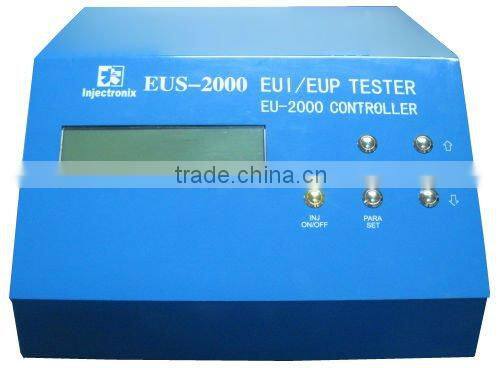

EUS-2000 Controller

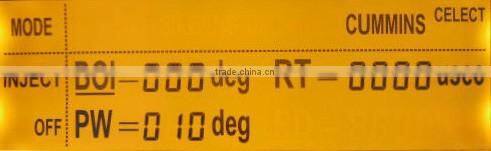

LCD Display
TP-2000 Modual for Cummins ISX EUI testing
- New Option. Cummins ISX EUI metering and timing control module kits, including
- Cummins HPI-TP electronic control module
- TP-2000 Hydraulic Module
