ASG-B Handhold ECU Timing Signal Generator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2005
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Handhold ECU Timing Signal GeneratorNegotiableMOQ: 1 Set -
ASG-B Handhold ECU Timing Signal GeneratorNegotiableMOQ: 1 Set
-
ECU Generador de Senal de Temporizacion de ManoUS$ 100 - 1,000MOQ: 1 Set
-
Mian Manfacture EUI Injectors Tester With Cambox ProfessionalUS$ 1,500 - 6,000MOQ: 1 Set
-
Manfacture EUI Injectors Tester With Cambox ProfessionalUS$ 1,500 - 15,000MOQ: 1 Set
Specifications
programmable engine ECU timing signal generator for testing an ECU without running the engineThe ASG-B ECU Timing Signal Generator is a portable device for testing and diagnosis an engine ECU on-the-site. ASG-B outputs crank and cam timing signals with user definable patterns. With the help of the ASG-B, an engine ECU can be tested without the need of running the engine.
Design Features
Two timing signals for each timing signal set
Crank timing signal
Cam timing signal
Engine speed range of the timing signals, 0-4000rpm
Pre-install 6 sets of timing signal patterns in the device
PC connection, series port
Two signal output patterns
Zero-crossing signals to simulate magnetic timing sensor outputs
TTL signals to simulate Hall Effect timing sensor outputs
High capacity rechargeable Lithium battery
Low power consumption
Better electro-magnetic compatibility
Software Feature
User friendly Windows PC interface
User definable timing signal patterns
Number of pulses
Number and angular position of missing or adding pulses
Angular position of the crank and cam timing signals
Display timing signal waveform on PC screen
Download 6 timing signal sets to ASG-B via PC series port

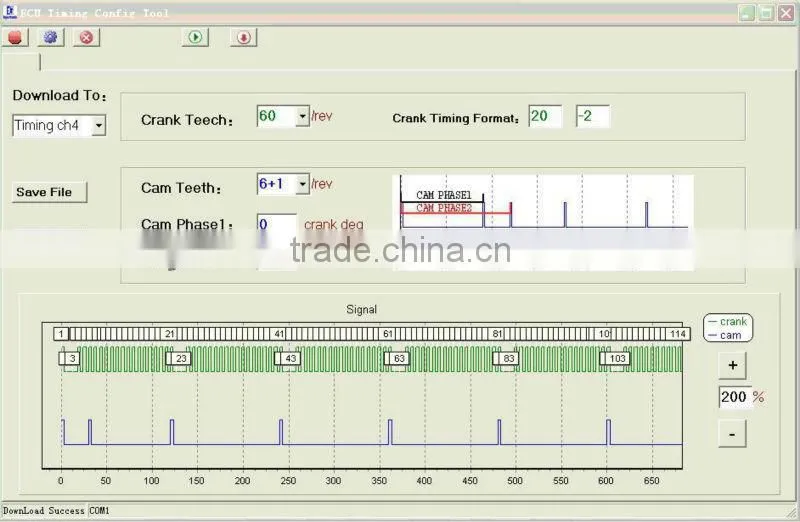

Windows Based ECU Timing Signal Waveform Edito
