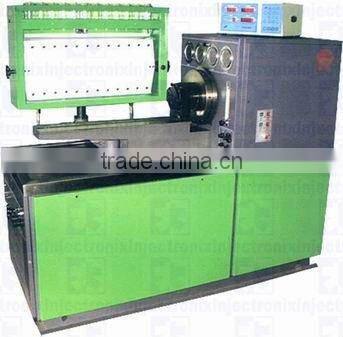

12PSB Series Diesel Pump Test Bench

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsMoney Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Diesel Pump Test	Voltage	12V/24V DC Power Supply
Power	3-Phase, 380V/50Hz, 380V/60Hz, or 230V/60Hz, 11, 15, 18.5 kW	Place of Origin	Beijing, China
Brand Name	Injectronix	Model Number	12PSB

Product Description

Specifications

Conventional diesel pump test bench.

12PSB Series Test Benches are the industry standard, general purpose test benches for diesel fuel injection pumps and designed to perform variety of diesel fuel system repairing tests. The test benches are able to test traditional mechanical in-line pumps and distributor pumps. With necessary electronics and adapting kits the test benches are also capable of testing electronic pumps and electronic fuel injection systems, such as common rail systems, electronic unit injectors (EUIs), electronic unit pumps (EUPs), electronic VE pumps, and electronic in-line pumps. Specification

AC Motor	3-Phase AC Induction Motor
Motor Speed Control	VFD(Variable Frequency Drive)Motor Controller
AC Power	3-Phase, 380V/50Hz, 380V/60Hz, or 230V/60Hz, 11, 15, 18.5 kW
Parameter Display Mode	Digital Display or LCD Display
Motor Speed Adjustable Range	0-4000 rpm
Fuel Delivery Measurement Cylinders	12
Measurement Graduates	150 and 45 cc
Fuel Injection Counter	Injection synchronized with pump speed
Pump Mounting Height – from Platform to Motor Shaft Center	125mm

Other Functions

12V/24V DC Power Supply

Preset of Ten Speeds

Digital Display of Temperature

Measure Internal Pressure of VE Pump

Measure Fuel Return Flow of Distributing Pump

Air Supply

Optional Add-On Electronics and Fixtures
Refrigerator type fuel cooler for fuel temperature control Common Rail Systems

High Pressure Pumps	# of Injectors	Injector Technology	Common Rail System Tester
Bosch CP1, CP2, CP3 Delphi CRSP Denso HP3,HP4	6	Solenoid	CRS-1001
Bosch CP1, CP2, CP3, Delphi CRSP Denso HP3,HP4 Siemens DCP	1	Solenoid/ Piezoelectric	CRS-3000
Denso ECD-U2	6	Solenoid	CRS-2000

Detailed description of CRS-1000, CRS-2000 and CRS-3000 refers to the respective pages. EUI/EUP

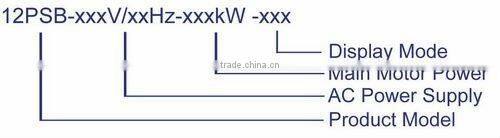

The EUI/EUP repair test fixture EUS-1001, including a cambox and other accessories, is designed to match with a standard pump test bench, such as 12PSB series, to perform repair tests on various models of EUIs and EUPs.Details refer to the pages for EUS-1001. Order Format
Part Number of Required Test Bench Model

Example

Digital Display

LCD Display
