Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > Hydraulic Breaker Manufacturer Price
Hydraulic Breaker Manufacturer Price
US$ 1 - 24,500
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EDT, EDT
Model Number:
EDT2200
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
European Hydraulic Breaker Edt Hb20g 30g Sb10 Sb40 Sb50 Sb60 Sb70US$ 1 - 24,500MOQ: 1 Set -
Hydraulic Breaker Hammer Sales ImportsUS$ 100 - 24,500MOQ: 10 Units
-
Hydraulic Hammer SalesUS$ 10,000 - 24,500MOQ: 1 Unit
-
Box-silenced Type Hydraulic BreakerUS$ 2,000 - 25,000MOQ: 1 Unit
-
Excavator Hydraulic Breaker Hot Sales Edt2000 Edt3000 Edt3200US$ 1,000 - 24,500MOQ: 1 Ampere
Place of Origin
Shandong, China
Brand Name
EDT, EDT
Model Number
EDT2200
After-sales Service Provided
Overseas service center available

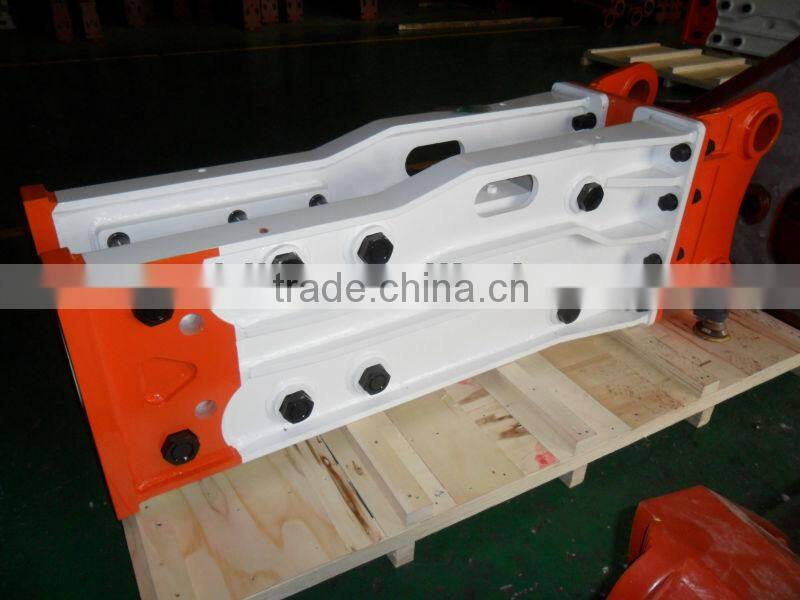

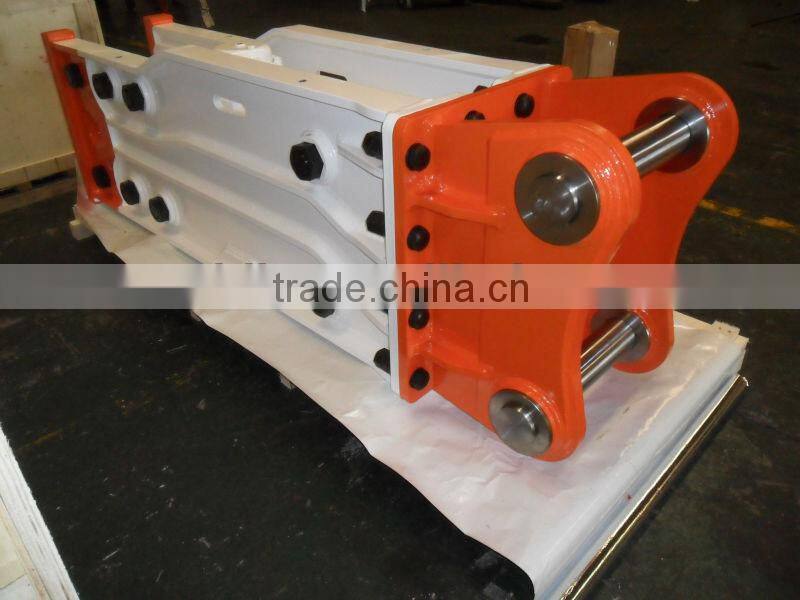

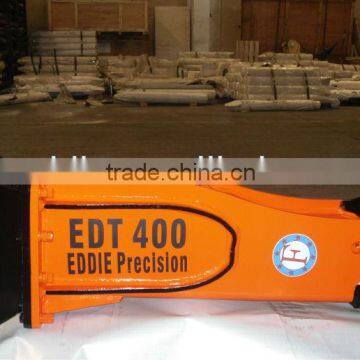

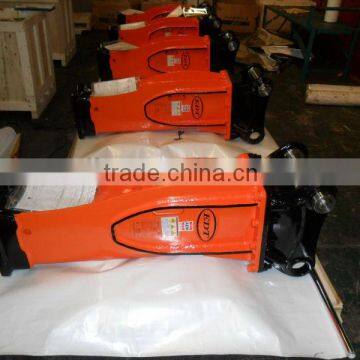

With more excellent design, more powerful impact and much lower price EDT hydraulic breaker rock breaker is your best option for your excavator from 0.8ton to 70ton
1) simpe design
2) long durability
3) high working efficiency,
4) lowest price
| EDT Hydraulic Breaker your | ||||||||||
| Model | Unit | EDT100 | EDT200 | EDT300 | EDT400 | EDT430 | EDT450 | EDT800 | EDT1600 | |
| Body Weight | kg | 46 | 63 | 87 | 155 | 220 | 281 | 471 | 629 | |
| Total | Side | kg | 70 | 90 | 120 | 250 | 380 | 510 | 765 | 1255 |
| Weight | Top | kg | 75 | 98 | 150 | 298 | 386 | 515 | 890 | 1250 |
| Box | kg | 102 | 126 | 152 | 295 | 375 | 571 | 861 | 1296 | |
| Length | Side | mm | 925 | 1050 | 1170 | 1415 | 1480 | 1735 | 1994 | 2007 |
| Top | mm | 1128 | 1257 | 1342 | 1700 | 1722 | 2110 | 2395 | 2604 | |
| Box | mm | 1135 | 1262 | 1342 | 1600 | 1860 | 2100 | 2326 | 2604 | |
| Working Pressure | kg/cm2 | 80-110 | 80-110 | 90-120 | 110-140 | 120-150 | 127-147 | 150-170 | 150-170 | |
| Oil Flow Range | l/min | 15-25 | 20-30 | 25-50 | 40-70 | 50-90 | 45-85 | 80-110 | 90-120 | |
| Impact Rate | bpm | 800-1400 | 700-1200 | 600-1200 | 500-900 | 400-800 | 400-800 | 350-700 | 400-530 | |
| Impact Energy | joule | 203 | 290 | 320 | 690 | 900 | 1300 | 2100 | 2900 | |
| Diameter of Hose | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | |
| Tool | Diameter | mm(inch) | 40(1.5) | 45(1.7) | 53(2.1) | 68(2.7) | 75(2.9) | 85(3.3) | 100(3.9) | 125(4.9) |
| Length | mm | 430 | 500 | 580 | 700 | 710 | 745 | 1055 | 1130 | |
| Weight | kg | 4 | 8 | 9 | 18 | 22 | 29 | 57 | 97 | |
| Bucket Range | m3 | ≤0.07 | 0.03-0.1 | 0.06-0.2 | 0.15-0.3 | 0.2-0.35 | 0.25-0.5 | 0.4-0.6 | 0.5-0.7 | |
| Carrier Weight | ton | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 4-7 | 6-9 | 7-14 | 10-15 | 15-21 | |
| Main Valve Type | —— | Inward | Inward | Inward | Inward | Inward | Inward | Inward | Inward | |
| Model | Unit | EDT2000 | EDT2100 | EDT2200 | EDT2200A | EDT3000 | EDT3200 | EDT3500 | EDT4500 | |
| Body Weight | kg | 840 | 858 | 930 | 963 | 1106 | 1303 | 1453 | 1940 | |
| Total | Side | kg | 1630 | 1656 | 1770 | 1803 | 2530 | 2440 | 2500 | 3788 |
| Weight | Top | kg | 1818 | —— | 1997 | 2030 | 2420 | 2700 | 2995 | 4100 |
| Box | kg | 1840 | —— | 1825 | 1858 | 2540 | 2635 | 2850 | 3990 | |
| Length | Side | mm | 2367 | 2390 | 2409 | 2409 | 2519 | 2760 | 2816 | 3176 |
| Top | mm | 2835 | —— | 2765 | 2765 | 3013 | 3260 | 3335 | 3799 | |
| Box | mm | 2687 | —— | 2828 | 2828 | 3020 | 3255 | 3395 | 3709 | |
| Working Pressure | kg/cm2 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | |
| Oil Flow Range | l/min | 130-150 | 120-150 | 120-180 | 120-180 | 150-190 | 180-240 | 200-260 | 210-290 | |
| Impact Rate | bpm | 400-800 | 325-410 | 350-500 | 350-500 | 350-700 | 300-450 | 250-400 | 200-350 | |
| Impact Energy | joule | 3588 | 3800 | 4200 | 4500 | 7000 | 8500 | 9000 | 12000 | |
| Diameter of Hose | inch | 1 | 1 | 1 | 1 | 1 | 1 1/4 | 1 1/4 | 1 1/4 | |
| Tool | Diameter | mm(inch) | 135(5.3) | 138(5.4) | 140(5.5) | 140(5.5) | 150(5.9) | 155(6.1) | 165(6.5) | 175(6.9) |
| Length | mm | 1250 | 1300 | 1300 | 1300 | 1300 | 1500 | 1500 | 1600 | |
| Weight | kg | 119 | 129 | 136 | 136 | 160 | 190 | 224 | 260 | |
| Bucket Range | m3 | 0.6-0.8 | 0.6-0.8 | 0.7-0.9 | 0.7-0.9 | 0.9-1.2 | 1.1-1.4 | 1.2-1.7 | 1.4-2.0 | |
| Carrier Weight | ton | 18-26 | 18-26 | 18-26 | 18-26 | 27-35 | 28-35 | 30-45 | 40-55 | |
| Main Valve Type | —— | Outward | Inward | Inward | Inward | Outward | Inward | Inward | Inward | |
