Home > Products > Control cable > Copper PVC Control Cable KVV Cable4x2.5mm2
Copper PVC Control Cable KVV Cable4x2.5mm2
- Guangzhou Shanghai Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Copper Conductor PVC Insulated PVC Sheathed Control Cable 4x4mm2
-
Copper Multicore Flexible Control Cable 4x6mm2
-
4 Cores Copper Flexible Control Cable 4x10mm2 -KVV Cable
-
PVC Insulation PVC Jacketed Flexible Control Cable 5x1mm2
-
Good Quality Copper Multicore Flexible Control Cable 5x1.5mm2
-
Good Quality Copper Multicore Flexible Control Cable 5x4mm2
Product Details
| Place of Origin | Sichuan, China | Brand Name | Xinfeilu | |
| Model Number | KVV4x2.5mm2 | Application | Mining | |
| Conductor Material | Copper | Jacket | PVC | |
| Insulation Material | PVC |
Product Description

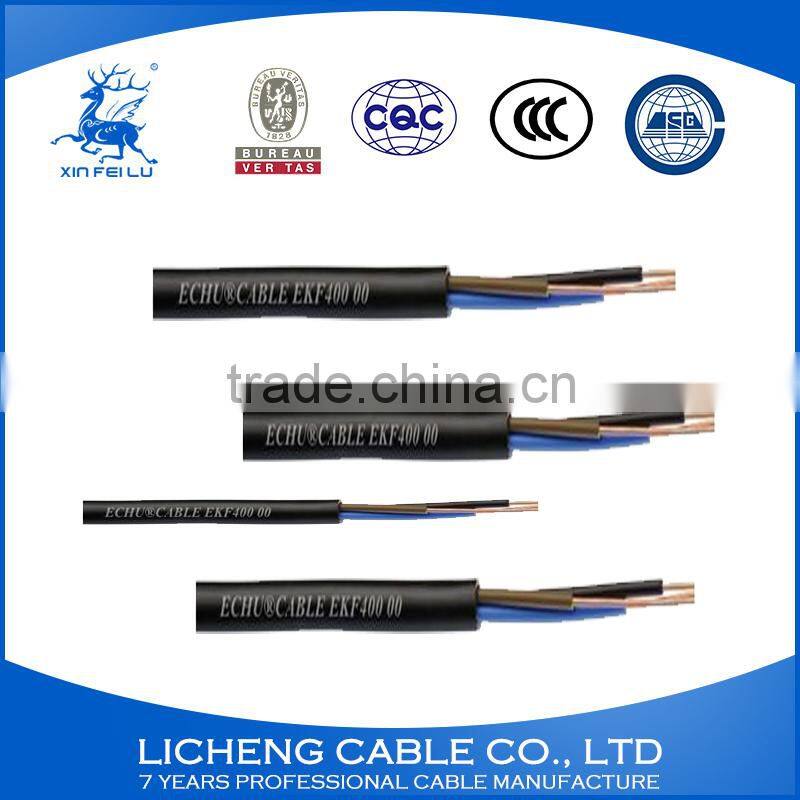

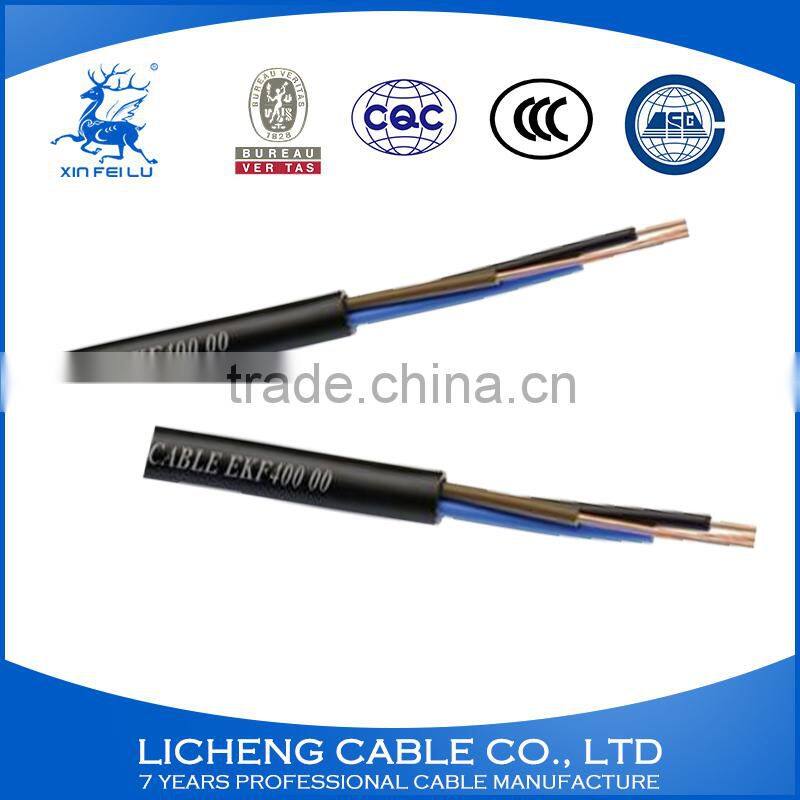

Copper PVC control cable KVV cable4x2.5mm2
Specifications
1.cable manufacture 2.good package 3. quick delivery 4. CCC,CE,ISO , BVcertification
Properties of PVC Power Cable
1.The long-time permissible working temperature of cable conductive core is not more than 70 degrees.
2.During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3.The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4.They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
Product Parameters:we also can produce the size you need
| core*niminal cross section(mm2) | conductor type | reference outdiameter(mm) | reference weight(kg/km) | the Max DC resistance in 20℃(Ω.km) | the Min DC resistance in 20℃(Ω.km) |
| 4*0.75 | 1 | 8.1 | 85 | 24.5 | 0.012 |
| 4*0.75 | 2 | 8.6 | 90 | 24.5 | 0.014 |
| 4*1 | 1 | 8.5 | 99 | 18.1 | 0.011 |
| 4*1 | 2 | 8.9 | 105 | 18.1 | 0.013 |
| 4*1.5 | 1 | 9.6 | 131 | 12.1 | 0.011 |
| 4*1.5 | 2 | 10.5 | 139 | 12.1 | 0.010 |
| 4*2.5 | 1 | 11.1 | 188 | 7.41 | 0.010 |
| 4*2.5 | 2 | 12.0 | 203 | 7.41 | 0.009 |
| 4*4 | 1 | 13.5 | 274 | 4.61 | 0.0085 |
| 4*4 | 2 | 14.0 | 292 | 4.61 | 0.0077 |
| 4*6 | 1 | 14.5 | 365 | 3.08 | 0.0070 |
| 4*6 | 2 | 14.9 | 387 | 3.08 | 0.0065 |
| 4*10 | 2 | 19.0 | 606 | 1.83 | 0.0065 |
Production flow
We own adwanced production line and professional workers,so you can trust us .
our warehouse
Package
The pacakage also can follow your requirement
Quality Test
To insure the quality of our products and the safety of customers, we arrange professinal person to test the products.
Certification
Since our campany established in 2009,we have got various of domestic certifications and foreign certification.
Exihibition
The application of our products
Our cable and wires are applied in much building construction and got good reputations
Our Company and our factory
Company introduction
Licheng cable is one of the best cable manufacturers,wo have our own factory,we own an advanced production line and testing equipment,professional engineers and skilled workers,we specialize in various wires and e on! It is right to choose us!
Our Principles:
1)Quality first, customer first, safety first
2)Better service, faster delivery
3)Equal and mutual benefit
4)Honesty and profession
Our service:
1.Swift and professional response
2.Patient and trusty
3.Severe quality control system
4.On-time delivery
5. If ome meter less, you will get tem meters compensation
Delivery time:
Usually, the delivery time is based on the quantity of the order, the delivery time means the period between the day on which the contract or sales conformation is made and the day on which the good is delivered to the dispatch port.
M.O.Q<Quantity<10000pcs the delivery time is 7-13days
10000mts<Quantity<20000pcs the delivery time is 13-20days
20000mts<Quantity<30000pcs the delivery time is 20-25days
30000mts<Quantity<50000pcs the delivery time is 25-30days
50000mts<Quantity the delivery time is 30days
FAQ
1.Q:Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
3.Q:How can I get some samples?
A:We are honored to offer you samples.
4.How does your factory do regarding quality control?
A:Quality is priority.We always attach great importance to quality controlling for to the every end.
