Changzhou Merry Gold Machinery & Electronic Co., Ltd.: Changzhou, Jiangsu, China; Main products: Electric Bicycle, Electric Scooter, Electric Car, Motor

Home > Products > Centre motor E bikes > mini folding electric bike motor mid drive

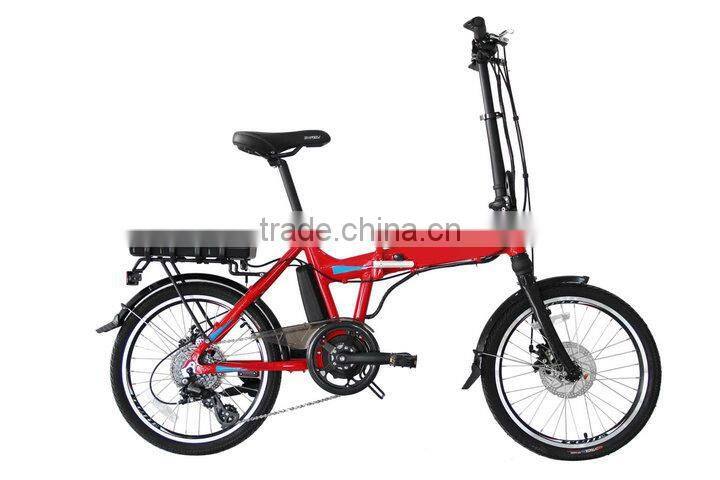

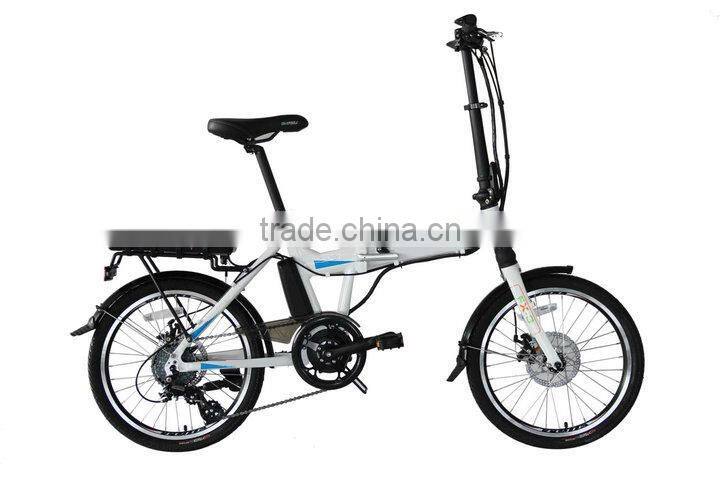

mini folding electric bike motor mid drive

FOB Price

Negotiable / Piece

20 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Wattage	200 - 250w	Voltage	36V
Power Supply	Lithium Battery	Wheel Size	Other, 26“
Motor	Brushless	Certification	CE
Frame Material	Aluminum Alloy	Foldable	Yes
Max Speed	30-50km/h	Range per Power	31 - 60 km
Place of Origin	Jiangsu, China	Brand Name	MerryGold
Model Number	YS-701

Product Description

Mid drive motor electric bicycle - different from the traditional bicycle and electric bicycle.
It effectively solves the weight of heavy electric bicycles, pedals do not move without electricity, bicycle ride laborious and other key issues.
This is a new style electric bicycle, riding with the size of the pedal power automatically change the motor speed and torque, riding makes you feel very relaxed and happy, no electricity when riding without any resistance, just like a traditional bicycle.

1, strong power and climbing ability.

2, stable gravity and high safety factor.

3, not afraid of no electricity, like lightweight high-end bikes, very easy to ride.

4, concentric coaxial, two-way separation, riding without any resistance.

Frame	20" aluminum 6061 mtb
Front fork	Aluminum unibody suspension
Stem	Aluminum
Brake lever	Aluminum power off brake
Brake	Front&Rear Tektro disc brake
Shift lever	Microshifter intergrated thumb throttle
Front throttle	NIL
Rear throttle	Shimano Altus RD-M310
Freewheel	Shimano CS-HG20-8 12-32T 8-Speed
Chain	KMC 8-Speed
Crankset	48T
Hub	Joytech Disc hub
Rim	Alex double aluminum alloy
Tire	CST 20"x1.75"
Motor	36V 250W
Battery	Samsung li-ion 36V10AH
Range	60-80KM(with pedals)
N.W.	22.5KG
Drive mode	PAS/Thumb Throttle

Photo details :

You may also like this:

buy 36v 10ah electric bike li ion battery electric bike (TDB01Z-633)

29 inch MTB 500W e road electric bike

Our partners :

Company Information

Our Services

1. Sample is accetpable

2:1% Free spare parts

3: Battery Waranty 18 months

4:LOGO design free for full cotainer

FAQ

+ How fast do MG Electric bike go ?

For our 250W e-bikes and electric bike conversion kits, 25km/hr (EN15194 Standard, applicable in all states and territories). Our off road kits are capable of much higher speeds.

+ How far can you go once full charge ?

The range depends on which MG product you’re on, riding style and terrain. If you are going up hills often, you will get less distance. The ranges vary from 30km up to 80km. The more you pedal to assist the e-bike, the further it will go.

+ Do MG e-bikes make noise ?

No. They are not loud at all. Compared to automobiles or motorcycle engines, an electric bike is virtually silent.

+ Will my MG electric bike go up hill ?

Yes, especially with motor-assist. It will give you more power just when you need it.

+ Do electric bikes charge when you pedal them ?

No, this is not the purpose of having an electric bicycle. The purpose is not to have to pedal harder to charge the bike battery. Instead, the aim is to pedal less and make it easier for you to get around.

Electric bikes don’t have this feature because the effort that the rider puts in to pedaling can only go so far. Either the effort from pedaling is used to assist the bikes motion, or it could charge the battery. Unfortunately there’s no such thing as ‘free energy’ so you could image pedaling an e-bike that is also trying to charge the battery would make it very hard to pedal, as you’d be battling against the resistance of an added generator (not to mention the weight and cost) and also trying to assist the bikes motion. The most efficient use of the rider’s effort is to assist the motor in moving the bike, extended the range.

+ Can the battery be removed on the e bikes ?

Yes the batteries are all locked and the key unlocked the battery for easy removal in 10 seconds.

+ Does MG e bike need servicing ?

There is no more servicing than a standard pedal bike. All of the electrics are sealed so no maintenance is required over and above a standard bike.

...
