Automatic Viscosity liquid Filling Machine

Specifications

Automatic Viscosity liquid Filling Machine
Optional device:
- Diving function;
- Self clean function;
- Heating & Agitating.

  Automatic Viscosity liquid Filling Machine

Main characteristic

Optional device:

- Diving function;

- Self clean function;

- Heating & Agitating.

 This automatic filling piston filler is mainly used for different viscosity liquid and variety of shape containers.  It is common used in chemical, food, pharmaceutical, oil and other industries.  The main machine is composed of  piston filler, inside hopper for material storage.  It can be connected with a capping machine, labeling machine, date/ batch coding machine and in-line working table to perform a complete production line.

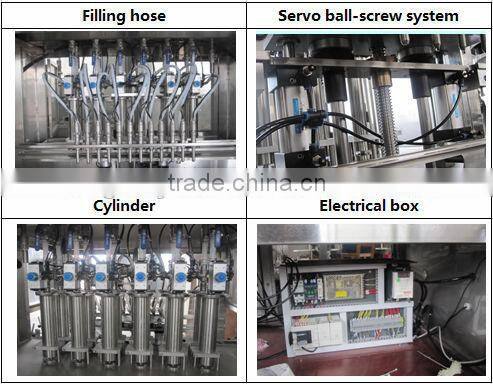

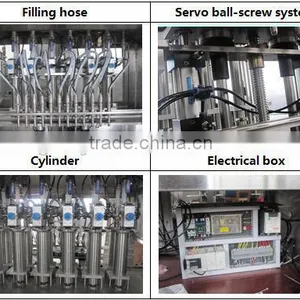

1.The filling machine adopts servo ball-screw system to drive the piston cylinder, which can fill high viscosity material, such as Oil, Sauce, Ketchup, Honey, Lubricant oil, butter, body lotion, shampoo, etc;

2.According to production request, the machine inside hopper can equips Heating & Agitating device, help to melt & stir evenly the different materials.  The max heating temperature is 40 °C.

3.If filling material is a foamy liquid or the container opening is very small, diving function could be added to sure no overflowing and stable filling.

4.Machine automatic self-clean function is optional.  Use the pneumatic diaphragm pumps draw the clean solvent

5.The PLC programmable system as applied, and use color touch screen to form the control center, automatically adjust the filling speed. The control center language can be setted to English, Latin, Polish, Japanese, Chinese, Korean, etc.

6.The stainless steel, non-poisonous & anti-corrosive PTEF hose are applicable for excellent durability and sanitation compliance. Its frame is made of 304 stainless steel and the 316 quality stainless steel used for parts exposed to filling material. The whole machine is designed according to GMP standards, is easy to dismantle, clean and maintain. Machine is equipped with safely protection, environmental, sanitary, and is adapted to various of working places.



Technical Parameters:

Machine Code	40 ml ~ 500ml
	CCG500-4B	CCG500-6B	CCG500-8B	CCG500-12B	CCG500-16B	CCG500-20B
	100 ml ~ 1000ml
	CCG1000-4B	CCG1000-6B	CCG1000-8B	CCG1000-12B	CCG1000-16B	CCG1000-20B
	200 ml ~ 2000ml
	CCG2000-4B	CCG2000-6B	CCG2000-8B	CCG2000-12B	CCG2000-16B	CCG2000-20B
	300 ml ~ 3000ml
	CCG3000-4B	CCG3000-6B	CCG3000-8B	CCG3000-12B	CCG3000-16B	CCG3000-20B
	500 ml ~ 5000ml
	CCG5000-4B	CCG5000-6B	CCG5000-8B	CCG5000-12B	CCG5000-16B	CCG5000-20B
Remarks	- In the machine code, number behind “CCG” means size of cylinder, number behind “-” means no. of filling nozzle. - Cylinder size and no. of filling nozzles can be custom-made according to customer production request.



Filling Nozzles	4 heads	6 heads	8 heads	12 heads	16 heads	20 heads
Filling Speed (Tests by 2100ml water)	≤ 1500 BPH	≤ 2000 BPH	≤ 3200 BPH	≤ 4500 BPH	≤ 6000 BPH	≤ 7500 BPH
Filling Volume	: 50ml ~ 5000ml
Voltage	: 3 phase 4 wire, 220V/380V
Air Pressure	: 0.1010-0.610Mpa
Air Consumption	: 0.6 ~ 0.9 m3/min
Material	: Stainless Steel 316 & 304 (upon request)
Precision	: ≤±1%



Electrical Allocation:

1.Touch screen: Touchwin/ Canada

2.PLC system: Schneider/ France

3.Valve: AIRTAC/ Taiwan

4.Sensor: Omron/ Japan

5.Switch: brand from the Netherlands

6.Button: Schneider/ France

7.Sever Motor: TECO/ Taiwan

8.Reducing box: VGM/ Taiwan

- Technical guidance & Pre-maintain;

- 1 year quality warranty and supply more set wearing parts;

- Able to send engineer to maintain. (Hotel & delivery fee paid by customer);

- 24 hours/ 365 days online technical service;

- Welcome to send samples for testing.



- Outside: Standard Export Wooden Case Pack

- Inner: Stretch Film
