Easy operation digital rotational viscosity measurement
| Model | NDJ-5S | NDJ-8S | DV-1 |
| Measurement range | 10-1× 105 mpa. s | 10-2× 106 mpa. s | 1-2× 106 mpa. s |
| Rotor specification | 1, 2, 3, 4# | ||
| Rotating speed of rotor | 6 / 12 / 30 / 60 rpm | 0.3 / 0.6 / 0.5 / 3 / 6 / 12 / 30 / 60 rpm | |
| Automatic switch | free selection of proper rotating speed or rotor number. | ||
| Stable cursor | square cursor fully charged displayed when reading basically stable | ||
| Measurement tolerance | ±2% newtonian liquid | ||
| Power | AC (220V ± 10%, 50Hz ± 10%) | ||
| Working condition |
temperature: 5-35 ℃ Relative humidity: no more than 80% |
||
| Outline dimension | 370x325x280 mm | ||
| Net Weight | 6.8kg | ||

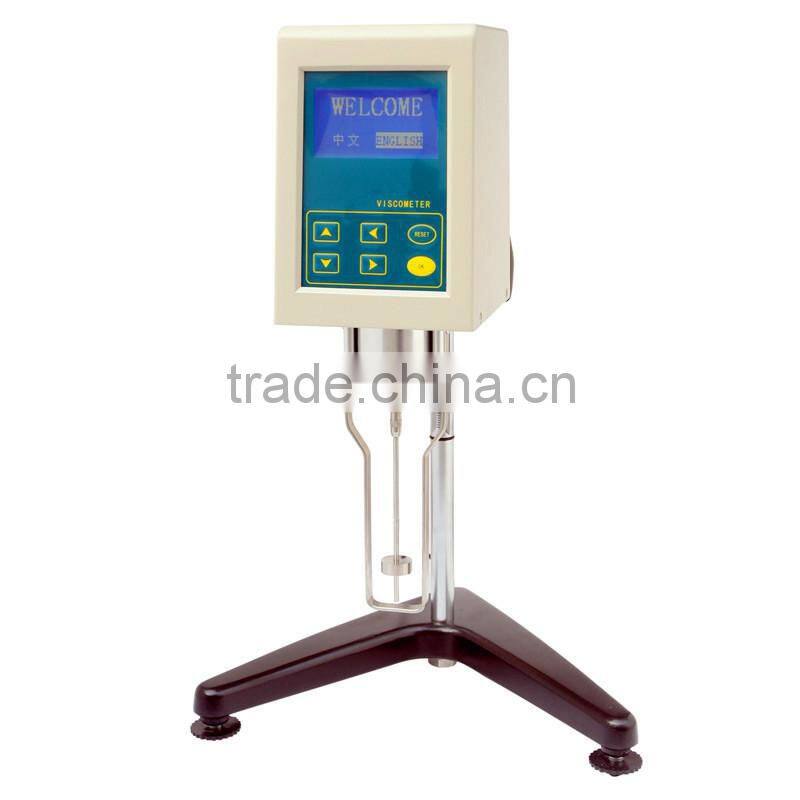

DV-1
Feature:
Speed of DV-1 digital rotational viscometer is given by programmable motor in advance with relative program, and rotation of rotor is driven by torque sensor. When rotor suffers from torsion of viscous resistance and balance force of the torque sensor and achieves balance, the indication displayed after processing by microprocessor is the liquid viscosity.
Therefore, it brings great convenience to users. Fast operation, humanized display screen and 4 standard rotors.
Function:
DV-1 digital rotational viscometer is a digital instrument to monitor and control quality stability in production process with random temperature display, auto-search and RS232 interface designed with the microprocessing technology of single chip microcomputer, which is applied to solvent adhesive, emulsion, biochemical preparations, paint, petroleum coatings, cosmetics, ink, paper pulp and starch.

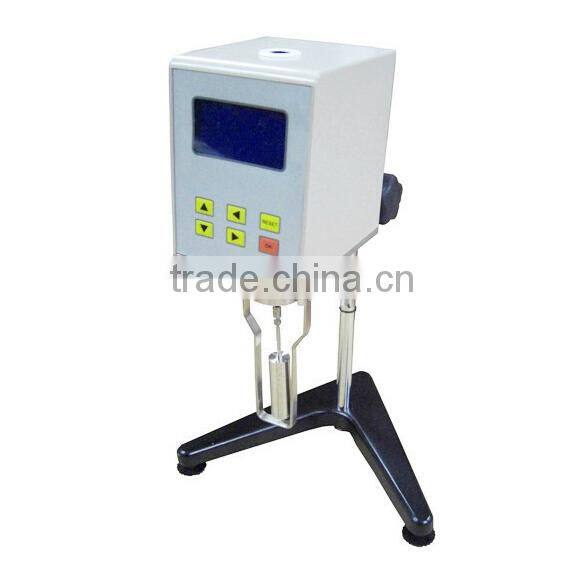

NDJ-5S, NDJ-8S
Feature:
NDJ5S/8S is a new upgrading product of our rotational viscometers. The adoption of advanced mechanical design technology, manufacturing process, microcomputer control technology guarantees accurate data collection, ultrabright blue backlight LCD display guarantees clear data display. With the microcomputer technology, it is easier to set measuring span(rotor number and rotating speed), take digital process of the data measured by sensor, and clearly display rotor number, rotating speed, viscosity value of the tested liquid and it's fullscale percentage on the screen. Besides, its automatic transmission is set for free selection of proper rotating speed or rotor number.
Function:
This instrument is an instrument to measure absolute viscosity of Newton liquid as well as apparent viscosity of nonNewton liquid featured by high flexibility, reliable test result, easy operation and beautiful appearance, which is widely applied to grease, paint, plastics, drugs, decorations, coatings and detergent. In addition, NDJ5S/8S is also added English/Chinese Interface for user's selection.

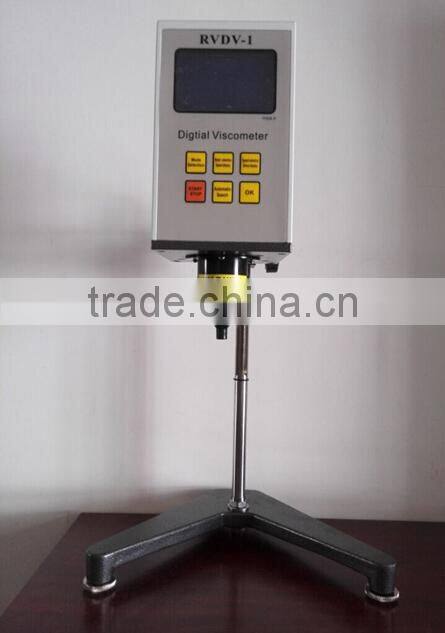

RVDV-1
Model |
RVDV-1 |
Measurement range |
10~13,000,000 mpa.s |
Rotor specification |

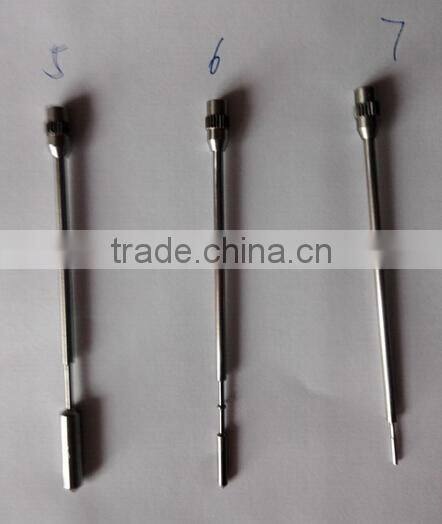

1, 2, 3, 4, 5, 6, 7# |
Rotating speed of rotor |
Speed: 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm, totally eight choices. Standard equipped rotors: No.1, No.2, No.3, No.4 Speed: 0.5 / 1 / 2 / 2.5 / 4 / 5 / 10 / 20 / 50/ 100 rpm, totally ten choices. Standard equipped rotors: No.1, No.2, No.3, No.4 Speed: 0.5 / 1 / 2 / 2.5 / 4 / 5 / 10 / 20 / 50/ 100 rpm, totally ten choices. Standard equipped rotors: No.5, No.6, No.7 |
Interface |
No |
Automatic switch |
Free selection of proper rotating speed or rotor number. |
Stable cursor |
Strip-typecursor fully charged displayed when reading basically stable |
Measurement tolerance |
± 2%(newtonian liquid) |
Power |
AC (220V ± 10%, 50 Hz ± 10%) |
|
Working condition |
Temperature5-35℃ Recommended ambient temperature 20℃ |
Outline dimension |
95x130x155mm |
Packing |
475x220x375mm |
Net weight |
2kg (not including the pedestal) |
Packing Details:
If you need, I will send operation manual to your email.
