2015 hot seller aisi 304 stainless steel sheets in zhejiang
Type 304 Stainless Steel is the most widely used of the austenitic (chromium/nickel) stainless steels. In the annealed condition it is essentially non-magnetic and becomes slightly magnetic with the application of cold work. These alloys represent an excellent combination of corrosion resistance and fabricability.
Sheet,Coil, Strip
Type 304 – ASTM A240, ASTM A666, AMS 5513
Chemical equipment and piping, heat exchanger components, dairy and food handling equipment and utensils, cryogenic vessels and components, architectural and structural applications exposed to non-marine atmospheres
Chemical Composition: (Per ASTM A240)
Element |
Type 304 |
Type 304L |
Carbon |
0.07Max |
0.030 Max |
Manganese |
2.00Max |
2.00 Max |
Sulfur |
0.030 Max |
0.030 Max |
Phosphorus |
0.045 Max |
0.045 Max |
Silicon |
0.75 Max |
0.75 Max |
Chromium |
17.5 to 19.5 |
18.0 to 20.0 |
Nickel |
8.0 to 10.5 |
8.0 to 12.0 |
Nitrogen |
0.10 Max |
0.10 Max |
Mechanical Properties: (Per ASTM A240, A666)
Type |
Yield Strength 0.2% offset (KSI) |
Tensile Strength (KSI) |
% Elongation(2" Gauge length) |
Hardness Rockwell |
304 Ann |
30 min. |
75 min. |
40 min. |
HRB 92 max. |
304 ¼ Hard |
75 min. |
125 min. |
12 min. |
HRC 25-32 (typical) |
304 ½ Hard |
110 min. |
150 min. |
7 min. |
HRC 32-37(typical) |
304L Ann |
25 min. |
70 min. |
40 min. |
HRB 92 max. |
304L ¼ Hard |
75 min. |
125 min. |
12 min. |
HRC 25-32 (typical) |
304L ½ Hard |
110 min. |
150 min. |
6 min. |
HRC 32-37 (typical) |
Physical Properties: (annealed)
|
|
304 & 304L |
Density (lb./ in^2) @ RT |
|
0.29 |
Modulus of Elasticity in Tension (psi x 10^6) |
|
28.0 |
Specific Heat (BTU/o F/lb.) |
32 to 212 oF |
0.12 |
Thermal Conductivity (BTU/hr/ft^2/ft) |
212oF |
9.4 |
|
932oF |
12.4 |
Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F) |
32 to 212oF |
9.2 |
|
32 to 600oF |
9.9 |
|
32 to 1,000oF |
10.2 |
|
32 to 1,200oF |
10.4 |
Electrical Resistivity (micro ohms - cm) |
at 70oF |
72 |
Melting Point Range (oF) |
|
2550 to 2650 |
Oxidation Resistance - Continuous Service(oF) |
|
1,650 |
Oxidation Resistance - Intermittent Service(oF) |
|
1,500 |
Our products are according to International Standard AISI/SUS(JIS). Our main products are focusing on Cold Rolled Stainless Steel Coils/Sheets. To be able to meet per request from the customers, we are equipped with machineries in house which makes delivery on time with material ready for use and manufacture when arrived at your door.
Type |
Stainless steel plate/Stainless steel sheet/stainless steel coil/stainless steel strip |
Size/thinckness |
0.3mm-100mm |
Widthness |
400mm-3000mm |
Length |
1000mm-6000mm or as customer's requirement coils |
Brand name |
LISCO TISCO BAOSTEEL ZPSS AND OTHER WELL KNOWN MILLS |
Standard |
ASME, ASTM, EN ,BS,GB,DIN, JIS etc |
Material |
201,202,301, 304,304L,316,316L,317L,321,309s,310S,410,410S,420,430,904L etc |
Application range |
Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy, Medical equipment, fertilizer etc |
Edge |
Mill Edge/ Slit Edge Round Edge is available upon request
|
Surface treatment |

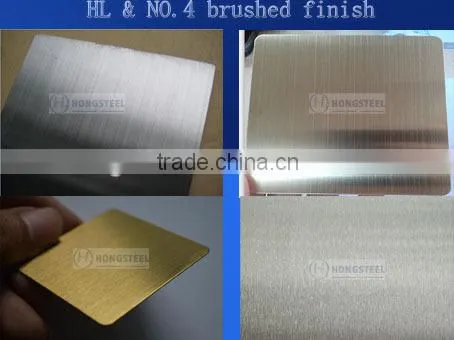

2B,BA,NO.4,NO.8,8K,mirror,checkered,embossed,hairline,sand blast, brush, etching, vibration, etc ... |
Sheets Packing |
Export Packing with waterproof and corner protection on Skid or Pallets. |
Strips Packing |
Waterproof packing with Eye to Sky or Eye to Horizontal. |

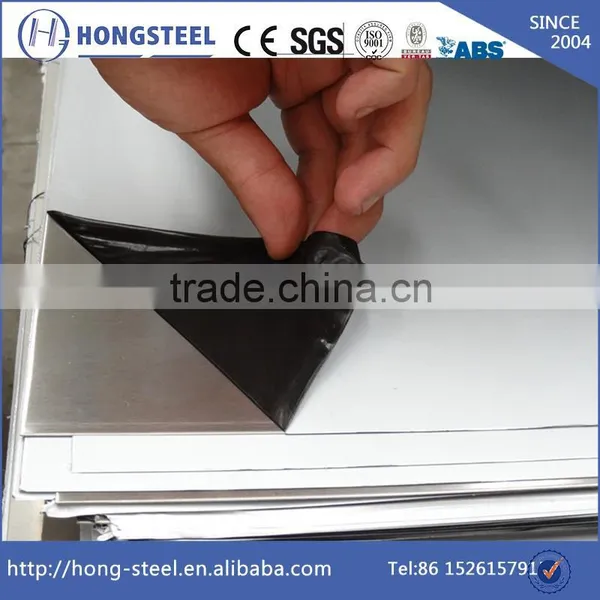

Film protection coating |
Black/White and Blue Film Coating is also available. |
Delivery time |
about 10-15 days after payment or as contract |
Quality |
prime |
Productivity |
1000 tons/month |
Note |
We can produce other standard and specifications as the customers’ special requirements.
|

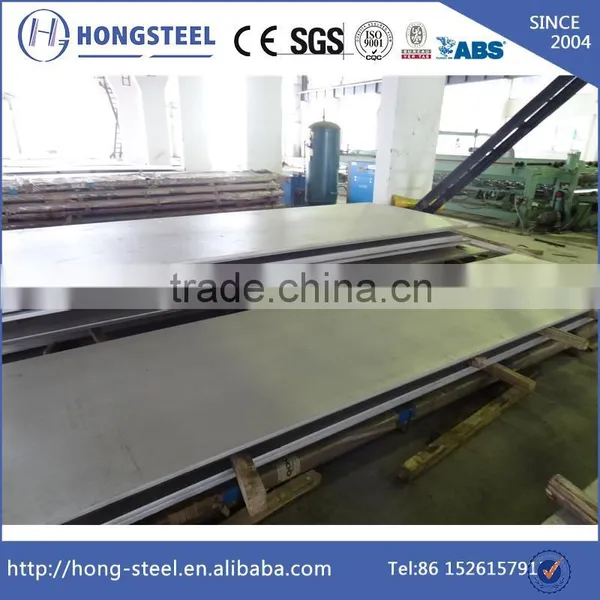

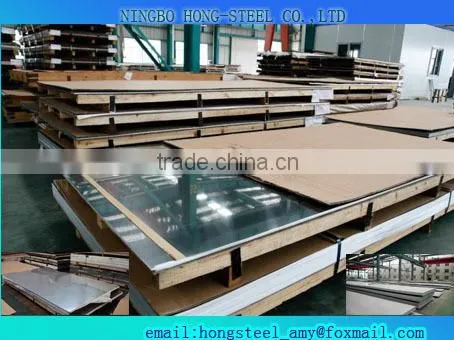

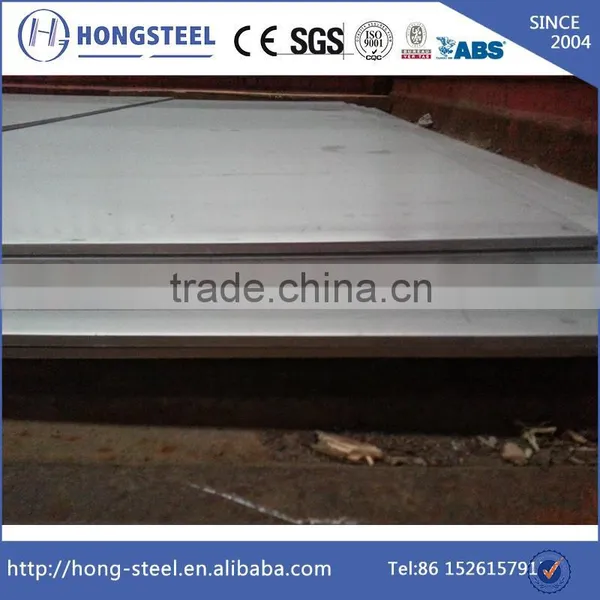

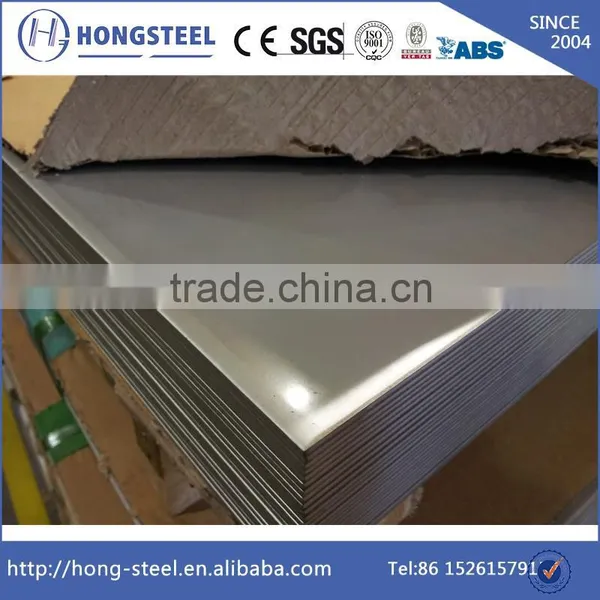

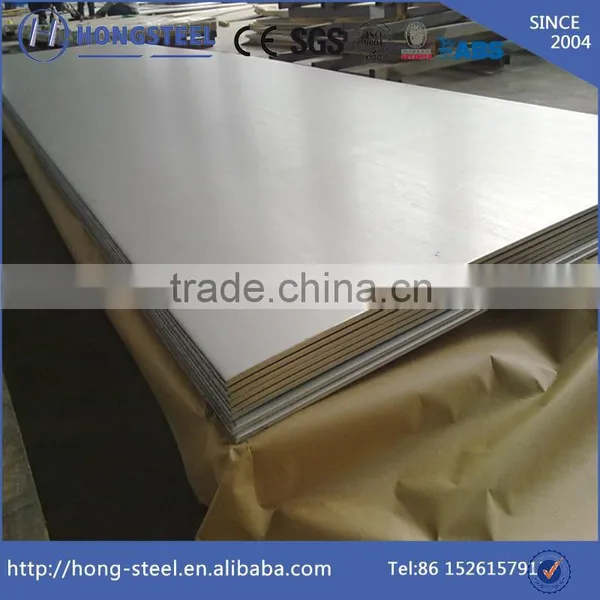

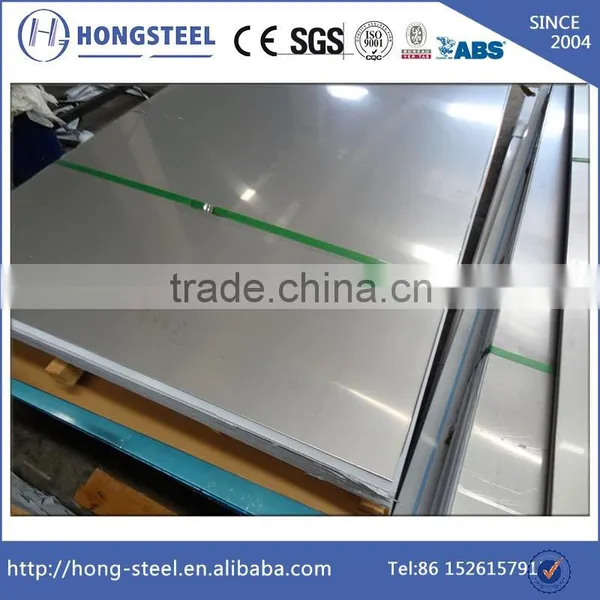

Product pictures:
| Packaging Detail: | Standard export package with water proof paper+metal pallet+angle bar+steel strip, or as required. |
| Delivery Detail: |
10-15 working days
|

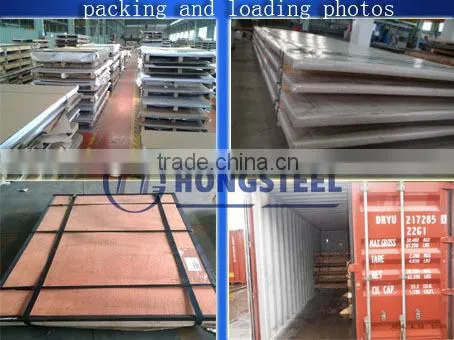

Loading pictures:
Equipment Pictures:
Our expertise has enable us to ensure finest
Stainless Steel Sheet 304 304L
by subjecting our products to stringent quality control measures during each stage of production and while dispatch. We sincerely welcome all relevant friends all over the world to come for visit and cooperation!
