China duplex 2205 Stainless Steel sheet factory price
Ningbo hong-steel co.,ltd has an extensive inventory of 2205 stainless steel plate in thicknesses from 3/16" through 3". The yield strength is about twice that of austenitic stainless steels, thus allowing a designer to save weight and making the alloy more cost competitive when compared to 316L or 317L.
Alloy 2205 (UNS S32305/S31803) is a 22% chromium, 3% molybdenum, 5-6% nickel, nitrogen alloyed duplex stainless steel with high general, localized, and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
Alloy 2205 provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.
General Properties
Alloy 2205 is a 22% Chromium, 3% Molybdenum, 5-6% Nickel nitrogen alloyed duplex stainless steel with high general, localized and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
Alloy 2205 provides pitting and crevice corrosion resistance superior to 316L or 317L austenitic stainless steels in almost all corrosive media. It also has high corrosion and erosion fatigue properties as well as lower thermal expansion and higher thermal conductivity than austenitic.
The yield strength is about twice that of austenitic stainless steels. This allows a designer to save weight and makes the alloy more cost competitive when compared to 316L or 317L.
Alloy 2205 is particularly suitable for applications covering the -50°F/+600°F temperature range. Temperatures outside this range may be considered but need some restrictions, particularly for welded structures.
Duplex Applications
Chemical processing, transport and storage,
Oil and Gas exploration and processing equipment,
Marine and other high chloride environments,
Pulp and paper digesters, liquor tanks and paper machines.
Chemical Analysis
Typical values (Weight %)
| C | Cr | Ni | Mo | N | Others |
| 0.020 | 22.1 | 5.6 | 3.1 | 0.18 | S=0.001 |
| PREN = [Cr%] = 3.3 [Mo%] = 16 [N%] ≥ 34 | |||||
Mechanical Properties
Mechanical Properties at Room Temperature
| ASTM A 240 | Typical | |
Yield Strength 0.2%, ksi |
65 min. | 74 |
Tensile Strength, ksi |
90 min. | 105 |
Elongation % |
25 min. | 30 |
Hardness HB |
293 max. | 256 |
Tensile Properties at Elevated Temperatures
Temperature °F |
122 | 212 | 392 | 572 |
| Yield Strength (0.2%), ksi | 60 | 52 | 45 | 41 |
| Tensile Strength, ksi | 96 | 90 | 83 | 81 |
Physical Properties
| Temperature °F | 68 | 212 | 392 | 572 | |
| Density | lb/in3 | 0.278 | -- | -- | -- |
| Modulus of Elasticity | psi x 106 | 27.6 | 26.1 | 25.4 | 24.9 |
| Linear Expansion (681T4F-T) | 10-6/°F | -- | 7.5 | 7.8 | 8.1 |
| Thermal Conductivity | Btu/h ft. °F | 8.7 | 9.2 | 9.8 | 10.4 |
| Heat Capacity | Btu/lb/°F | 0.112 | 0.119 | 0.127 | 0.134 |
| Electrical Resistivity | in x 10-6 | 33.5 | 35.4 | 37.4 | 39.4 |
NINGBO HONG-STEEL CO.,LTD has been certified to the ISO 9001:2008 Standard. For More Information, Also, see below for our Quality Pledge.
Service and Quality is ingrained in our business.
- We pledge to keep our customers happy. We will be responsive and flexible to meet your specific material and delivery requirements.
- We pledge to continuously improve our processes. We constantly improve our business practices to ensure that the customer is the center of our operations.
- We pledge to include & invest in our people. We continuously train our service teams so that we can serve as your stainless steel experts.
- We pledge to say what we do and do what we say.
- We pledge to do it right the first time.
ANY INQUIRY CALL 86 15261579158 or send your mail to yolanda.na(@)
Products are packed and labeled according to the regulations and customer's request. Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

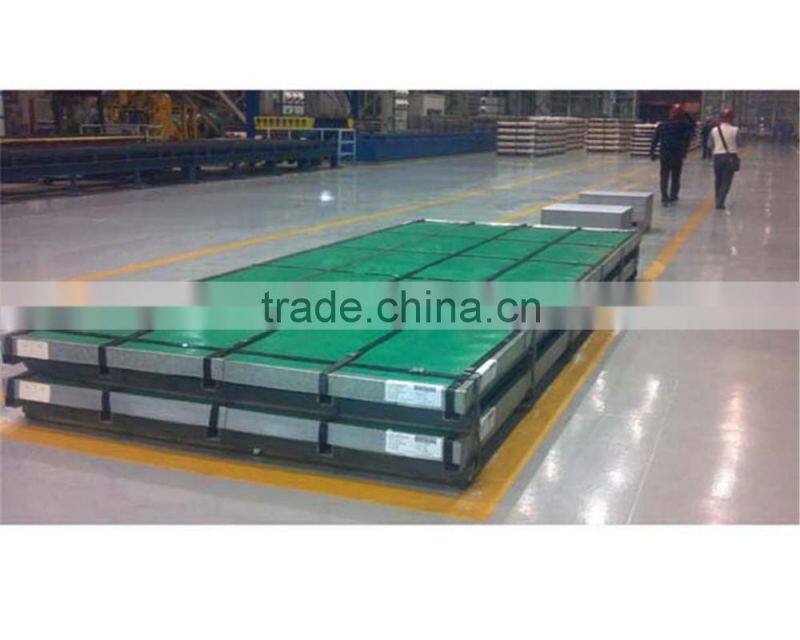

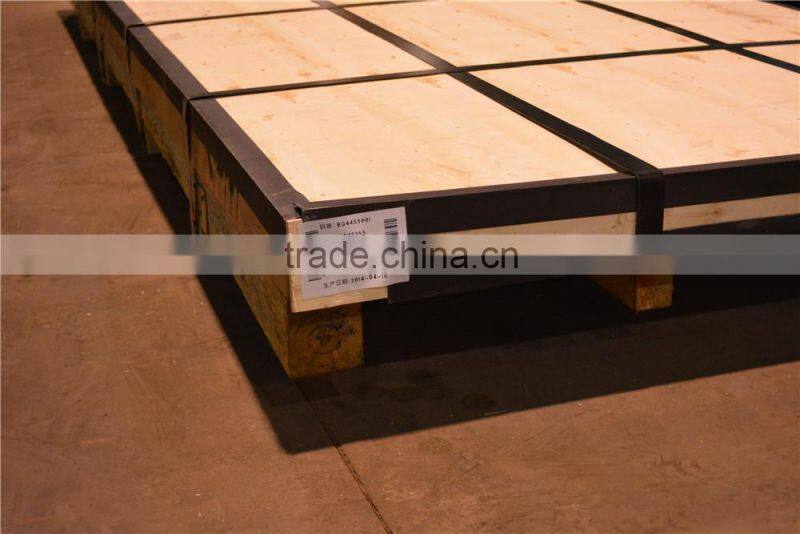

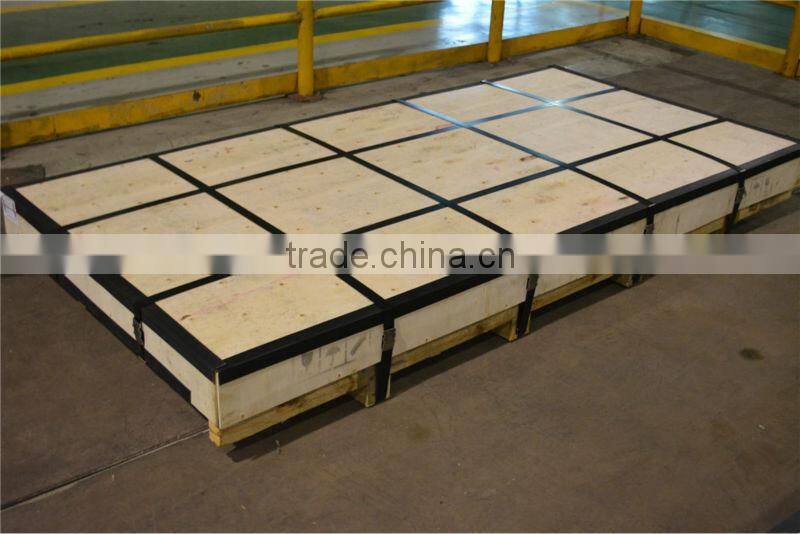

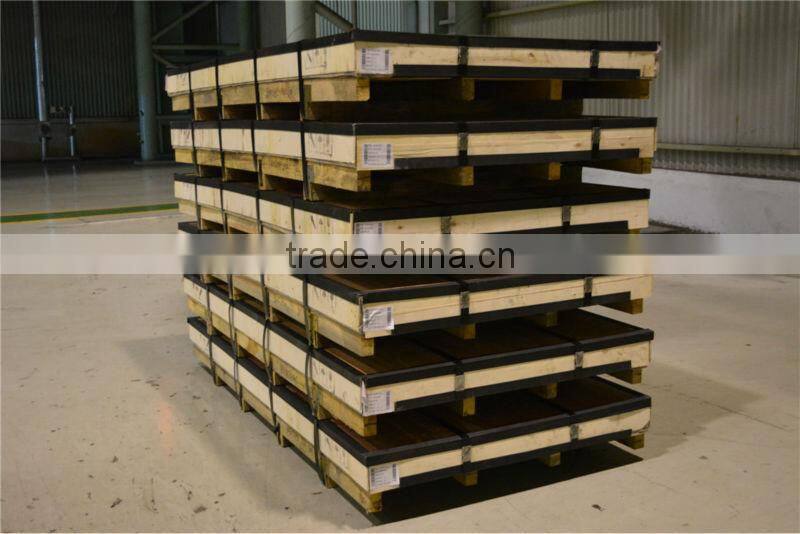

see the packing photos in our factory :
1) Transportation speed is quick
2) High quality , quantity is with preferential treatment
3) We can cut stainless steel sheet in any shapes
4) Famous stainless steel company in China and overseas.
5) Strong ability to supply
6) Branded stainless steel
7) More than 200 patterns
8) Bottom price
9) Reliable quality and service
10) Buyer's specifications accepted
11) Experienced R & D Department
We supply ss sheet coil/bars,pipe and fittings, tubing, valves, flanges, bars, sheet and forgings with numerous worldwide sources for limitless applications. We specialise in providing products in exotic materials such as duplex, super duplex, 6% molybdenum stainless-steels, titanium, copper nickel and nickel alloys.
Industries we deliver to include the offshore petrochemical segment, geothermal, chemical manufacturing, aerospace, desalination, power plants, water treatment facilities and more. Our customers are worldwide, and we handle everything from one-off emergency deliveries to complex, long-ranging project installations.
- Company Name: Ningbo Hong-Steel Co., Ltd.
- Website: https://img13.fr-trading.com
- Contact :Amy
- Mobile Phone:
- 15261579158
- Address:
- Economic and Technological Development Zone,BeiLun NINGBO
- Zip:
- 315040
- Country/Region:
- China (Mainland)
- Province/State:
- Zhejiang
- City:
- Ningbo
