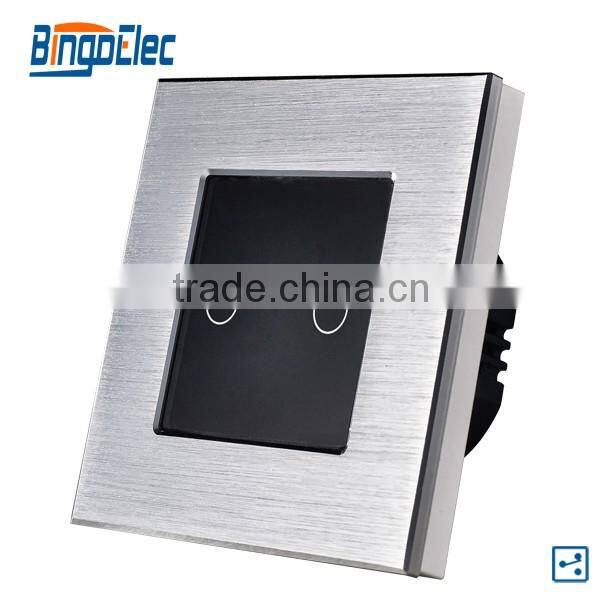

2 Gang Tempered Glass Panel Intelligent Wall Switch

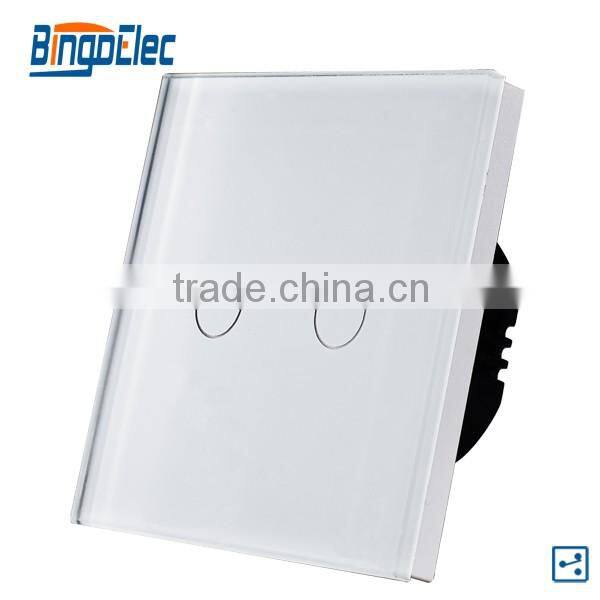

2 Gang Tempered Glass Panel Intelligent Wall Switch photo-1
2 Gang Tempered Glass Panel Intelligent Wall Switch photo-2

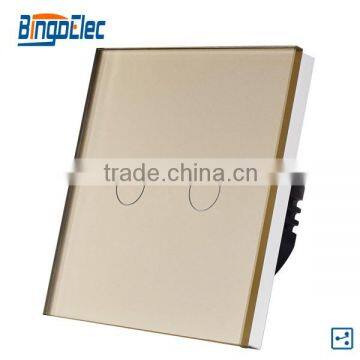

2 Gang Tempered Glass Panel Intelligent Wall Switch photo-3
US$ 6.5 - 10 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BINGO ELEC
Model Number:
T1-T2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name BINGO ELEC
Model Number T1-T2

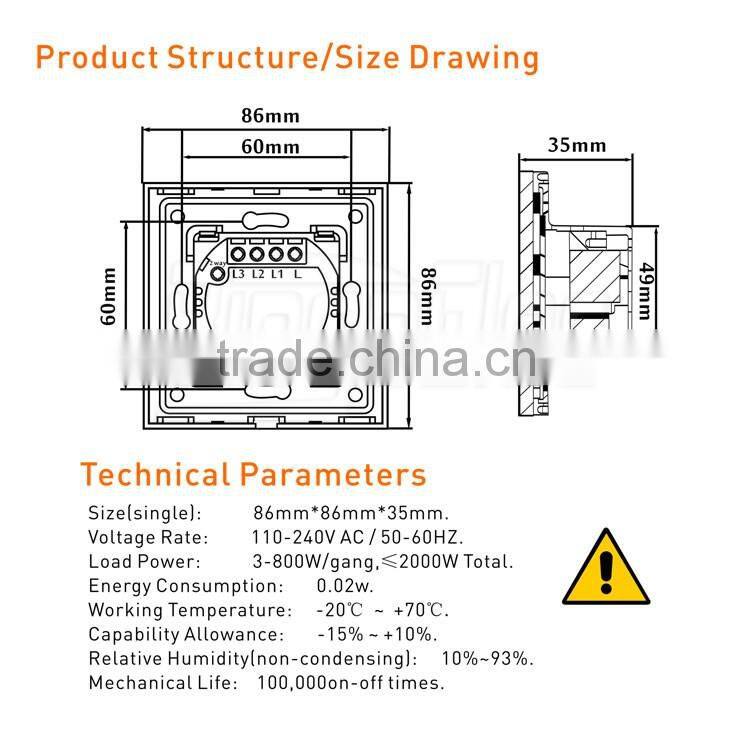

Size 86*86mm/80*80mm
Max. Current 16A
Max. Voltage 250V
Mechanical Life 100000times
Product Description
Product Name
2 gang tempered glass panel intelligent wall switch
Material
4mm toughened glass panel, 1.35mm iron frame and PC base
Load power
3-800W/gang, total 2000W
Work temperature
-20°C-70°C
Mechanical Life
100,000 on-off times
Panel size
86*86mm available
Capability allowance
-15%~+10%
Base
round base

Our Advantages

1.test shows that our switch can work well even under 97% humidity.
2.strong anti-interference ability,test shows that our switch still work well under 100% interference conditions.
3.Good antistatic performance,test shows that our switch can work well under 30KV high voltage static electricity conditions.
4. product itself low power consumption 0.02W.
5.Our touch switch has function of automatic recognition whether there is load or not. For 2gang and 3gang touch switch, if there is no load or the lamp cannot work for one terminal, this terminal will be no power ( led back light not on if you touch it. switch much stable, one lamp on or off will never cause the other lamps flash), this function is first in the touch switch industry.
6.Top-grade PC plastic material. Cannot fire(Fire-resistant).
7.Modular design.Can match freely with frame and function parts. Easier to install.

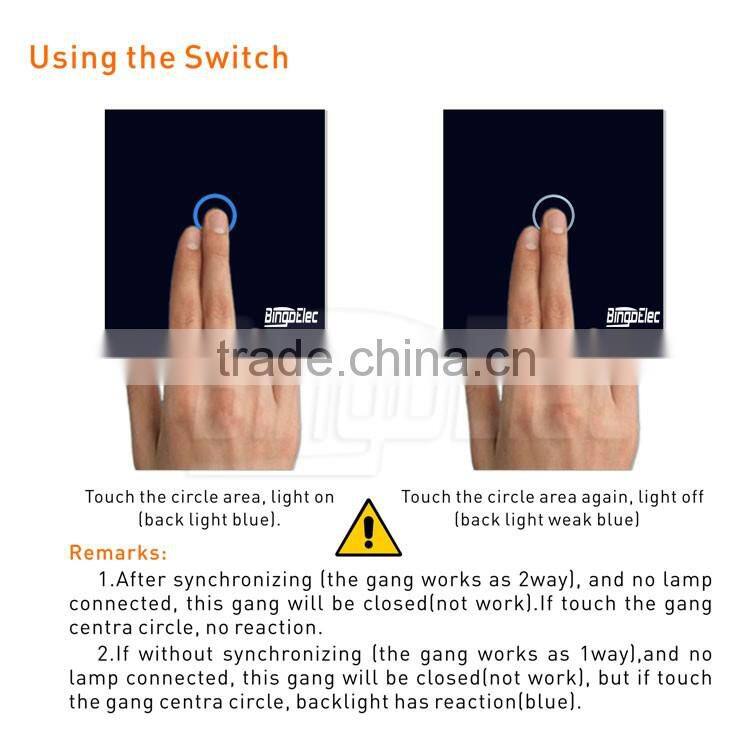

8.backlight: the circle has blue backlight when light on, and has weak blue light(visable in dark) when light off.
Products Show
Our Certifications
Our Company
Our Service

Small sample trial order welcome.

Can OEM logo printing on panel front .
