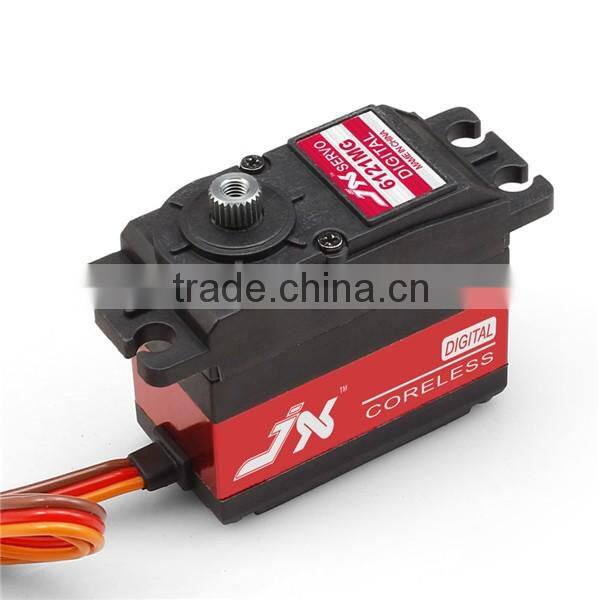

PDI-6121MG 21KG RC car CNC middle Shell Metal Gear Digital Coreless rc boat Servo motor
Feature:
-- High performance digital coreless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- CNC aluminium middle Shell
-- Dual ball bearings
1.PDI 6121MG Specifications:
Max Pulse Width: 900-2100us (Fit for remote control)
Max Degree:120°
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60°
Operating Speed (6V): 0.131sec/60°
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
2.PDI 6121MG-180 degree Specifications:
Max Pulse Width: 500-2500us (Fit for MCU)
Angel Range: 172±2°
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60°
Operating Speed (6V): 0.131sec/60°
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
This Type is DIY version, it's not fit for the starter.
3.PDI 6121MG-360 degree Specifications:
Max Pulse Width: 500-2500us, (0.5-2.5ms) when it at 1500us, it's stopped. (Fit for MCU and Remote Control)
Angel Range: 360°
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.152sec/60°
Operating Speed (6V): 0.131sec/60°
Stall Torque (4.8V): 17.21 kg.cm (239.03oz/in)
Stall Torque (6V): 21.06kg.cm (292.46oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
This Type is DIY version, it's not fit for the starter.It suit for DIY car.
For example, when you used for DIY car,
1500us stop or drag brake. outof 1500us it's forward or backward.
PDI-6221MG-360:1500us-500us CW,1500us-2500us CCW
PDI-6221MG+360:1500us-500us CCW,1500us-2500us CW.
