Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor

Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor thumbnail-1
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor thumbnail-2
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor thumbnail-3
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor thumbnail-4
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor photo-1
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor photo-2
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor photo-3
Fingerprint Door Lock Gear Motor 12mm 5v 70rpm dc Gear Motor photo-4
US$ 3 - 5 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
FF-N20 geared motor
Contact Supplier Request Quote Chat Now
Hangzhou Reacher Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number FF-N20 geared motor
Usage Home Appliance, Other, Home Appliance, door lock,camera,robot, smart home
Certification CE, ROHS
Type Micro Motor
Torque 50g.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Explosion-proof
Speed(RPM) 192rpm
Continuous Current(A) 180mA
Output Power 0.34w
Voltage(V) 5v
Efficiency Other, 25%



Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor











Specifications:

  • Certification: CE, ROHS
  • Type: Micro Motor
  • Torque: 50g.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Explosion-proof
  • Speed(RPM): 192rpm
  • Continuous Current(A): 180mA
  • Output Power: 0.34w
  • Voltage(V): 5v
  • Efficiency: 25%
  • Shell Material: Plastic
  • Gear Material: Powder metallurgy+plastic
  • Application: Automatic door lock
  • Voltage range: 3-12V
  • Speed range: 30-150 rpm
  • Reduction ratio: 1:210

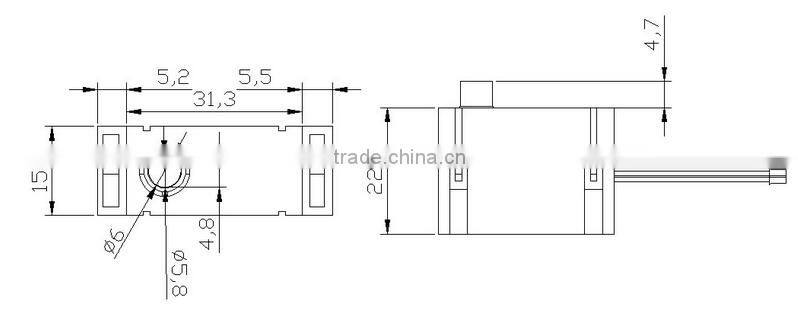

  • Dimension: 12*10*25(mm)

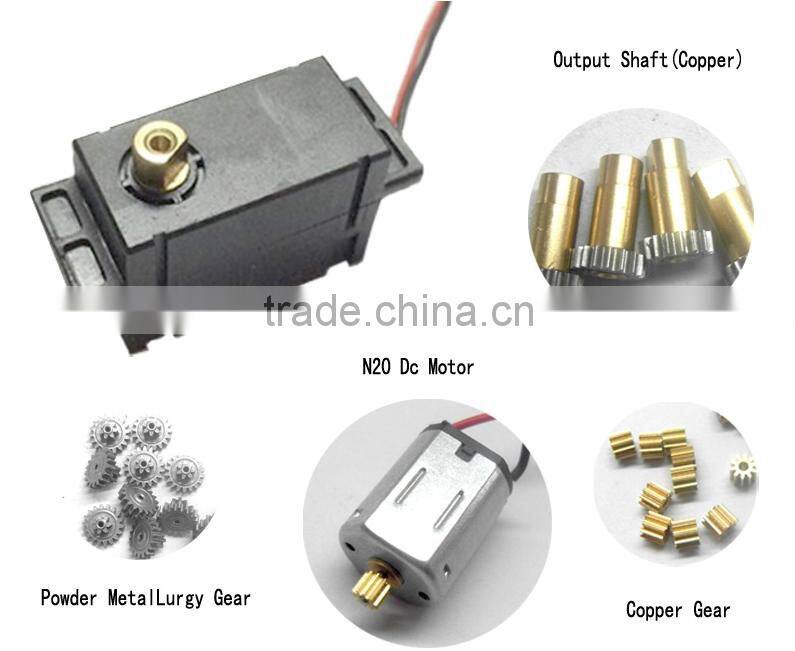

Product Show:

 Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor




Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor







Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor




Parameters of the model VOL TAGE NO LOAD AT MAXIMUM STARTING
NOMINAL SPEED CURRENT SPEEP CURRENT TOROUE OUTPUT CURRENT
(V) r/min mA r/min mA mN.m g.cm W mA
N20-06350 3 4800 20 2650 60 0.196 2 0.05 100
N20-08210 4.5 12500 35 10000 100 0.196 2 0.2 480
N20-09185 6 19500 60 17000 130 0.196 2 0.34 800
N20-08200 6 18000 50 15000 125 0.196 2 0.3 580
N20-08210 4.5 13000 35 10500     100 0.196 2 0.21 450
N20-1835 1.5 24000 200 17500 580 0.196 2 0.36 2500
N20-10155 3 12000 45 10000 130 0.196 2 0.2 560
N20-12120 3 15000 60 13000 180 0.196 2 0.27 980
N20-08230 3 8200 25 6200 90 0.196 2 0.13 450
N20-10145 4.5 18000 60 16500 150 0.196 2 0.34 950
N20-1385 2.4 17000 70 15000      235 0.196 2 0.3 1250
N20-10150 3 12200 50 10000 140 0.196 2 0.36 600
N20-10130 3 14000 55 11000 160 0.196 2 0.23 680

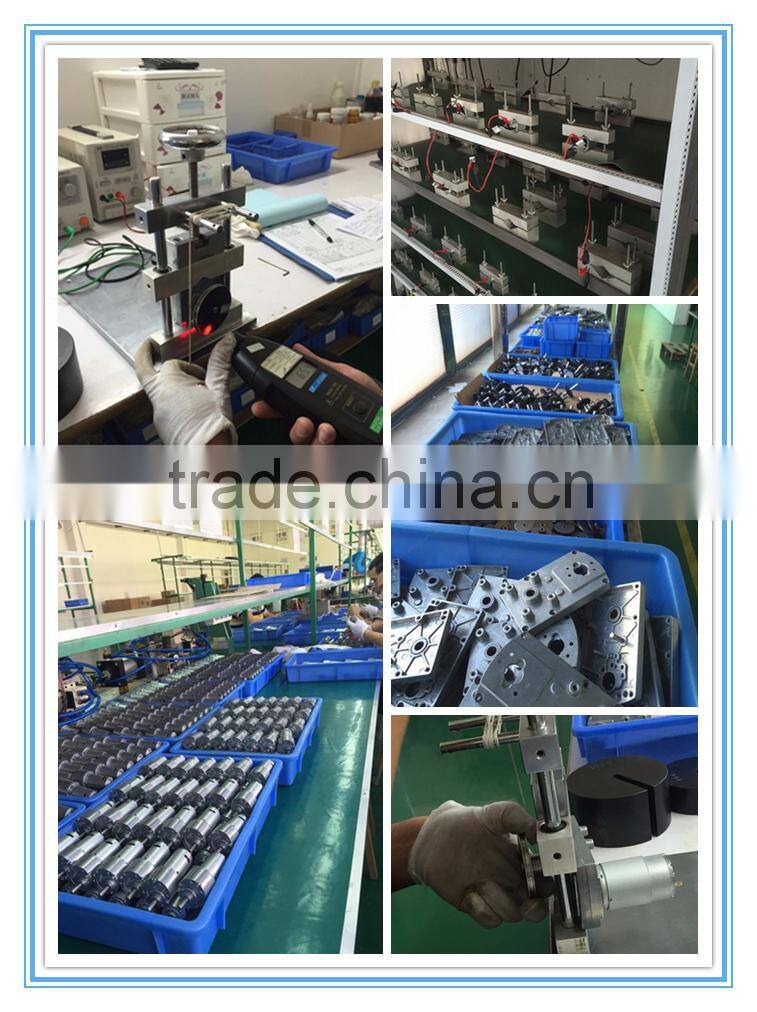

Company Workshop:
Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor

 Application:

Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor



Packing:




Certificate:

Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor
