Home > Products > RC Motor > High power rc jet plane 4074 D39.8*L74mm 4-Poles Inrunner Brushless Motor for 1:8 car
High power rc jet plane 4074 D39.8*L74mm 4-Poles Inrunner Brushless Motor for 1:8 car
USD $35 - $65
/ Piece
10 Pieces(Min.Order)
- 5000 Piece / Pieces per Month
- Shenzhen Port
- T/T Credit Card PayPal
You May Like
-
Fingerprint door lock gear motor 12mm 5v 70rpm dc gear motor
-
12N14P and 12N10P high speed design TR2834 2834mm 2-3s lipo 870-2650 KV Outrunner Brushless Motor
-
2-3S Lipo TR2837 2837mm 12N14P and 12N10P design for RC Plane Outrunner Brushless Motor
-
1050-3400kv 2-3 lipo 2830mm TR2830 12N14P and 12N10P design Outrunner Brushless Motor
-
2-3s lipo 1050-3950 kv TR2826 12N14P and 12N10P for high speed design Outrunner Brushless Motor
-
3s lipo 860kv 1050kv 12N14P design rc plane motor KD2217 2836mm Outrunner Brushless dc Motor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | SKF-4074 | Usage | Boat, Car | |
| Certification | CE, ROHS, Other, CE, ROHS, FCC | Type | Other, RC MOTOR | |
| Torque | Power(kw)*9550/rpm | Construction | Permanent Magnet | |
| Commutation | Brushless | Protect Feature | Waterproof | |
| Speed(RPM) | 1060-3513RPM/V | Continuous Current(A) | Max 51-169A | |
| Output Power | 1900-2400W | Voltage(V) | 12.3-36V | |
| Efficiency | IE 3 |
Product Description

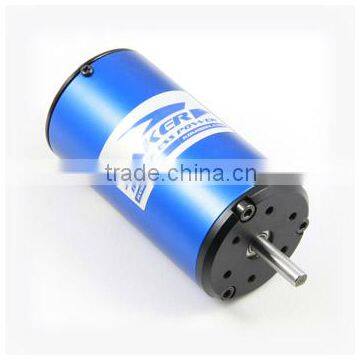

High power rc jet plane 4074 D39.8*L74mm 4-Poles Inrunner Brushless Motor for 1:8 car
SAKER SKF-4074 4-Poles Inrunner Brushless Motors
Extremely low temperature without additional heat sink can meet the vast majority of applications.
The most popular for boats & 1/8 cars
Motor Diameter: 40mm
Motor Length: 74mm
Shaft Diameter: 5.0mm
Shaft Length: 18mm
Weight: 413g
Mounting Hole Size: M3, pitch 25mm
Mounting Hole Depth: 6mm Max.
Product Parameters:
| Order Name | RPM/V | No-load Current (7.4V) | Max. Amps | Max volt (V) | Power (W) |
| SKF-4074/2D | 3513 | 6.0A | 169A | 14.2 | 2400 |
| SKF-4074/3D | 2364 | 3.8A | 114A | 21.2 | 2400 |
| SKF-4074/2Y | 2039 | 4.5A | 98A | 24.5 | 2400 |
| SKF-4074/4D | 1828 | 2.7A | 88A | 27.3 | 2400 |
| SKF-4074/3Y | 1391 | 3.0A | 67A | 36 | 2400 |
| SKF-4074/4Y | 1060 | 2.5A | 51A | 36 | 1900 |
We also have WCOOL40 - Water cooling for 40mm inrunner motor
If you need, please let us know, it need to buy separate.
Company Workshop:
Packing:
Certificate:
