120100 KV80 25KW 60kg thrust Outrunner sensored/sensorless Motor for jet board
Product Parameters:
Motor spec:
MOTOR: 120100
KV: 80
MAX POWER: 22000W-25000W
WIRE WINDS:
MAX AMP: 300A
ESC: 350 / 400A
MAX VOLT: 70v / 100v
NO LOAD CURRENT::(15V) 7A
RESISTANCE Mohm): 160
SIZE: 120 x 100 ( without shaft )
Stator: 60mm
WEIGHT (kg): 3.835
SHAFT: 12mm Accessory pack: Yes
Inside hall sensored ball
Internal PCB with 120 degree hall effect sensors
Testing report:
Testing propeller: 34*12
Testing esc: 22s 500A
Testing motor type: 120100 KV80
Testing current:
When load current at 27A , the thrust is 10KG
When load current at 67A, the thrust is 21KG
When load current at 110A, the thrust is 30kg
When load current at 180A, the thrust is 40kg
When load current at 250A, the thrust is 50kg

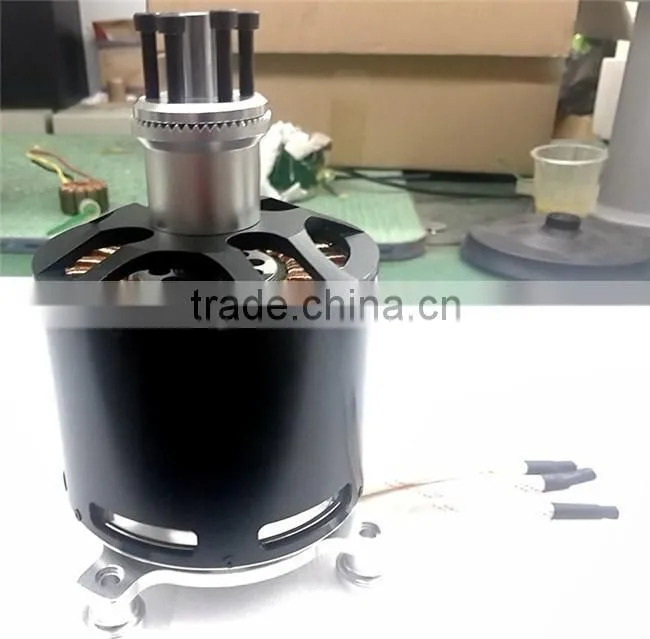

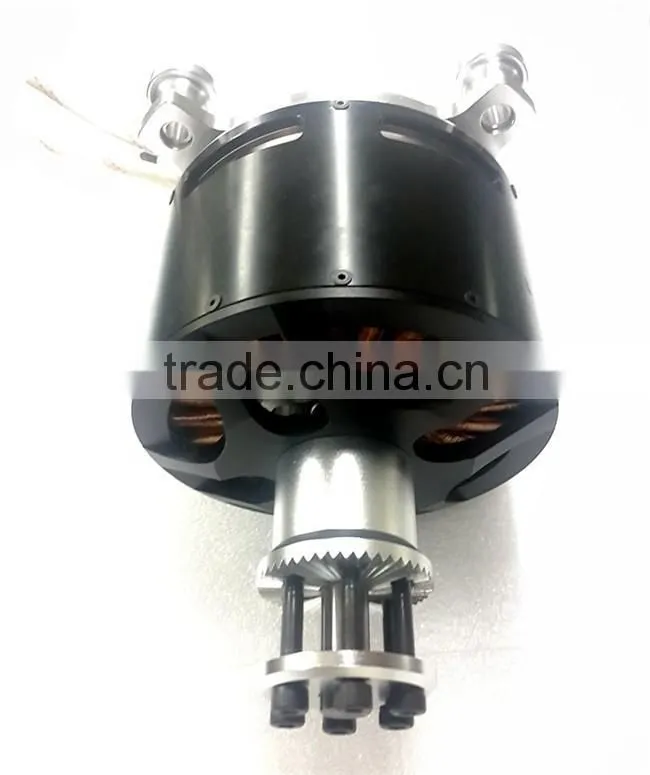

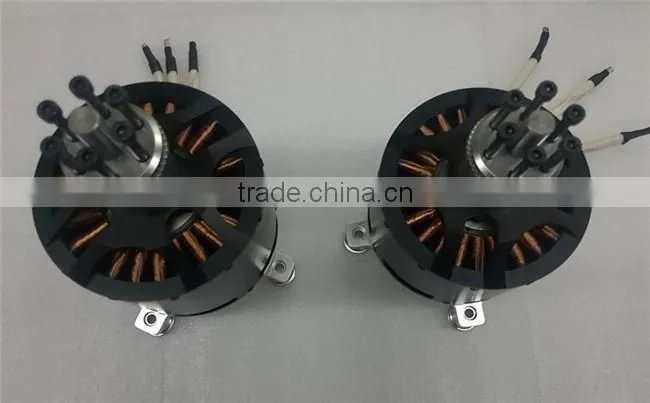

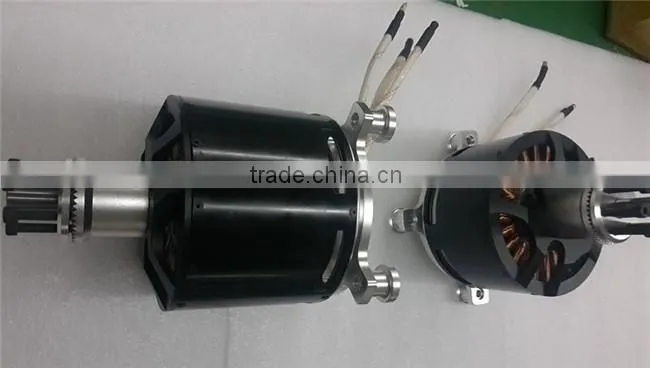

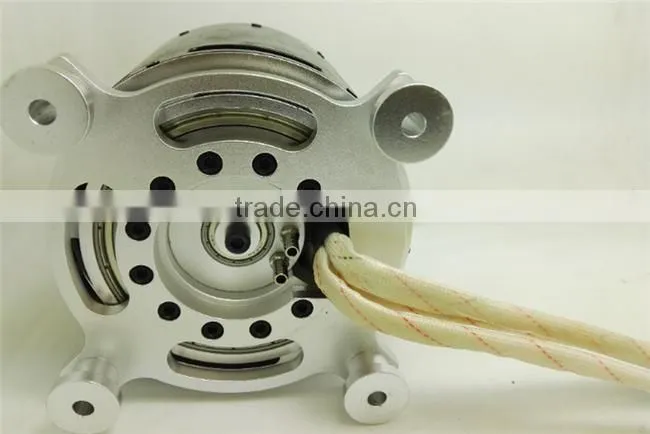

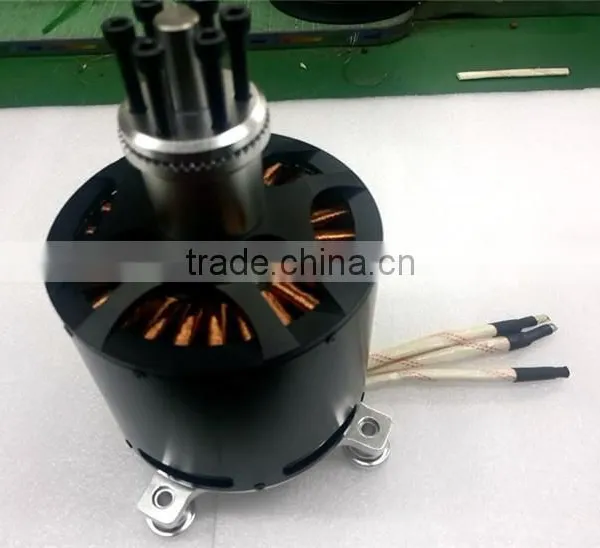

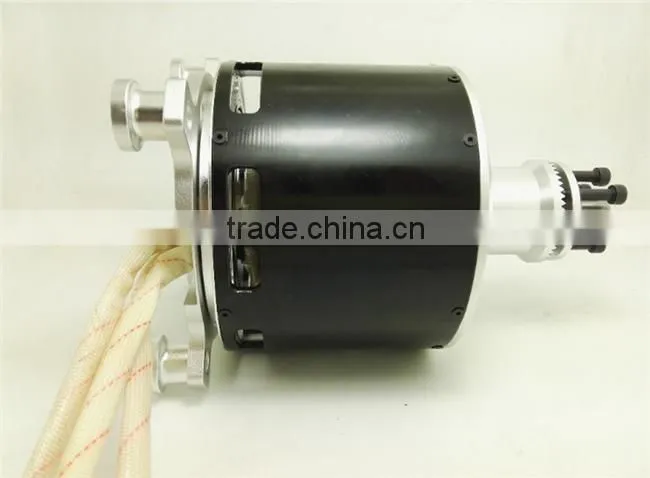

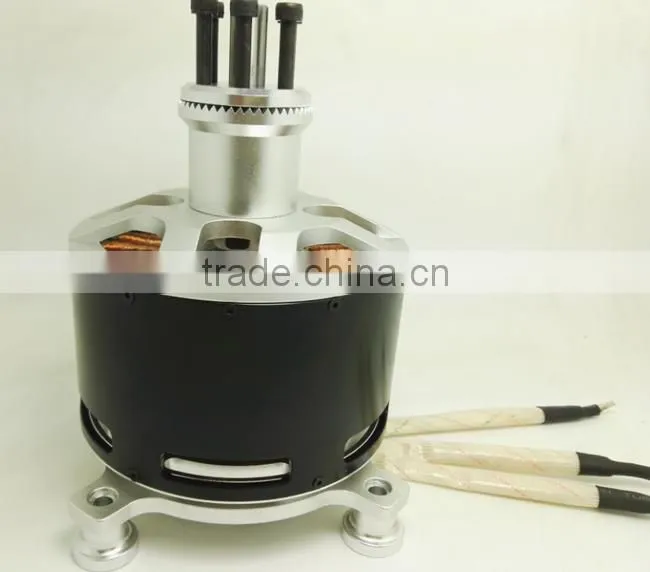

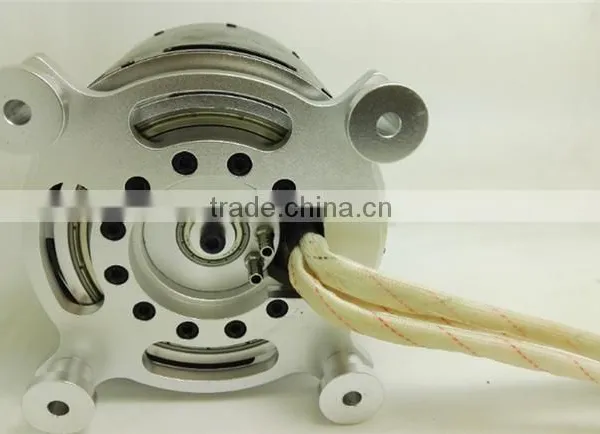

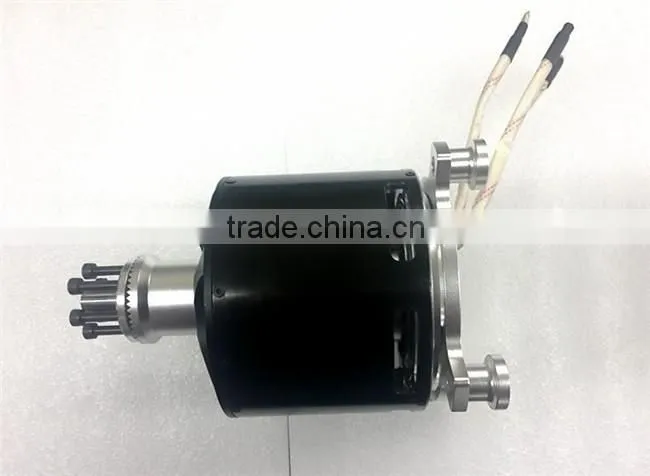

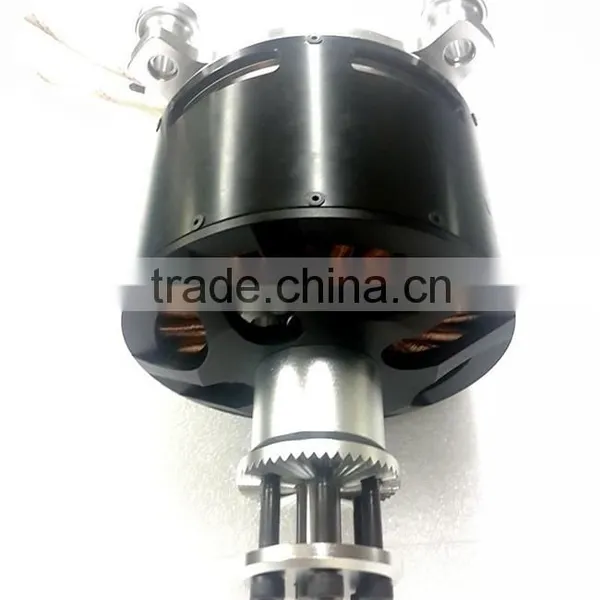

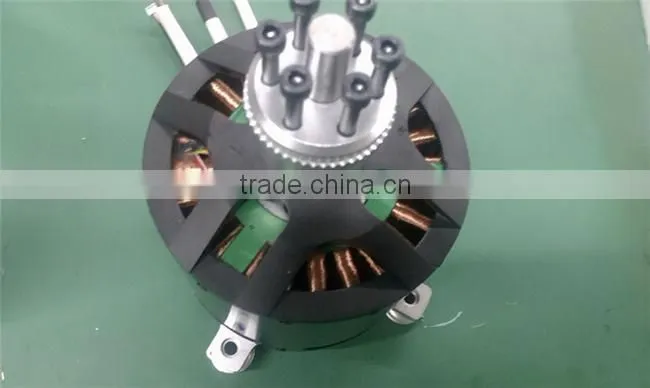

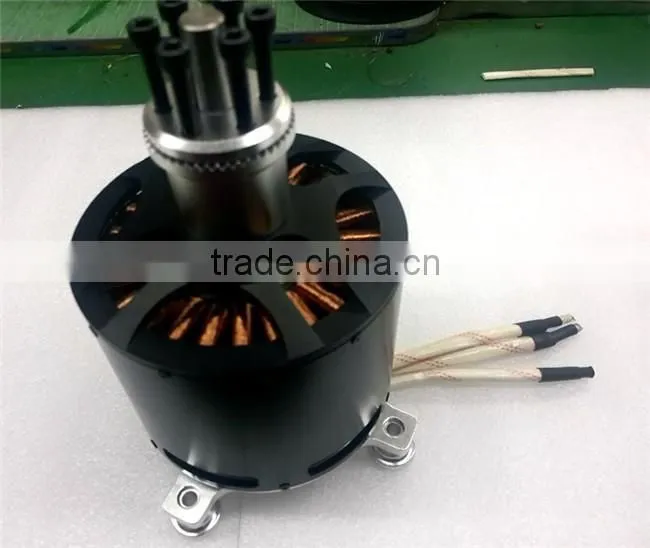

Product Show:
Company Workshop:
Packing:

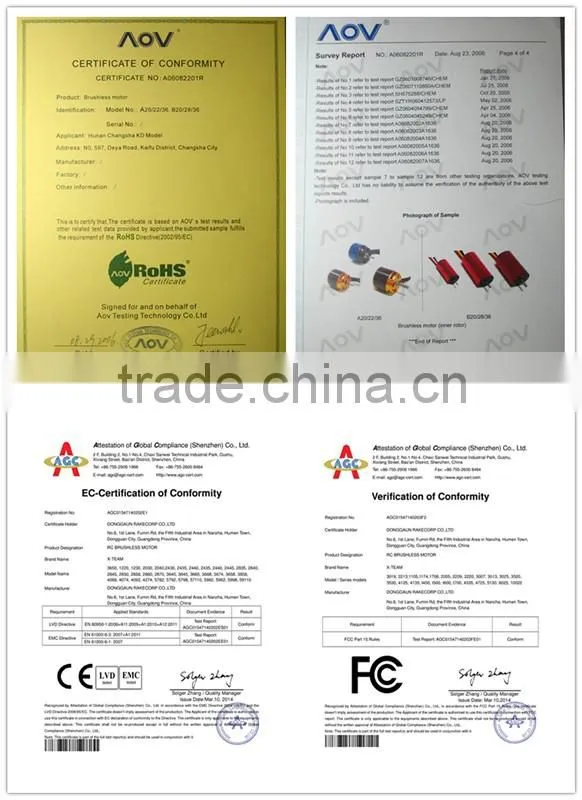

Certificate:
