Home > Industrial Equipment & Components > Power Transmission Parts > Gear > Scorpion S-1805-2250KV Motor for Aeroplane
US$ 1 - 39.99
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Use:
Other, Vehicles & Remote Control Toys
Place of Origin:
Guangdong, China
Brand Name:
Scorpion
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scorpion S-1804-1650KV Motor for AeroplaneUS$ 1 - 38.99MOQ: 10 Pieces -
New Coming Outrunner Brushless Motor 154 45KW Eletric Paramotor/ Paraglider MotorUS$ 750 - 999MOQ: 1 Piece
-
Water-cooled 6100w 10kg Thrust 8085 KV170 Sensored/sensorless MotorUS$ 95 - 200MOQ: 1 Piece
-
Super Torque Brushless 7000w 80kv 130kv 200A MotorUS$ 1 - 150MOQ: 1 Piece
-
15kw 40kg Thrust 12090 Brushless Motor for SurfboardUS$ 1 - 350MOQ: 1 Piece
Use
Other, Vehicles & Remote Control Toys
Place of Origin
Guangdong, China
Brand Name
Scorpion
Model Number
S-1805

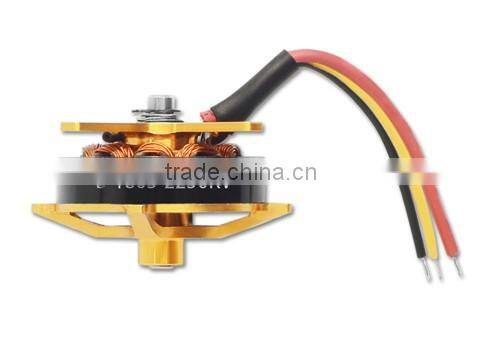

Scorpion S-1805-2250KV
With the new, smaller Scorpion S-1805 Slowfly motor, Scorpion completed the motor program in small ranged motors.
Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. The new S-18 series motors are designed in Germany by “mfly modellmotoren”. The mfly motors are one of the most popular and successful slowfly motors for indoor competitions. The result is the lightest contest motor that turns a 9” propeller with such a high efficiency.

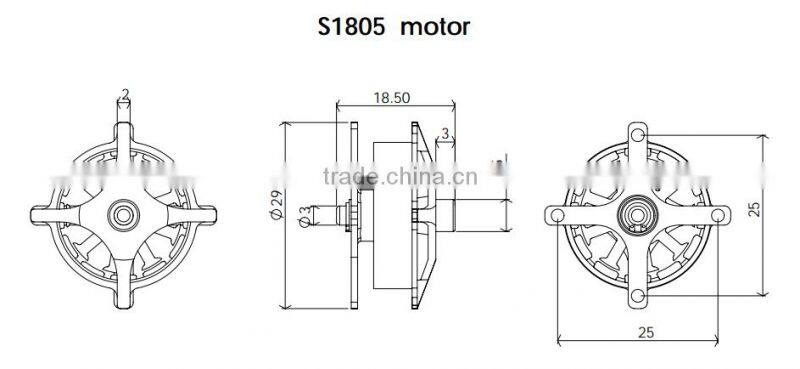

Technical Drawing:
Specifications:
| Stator Diameter | 18 mm (0.87 in) |
| Stator Thickness | 5 mm (0.197 in) |
| No. of Stator Arms | 9 |
| Magnet Poles | 12 |
| Motor Wind | 14 Turn Y |
| Motor Wire | 1 - Strand 0.425mm |
| Motor Kv | 2250KV RPM / Volt |
| No-Load Current (IO) | 0.25 Amps @ 6.5V |
| Motor Resistance (RM) | 0.4 Ohms |
| Max Continuous Current | 7 Amps |
| Max Continuous Power | 45 Watts |
| Weight | 16 Grams (0.56 oz) |
| Outside Diameter | 23 mm (0.9 in) |
| Shaft Diameter | 2.98 mm (0.17 in) |
| Body Length | 18 mm (0.71 in) |
| Overall Shaft Length | 21 mm (0.83 in) |
| Max Lipo Cell | 2s |
| Motor Timing | 20deg |
| Drive Frequency | 8kHz |
Included in the Box:
- 1 x Scorpion S-1805-2250KV Motor
- 2 x O-Ring
