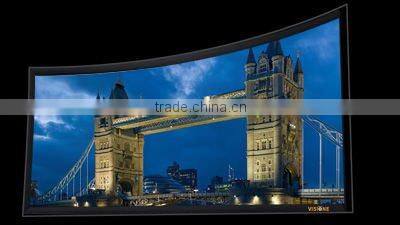

3d Curved Fixed Frame Screens

Specifications

Frame Screen

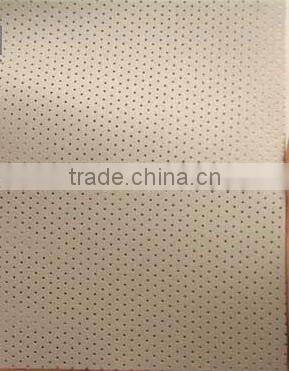

1. soft pvc or silver screen
2. aluminium frame
3. can be install on the wall
4. suitable for home, cinema etc.

Fixed Frame Screen

Main function:

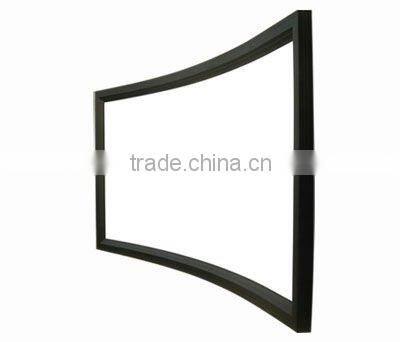

1. Self-developed frame shape, half semi-arc design, avoiding around the ambiguous problem during projection process.



2. Frame size can be choose 73mm or 100mm, Aluminum alloy case thickness 2mm, through tons of extrusion machine extrusion model, nearly pulls through 500kg alignment, then through 1000 degree high temperature molding.



3. Stick velvet on the frame surface, you can choose black or yellow color.



4. Four side embedded-in-one installation, ensure around uniform force, effective eliminate the traditional screen surface’s “V” type & water ripple, prefect screen present flat-panel like mirror.

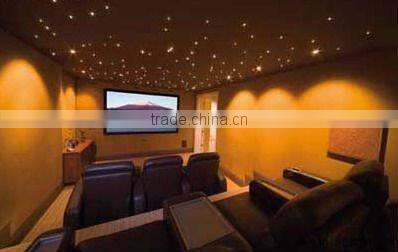

5.  Suitable used for different place, such as high quality home theatre, government agency, professional cinema etc.

Format	Diagonal  inch cm	Height×Width               inch        cm	Packing Size       L×W×H(cm)	G.W (KG)
4:03	72   183	43×57   110×145	1285*305*100	11.5
	84   213	50×67   127×170	1470*305*100	13.7
	100  254	60×80   152×203	1710*305*100	15.8
	120  305	72×96   183×244	2015*305*100	19.5
16:09	92   234	45×80   114×203	1335*305*100	14.2
	106  269	52×92   132×234	1510*305*100	17
	119  302	58×104   147×264	1680*305*100	19
	133  338	65×116   165×295	1870*305*100	20.5
	159  404	78×139   198×353	2055*305*100	25.5
