Scorpion MII-4010-400KV Motor for Multicopter
The MII-40 Series motor! This motor specially made for multi-copter. This motor provides all the power that you can use, while still maintaining excellent efficiency and higher power than any competition, perfectly balanced rotor. And the bearing has change to 4*11*4 since M-4010 version.
It suitable for two types of propeller which has space 12mm screw hole and 6mm & 8mm inner diameter.

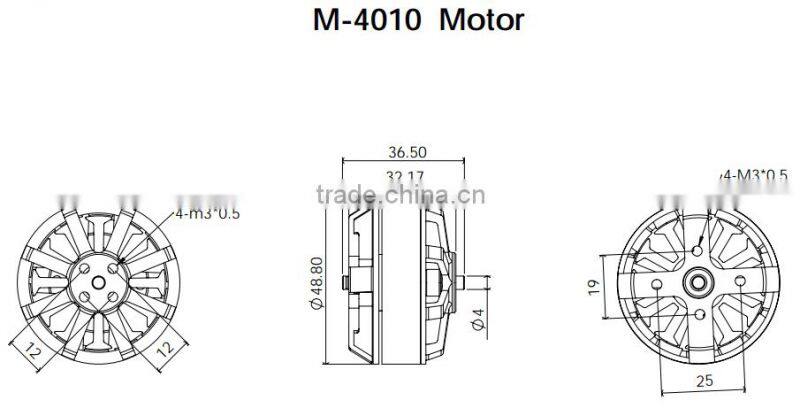

Technical Drawing:

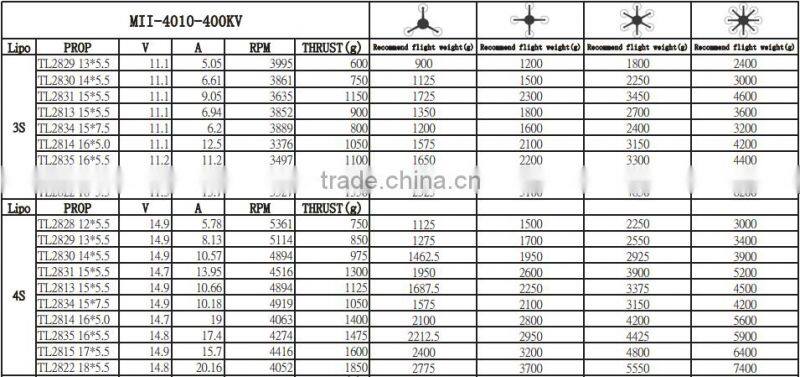

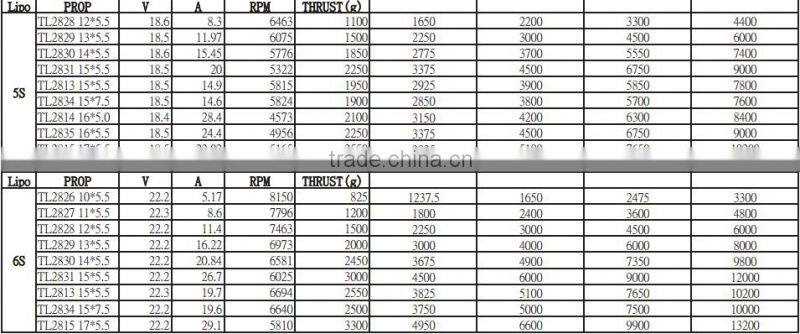

Data Chart:
Specifications:
| Stator Diameter | 40 mm(1.57 in) |
| Stator Thickness | 10 mm(0.39 in) |
| No.of stator Arms | 12 |
| No.of stator Poles | 14 |
| Motor Wind | 10 Turn Y |
| Motor Wire | 13-Strand 0.25 mm |
| Motor Kv | 400KV RPM/Volt |
| NO-Load Current(IO/10V) | 0.38 Amps |
| Motor Resistance(RM) | 0.135 Ohms |
| Max Continuous Current | 40 Amps |
| Max Continuous Power | 1480 Watts |
| Weight | 152 Grams (4.63 oz) |
| Outside Diameter | 48.8 mm (1.92 in) |
| Shaft Diameter | 3.98 mm (0.16 in) |
| Body Length | 32.17 mm (1.27 in) |
| Ovrall Shaft Length | 36.5 mm (1.44 in) |
| Max Lipo Cell | 10s |
| Peak Current | 56 Amps (2 seconds) |
| Peal Power | 2070 Watts (2 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz |
Weight including packaging:
- 250g
