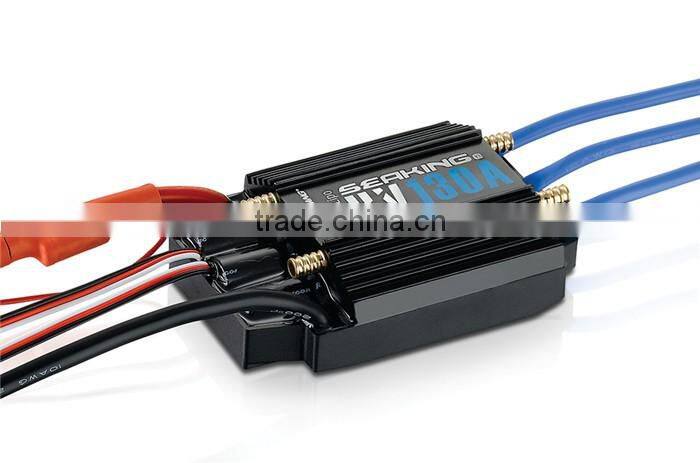

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Hangzhou Reacher Technology Co., Ltd.
Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat thumbnail-1
Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat photo-1
US$ 181 - 181 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Other, Vehicles & Remote Control Toys
Power:
Battery
Material:
Plastic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Vehicles & Remote Control Toys
Power Battery
Material Plastic
Plastic Type ABS
Scale Other, RC model
Radio Control Style RC Model
Place of Origin Guangdong, China
Brand Name Hobbywing
Model Number Seaking-130A-HV-V3



Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat



Product Description:



Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat



Performance & Reliability



Built with high-quality components and coupled with cutting-edge firmware, the Seaking 130A HV V3 is featured by unmatched performance and reliability.
Multiple safety adjustable options are in use, with the implementation of the low-voltage cutoff protection, thermal protection and throttle signal loss protection.



Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Efficient Cooling System



The Hobbywing patented heat-conductive copper bar cover on the power board of the Seaking 10A HV V3 can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum water cooled heat sink housing thus keeping your ESC as cool as possible.

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Waterproof Design



100% waterproof without the need of extra protection.

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Special Algorithm Design



The special algorithm implemented in the ESC make the acceleration more incredible and sailing more stable.

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Separate PRG/FAN Port



The separate PRG/FAN port on the ESC can connect ESC to a program box (via the trio-color programming cable) and start ESC programming.






Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat



Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat



Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat





Specification:



TypeBrushed/BrushlessBrushless
WaterproofWP
SpecificationsCont./Peak Current130A/720A
Input5-12S LiPo
15-36 Cells NiMH
BEC OutputNo
Size & WeightSize88.0x58.0x23.0mm
Weight182g
I.D./O.D. of the Water Cooling PipeΦ3.6/5.0 mm
Wires & ConnectorsInput WiresRed-10AWG-150mm*1
Black-10AWG-150mm*1
Output WiresBlue-12AWG-100mm*3
Input ConnectorsNo
Output ConnectorsNo
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programming viaTransmitterSupported
LED Program BoxSupported
LCD Program BoxNot Supported
WiFi ModuleNot Supported
Program PortSeparate Program Wire
FirmwareFirmware UpgradeNot Supported
ApplicationsBoat Length <150cm



Installation & Connection



Connect the ESC, motor, receiver, battery and servo according to the wiring diagram below (Picture 1/2). Three wires from the ESC to the motor have no polarity, so you can connect them freely. Please recheck all the connections and ensure they are correctly connected before proceeding to step 2. (And you may find it’s necessary to swap two wires if the motor runs in reverse.)

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for Boat

Hobbywing Seaking 130A HV V3 ESC 5-12S LiPo 15-36 Cells NiMH Water Proof Brushless Speed Controller for BoatFor safety, please always keep the propeller away from human body or any other objects.Red color input wire is positive pole, Black color input wire is negative pole.

1) Picture 1 is for Seaking-30A-V3, Seaking-60A-V3 and other ESCs that work with one LiPo battery pack; that is a wiring diagram with 1 battery pack.
2) Picture 2 is for Seaking-120A-V3, Seaking-180A-V3, Seaking-130A-HV-V3(without switch) and other ESCs that may work with two LiPo battery packs; that is the wiring diagram with 2 battery packs.
