Speed Controller 45A 5.0V 6.0V Adjustable/5A BEC Output 2-6S Lipo Gecko 45A SBEC 8A ESC

Speed controller 45A 5.0V 6.0V adjustable/5A BEC Output 2-6S Lipo Gecko 45A SBEC 8A ESC

Overview

      This is a high-quality, efficient brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a seperate receiver battery to power your servos and receivers, saving you weight and complication. GECKO series also include ESC OPPTO for giant flying. This series of ESC also features an exposed, finned heat sink aluminum case with lightweight plastic endcaps. Additional features include safe power arming along with advanced programmable, data logging system, low voltage cutoff, braking, timing, throttle input range, and more, making this series truly a pro series speed control.

      As the development of the electronic and popular demand of the market, our BEC has been specifically designed for extreme aerobatics and therefore has the capability to support the higher current applications to eliminate the possibility of unwanted shutdowns, and is also capable of supporting continuous simultaneous multiple servo operations typically found in CCPM equipped hardcore 3D E-helicopters.

Features:

1. Data logging system such as temperature, voltage, current, RPM
2. Advanced Governor Mode and soft start
3. Power arm protection, over-heat protection, low-voltage protection and lost-signal protection
4. Secondary sub-menu setting by LCD program card or PC interface
5. Firmware updating by PC interface
6.  Unique metal shape designing gives your new fashion visual impact.
7. Super smooth and accurate throttle linearity
8. Support and match with most of the motors, including high RPM motors
9. Programmable motor timing
10. Utilizes new smaller MOSFET technology to minimize weight
11. Finned heat sink
12. programmable throttle input range
13. Anti-spark circuit eliminates (HV OPTO version only)

Specifications:

Continuous Output: 45A
Burst Output: 65A
Battery: 5-18NC/2-6S Lipo

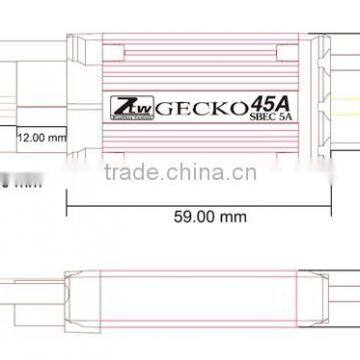

Length: 59mm
Width:  33mm
Height: 11.5mm
Weight: 58g


Package list:
1 * Original Gecko 45A SBEC 5A ESC
