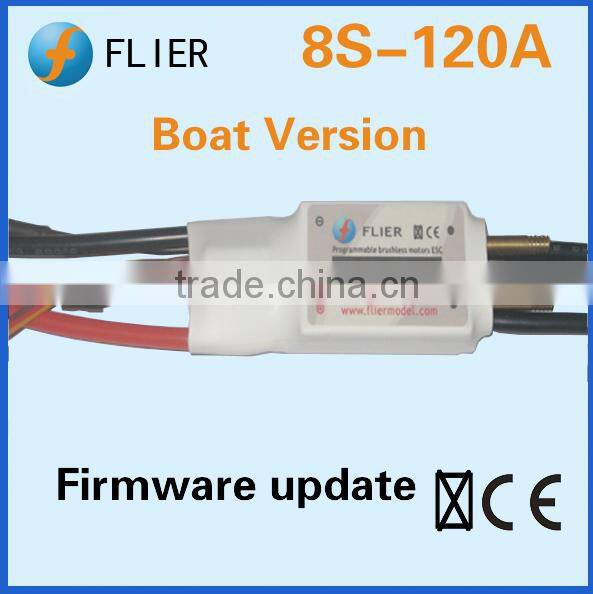

Flier brushless 8S 120A ESC for RC boat

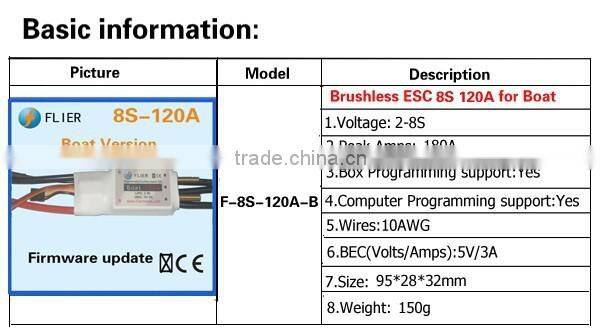

Specification:

• Model Number:Flier brushless 8S 120A ESC for RC boat+program box
• Application: Skateboard, Boat, Jetboard,Surfboard,Airplane,paramotor.
• Voltage: 2-8
• Peak Power: 120A
• Box Programme: Support
• Computer Programme: Support
• Wires: Dual 10AWG

• BEC: 5V3A
• Size: 95*28*32mm
• Weight: 150g

Feature:

1.Design for boat, more functions

2.Battery voltage from 7.2V to 28.8V

3.Two way communication while connecting it with computer.

4. Firmware can be upgraded by user.

5. Motor cable can be inspected while Connecting the power battery

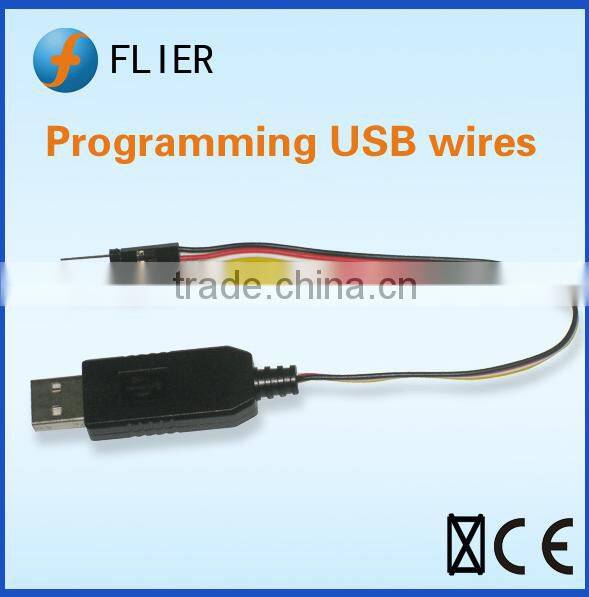

6.Simply set function value by Prog-Box or by PC via USB link wire.

7.Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.

8.Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V

9.Reverse function. the delay time of reverse is adjustable

10.The power of the motor forward/ reverse can be set.

11. Automatically detection the throttle route or can be set a fixed number by manual operation.

12.Auto cut off the power within 3 seconds if no radio signs.

13. Timing setting may be adjusted (0°-30°) to suit the motor type.

 Setting function value:

1. Reverse: On/Off.

2. Timing:0°,1°,2°,3°,4°……30°.

3. Frequency: 8KHz, 16 KHz, 32 KHz.

4. Acceleration:  Soft / Medium / Hard.

5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.

6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.

7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.

8. LiIo/Pol  CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.

9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V

10. Cut Off  Type::Slow down,Hard. l

11. Power limited forward: Off, 75%, 50%, 25%.

12. Power limited reverse: Off, 75%, 50%, 25%.

13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.

14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.

15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.

16. Throttle curve: Logarithmical,Linear,Exponential.

17. Rotation direction: Left, Right.

18. Timing monitor (TIMING MONTITOR): ON, Off.

 Note:the red mark is the factory default value,you can setting function value by youself.

Package list:

1 *Flier brushless 8S 120A ESC for RC boat
