Hydroponics Grow Room Duct Inline Fan 5"

Hydroponics Grow Room Duct Inline Fan 5" thumbnail-1
Hydroponics Grow Room Duct Inline Fan 5" photo-1
US$ 17 - 18 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Orientrise
Model Number:
ORDIF5
Contact Supplier Request Quote Chat Now
Quanzhou Orientrise Horticulture Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Orientrise
Model Number ORDIF5
Frame Material Plastic
Plastic Type Polyresin
Frame Finishing Powder Coated
Pressure Treated Wood Type Heat Treated
Feature Easily Assembled, Eco Friendly, Renewable Sources

 Hydroponics grow room duct inline fan 4"



Main Feature

  • The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
  • Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
  • Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
  • IP44 Protection class, waterproof and dustproof more effective.
  • Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
  • Run the ambient temperature range: -20°C~60°C.

Performance Parameter

Model Gear Voltage/Frequency Current Power Speed Weight Air Flow Air Pressure Avg. dBA@3m
(Amps) (W) (RPM) (Kg) (M3/H) (Pa) (db)
ORDIF4 H 230V/50Hz 0.12 26 2200 2.0 198 156 31
L 0.11 23 1850 165 131 26
H 115V/60Hz 0.26 30 2200 198 156 31
L 0.24 28 1850 165 131 26
ORDIF5 H 230V/50Hz 0.14 33 2250 1.8 284 159 31
L 0.13 28 1850 248 106 26
H 115V/60Hz 0.30 32 2250 284 159 31
L 0.26 27 1850 248 106 26
ORDIF6 H 230V/50Hz 0.24 54 2550 2.7 530 300 33
L 0.21 48 1850 410 240 29
H 115V/60Hz 0.58 65 2550 530 300 33
L 0.49 53 1850 410 240 29
ORDIF8 H 230V/50Hz 0.57 128 2450 4.9 840 352 63
L 0.52 123 1950 690 274 55
H 115V/60Hz 1.41 162 2450 840 352 63
L 1.28 146 1950 690 274

55

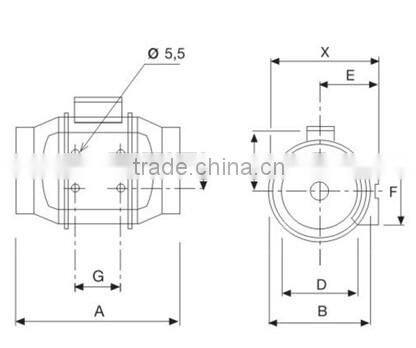

 Dimension Explain



Hydroponics grow room duct inline fan 5"

Model X A øB C øD E F G H
ORDIF4 188 303 176 115 97 100 90 80 60
ORDIF5 188 258 176 115 123 100 90 80 60
ORDIF6 212 320 200 127 147 112 130 80 60
ORDIF8 232.5 302 217 141 197 124 140 100 94

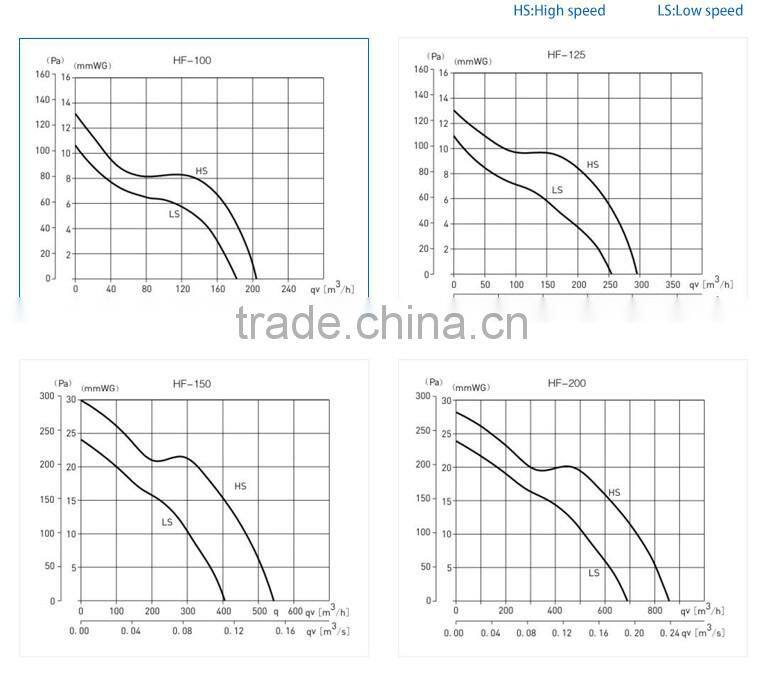

Performance Curves

qv: Air volume in m3/h and m3/s.

psf : Static pressure in mmWG and Pa.

Dry air at 20°C and 760mmHg.

Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.

Hydroponics grow room duct inline fan 5"

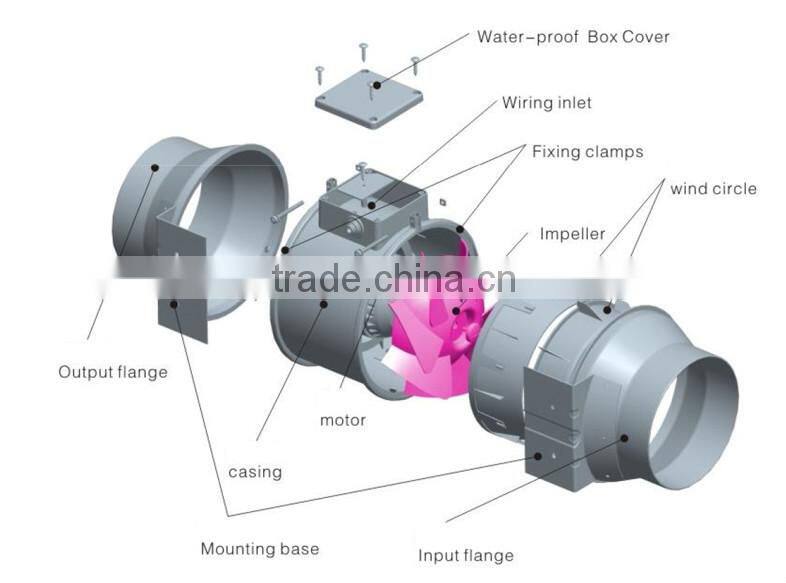

Fan construction



Hydroponics grow room duct inline fan 5"
