THE ONLY OWNER OF PERMANENT BRAND WELDING WIRE

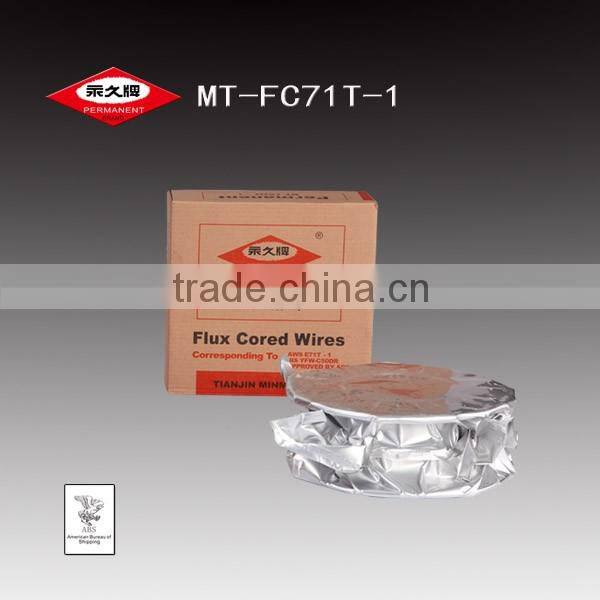

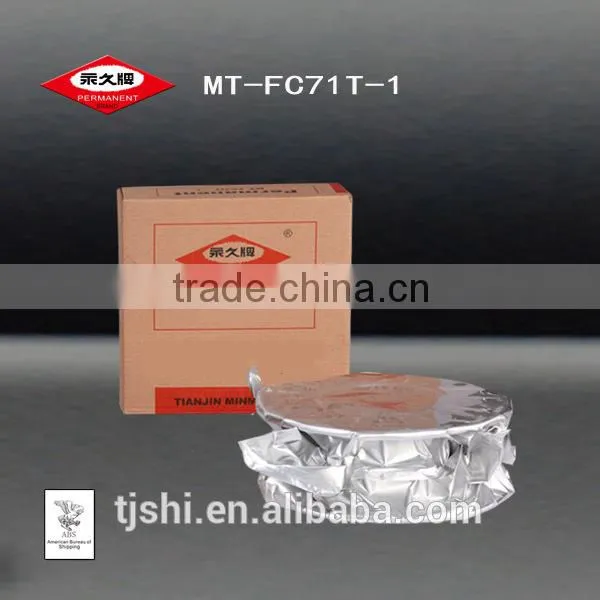

PERMANENT BRAND WELDING WIRE CO2 FLUX CORED WIRES MT-FC71T-1 AWS E71T-1
Speciality:
1. First Chinese export brand with 57 years’history.
2. First to obtain the shipping societies’approval: ABS, BV, CCS, DNV, GL, LR,CE,TUV AND DB
3. Sales to more than 50 countries and areas.
4. Only supply to overseas market according to the international standards.
Oem and small quantity orders are welcome.
5. Raw materials, production line and inspection instruments imported from abroad.
Feature:
Brand: PERMANENT
Certificate: ABS
Package:In cartons of 15kgs net each.
Sample: free
Description:
MT-FC71T-1 is of oxide of titanium type slag kind CO2 flux cored wires for all positions welding inclusive of vertical down. The arc is stable with little spatter. The welds have smooth appearance. The slag is easy to remove and smoke little. It has excellent welding technological performances.
Applications:
For welding Iow carbon steel and 50kg/mm2 class high tensile steel. It is
widely used for welding structures of ships, bridges, buildings, stored
tanks and steel beams etc.
Note on usage:
1. Strictly control the content of impurities in CO2 , guarantee the purity of CO2.
2. The flow of CO2 is normally 20-251/min, when welding.
3. The outer length of wire should be controlled within 15-25mm.
Typical Chemical Composition Of Weld Metal (%)
|
C |
Mn |
Si |
S |
P |
AWS STANDARD |
≤0.18 |
≤1. 75 |
≤0. 90 |
≤0.03 |
≤0.03 |
TYPICAL |
0.07 |
1. 25 |
0. 36 |
0.010 |
0.017 |
Typical Mechanical Properties Of Weld Metal
|
Tensile Strength |
Yield Strength |
Elongation(%) |
Charpy V Impact |
AWS STANDARD |
≥480 |
≥400 |
≥22 |
≥27 |
TYPICAL |
570 |
490 |
28 |
90 |
Our certificates

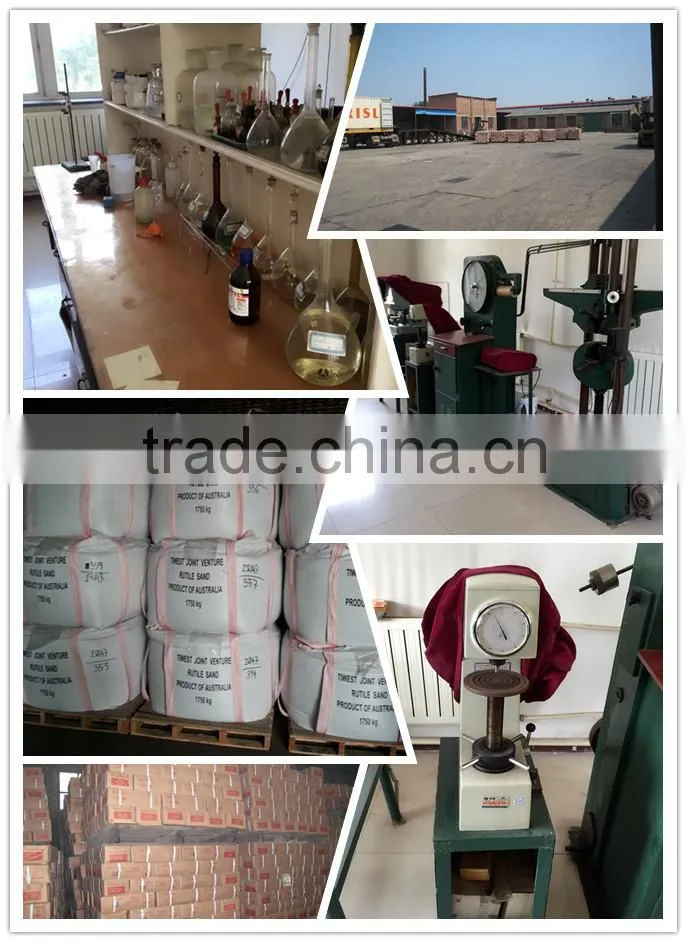

Detailed images

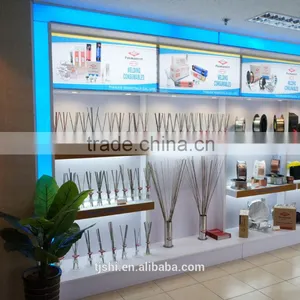

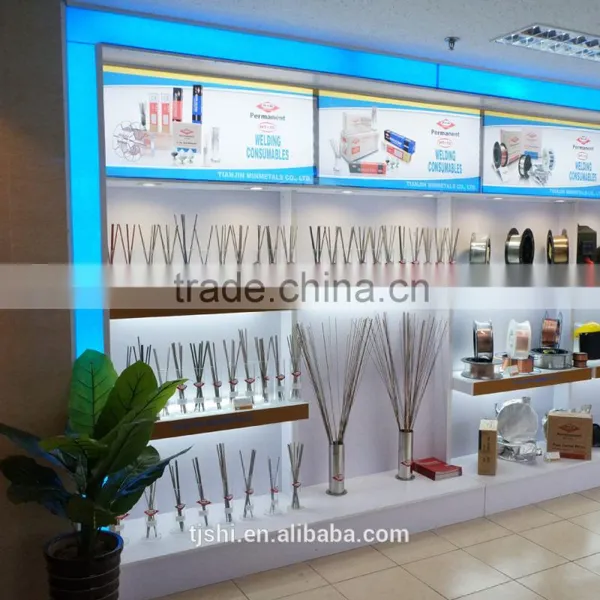

Fair show
Contact us!
Tel:(86) 022-28243768/28248804
Fax:(86) 022-28248824
