The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010

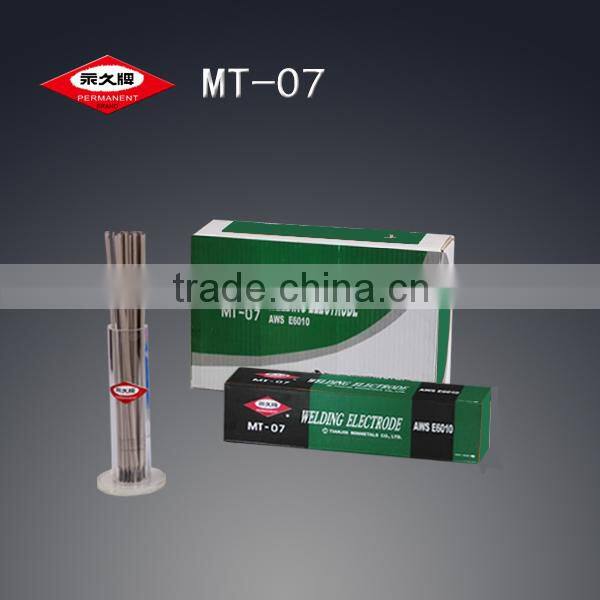

The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010 photo-1
The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010 photo-2
The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010 photo-3
The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010 photo-4
US$ 500 - 540 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
PERMANENT
Model Number:
AWS E6013
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Tianjin, China
Brand Name PERMANENT
Model Number AWS E6013
Material Other, MILD STEEL
Length 300MM-400MM
Operating Current PLS REFER CATALOGUE
Welding Current PLS REFER CATALOGUE
Operating Temperature PLS REFER CATALOGUE
Diameter 2.0MM-5.0MM
Application GENERAL PURPOSE



The Only Owner Of Permanent Brand Welding Electrode



PERMANENT BRAND WELDING ELECTRODE MT-07

Speciality:

 1. First Chinese export brand with 57 years’history.

 2. First to obtain the shipping societies’approval: ABS, BV, CCS, DNV, GL,  LR,CE,TUV AND DB

3. Sales to more than 50 countries and areas.

4. Only supply to overseas market according to the international standards.

Oem and small quantity orders are welcome.

5. Raw materials, production line and inspection instruments imported from abroad.

Feature:

Brand: PERMANENT,MT-07

Package: packaging can be changed according to your needs.

Sample: free

The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010



Description:

MT-07 is a high cellulose sodium type carbon steel welding electrode for vertical down welding. It show a very good performance in welding of all positions, especially vertical-down welding. The welding performances are excellent: deep penetration, fewer slag, slag easy to remove, high welding efficiency and good weld shape etc.The electrode forms double sides by one side welding.

Applications:

Suitable for welding root passes, hot passer, filler and cover passes as well as for capping of general pipes and similar structures.

 Packing:In cartons of 20kgs net each, consisting of 8boxes x 2. 5kgs for size 2. 5mm and 4boxes×5kgs for other sizes.

Chemical Composition of Weld Metal (%)



C

Mn

Si

S

P

AWS Standard

N. S.

N. S.

N. S.

≤0. 035

≤0. 040

Typical

0. 091

0. 55

0. 18

0. 013

0. 01

Mechanical Properties of Weld Metal



Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation(%)

CharpyV Impact
Value (-30°C)

AWS Standard

≥330

≥420

≥22

≥27J

Typical

405

500

28

96J





Our certificates

The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010









Detailed images

   Fair show

 The Only Owner Of Permanent Brand Free Sample HIGH CELLULOSE SODIUM LOW HYDROGEN TYPE WELDING ELECTRODE MT-07 E6010

   WHY US



  1.Integrated industrial and trade enterprise

  2.58years history

  3.First Chinese welding consumables supplier to overseas market

  4.The vice chairman unit of the china welding association

  5. Approval: ISO DB TUV CE ABS BV CCS DNV GL LR NK

  6.overseasb ranches: AUSTRALIA, ECUADOR, JORDAN  AND SIR LANKA
