2.0MP Medical micro USB interface Android OTG Endoscope waterproof 8 mm Medical high-definition digital endoscope

2.0MP Medical micro USB interface Android OTG Endoscope waterproof 8 mm Medical high-definition digital endoscope

Product Brief Description:

  FUNCTIONS AND APPLICATIONS

The USB digital endoscope is a new electronic product. It is a tubular imaging system consisting of an optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit connected to a computer. You can display the images captured by the USB digital endoscope on the computer screen, store them on the computer, print them, or send them over the Internet.Silver exterior - rear focusing, ultra high-definition digital microscope, optical digital zoom + 1-300 tail manual focus zoom, zoom + see infinity. Can be used as PC camera, digital microscopes, intraoral camera, detect mirror jewelry, personal care products a machine.

If you are an user of the MAC system please

If you are an user of the MAC system please click on the ‘Photo Booth’ to open the image window and click on the ‘camera’ on the top line of your screen and click on the USB 2.0 Camera. The image will be captured by the scope.
For Windows users:

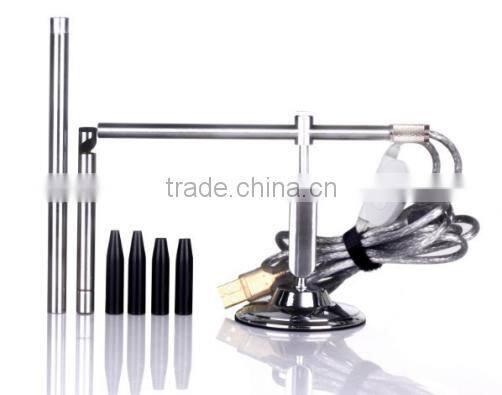

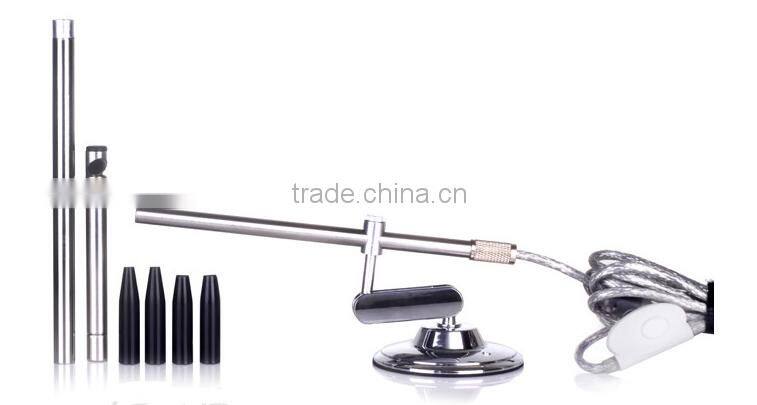

To avoid mistake in the set up process, please strictly follow these steps:Take out of the parts of the stand and assemble the stand according the photo on the right. And input pen microscope into the holding hole on the top of the stand.

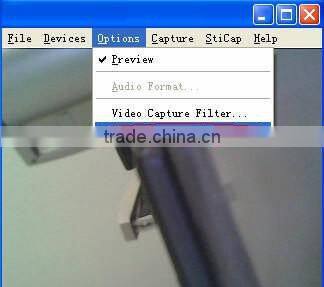

Place the included CD into the CD-ROM drive. Find the icon of ‘AMCAP’. Copy the ‘amca’ to your PC. Just copy but never try to install it. Plug the USB PEN MICROSCOPE into the USB port, and double click on the icon of ‘AMCAP’ to open the image window. Rotate the dial on the USB cable to control the brightness of the LED on the USB PEN MICROSCOPE. After a short while you should see the image captured by the USB digital endoscope on the computer monitor. Click on ‘OPTIONS’ and click on ‘VIDEO CAPTURE PIN’. Click one of image window size in the drop-down menu and click on ‘OK’ to confirm. See below photos:

FOCUSING

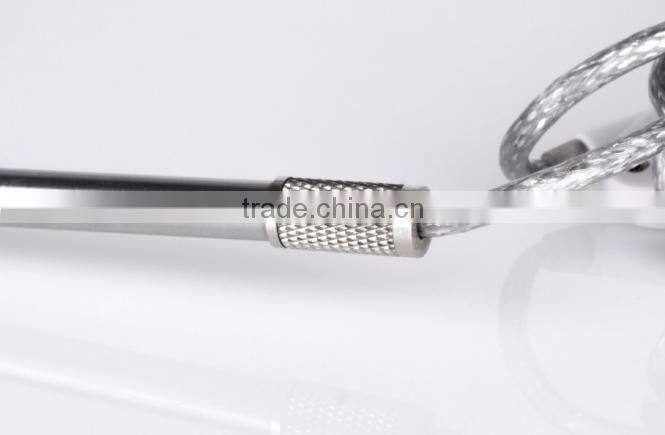

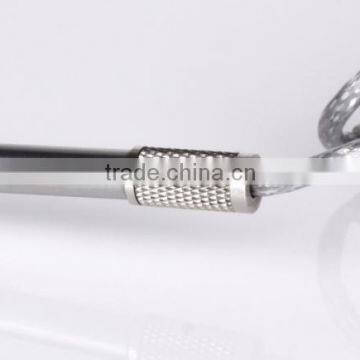

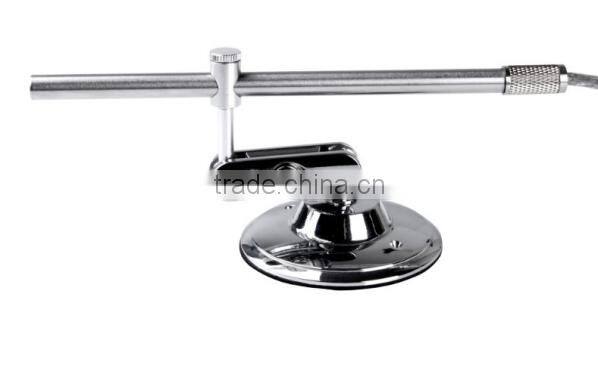

The focus distance can be adjustable by turning the knob of the pen microscope (see below photos). And the pen microscope can be move up and down by turning the pillar (see left photo) for getting larger photo area or maller photo area.

TAKE PHOTOS
Click on ‘option’ on the top of image window.
Then click on ‘high resolution’ in the drop-down menu to make sure there is a tick mark here.
Close the drop-down menu.
Push down the button of the dimmer that located on the USB cable to freeze an image.
Or click ‘snap’ on the top of image window to take a photo.
The photos you have taken will be saved in the computer and display an icon on the screen.
If your system could not freeze an image please follow steps to make it works:

1. click on ‘file’ that is on the top of image window.
2. click on the ‘set photo folder’
3. designate the folder you want to save the photos
4. click OK to confirm

MORE WAYS TAKING PHOTOS
Click on ‘option’ on the top of image window.
Then click on ‘ high resolution’ in the drop-down menu to make sure there is no tick mark here.
Close the drop-down menu. Now you get below functions: IMAGE FREEZ
Please rap the space bar for freezing an image.
If you want to save this image you can rap the return key for saving the image as a photo.
Rap the space bar again to activate the image window. TIMING SNAP
Rap the F5 key to arouse a timing snap.
The snap will be delayed 10 seconds after the key was rapped company with beep per second.
If you could not get a clear photo by push down the snap button the timing snap may be a help.

RETURN KEY SNAP
Just rap return key to take a photo.

WARNING
The top line of the image window will be blue color while it works properly. It will be changed into light blue when user operates on background and the snap function will be lost during this color.
Just click any where inside of the image window to change it back to blue.

LED Light Adjustment

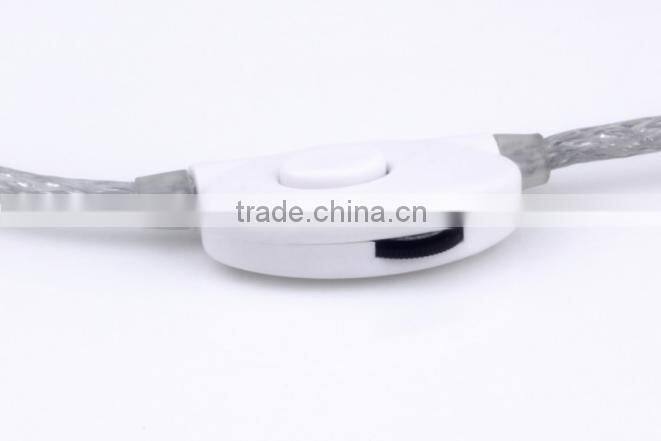

There is a LED light dimmer on the USB cable. User turn the dimmer can adjust the light power to a proper level according the demand of observation.

MOVIE RECORD
For taking a video:
1. click on ‘video capture’
2. click on ‘Set Time Limit’ and input how many seconds the video you want to take and tick the ‘use time limit’
3. click on the ‘capture’ again 4, click on ‘start capture’
5. click on ‘OK’ to start a record The video will be taken and stopped automatically when time out.
The video is an AVI format.
User may move the AVI file to any folder like other documents. REFLECTOR
The reflector always comes with the focusing ring and it adjust focus same way with the other function parts. The focusing distance can be 5mm to infinity. For use on the teeth checking it should be focused on any surface that is at the distance of 5 to 15mm far from the reflector before it be used for teeth checking.

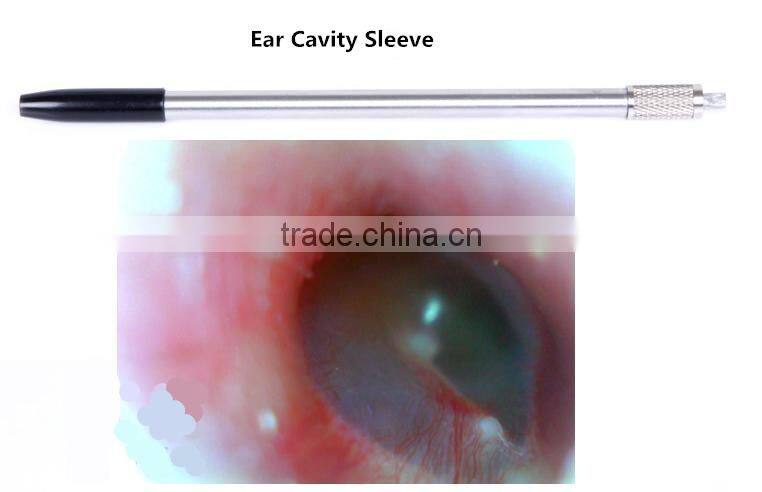

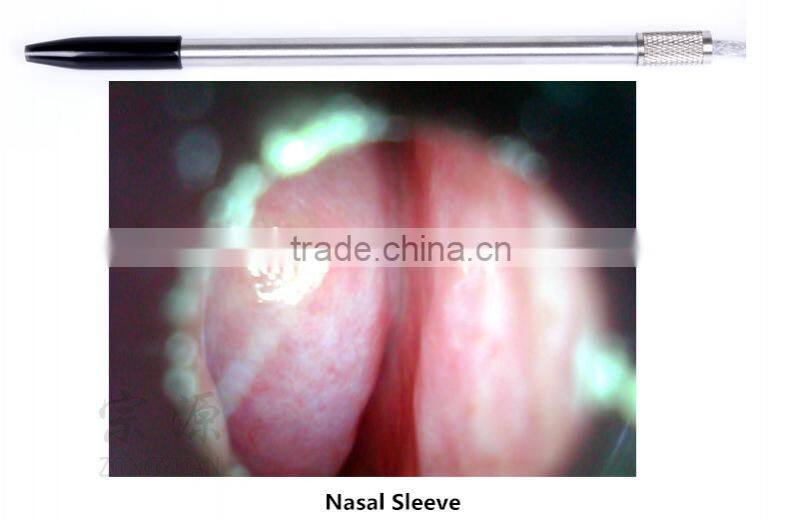

Multi-function waterproof can manage In the multi-tube in the same way the focus ring to adjust the focus, Focusing on checking for printed materials for each part Or flat surface. The advantage of using the multi-tube can save You need to constantly adjust the focus, when you use the pen Camera View Part or flat surface material, and a constantly moving Camera. By attaching a multifunctional digital endoscope, you can Press the tube on the surface of the material, you want to see and So it is always a constant distance between the lens of the endoscope and materials. Waterproof casing feature allows for gynecology, anorectal and other human superficial cavity examination, stainless steel material temperature to facilitate disinfection.
